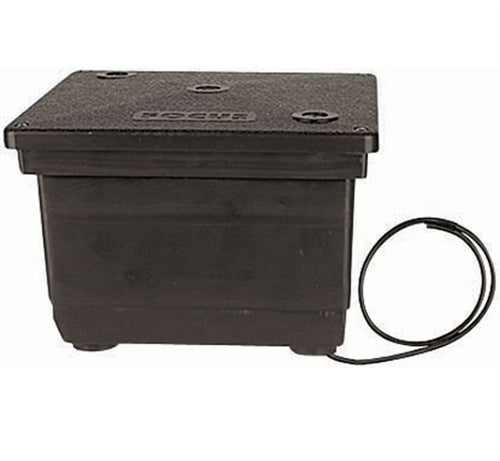

Focus Industries DBS97JB Direct Burial Junction Box, 9" x 9" x 7"
Focus Industries DBS97JB Direct Burial Junction Box, 9" x 9" x 7"
Regular price
Price:
$98.04
Regular price
Price:
Sale price
$98.04
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
- Bronze high temperature fiberglass reinforced composite box and cover (heavy duty)
- Nema 12: below grade enclosure for direct burial applications
- UL 1838 and UL 1598 certified
- 1/2" NPS & 3/4" NPS bottom hubs for line voltage input & feed through. Ships standard with 2x 1/2" NPS holes; one open one plugged
- 1/2" NPS hubs on cover for fixture and or photocell mounting (consult factory for details)
- Neoprene sponge gasket to keep enclosure dry, for DBR-55-JB O-RING: High temperature red silicone
- DBS-12-8JB & DBS-97-JB Covers secured with #10 3/4" Flat head stainless steel Phillips screws, DBS-66-JB, DBR-79-JB & DBR-55-JB Covers secured with 10-24 X 3/4" Flat head stainless steel Phillips screws
- Beveled Top to allow for drainage
- 3 year warranty
- All Direct Burial Junction boxes must be accessible for servicing. Install at highest grade to allow water to run off. Usually 1/2” or 1” higher than grade
- Must be installed away from standing water
