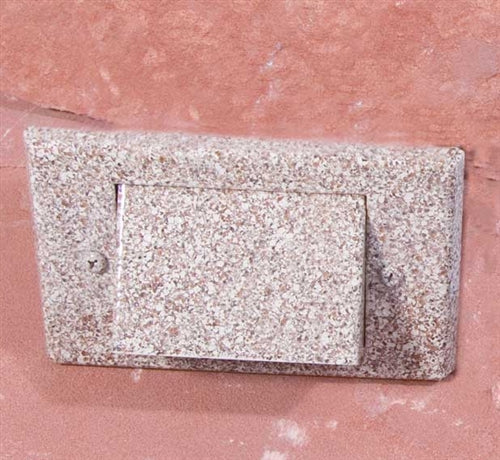

Focus Industries SL-02-1L-LEDP-WTX 12V 4W LED flat panel 1 Louver Step Light, White Texture Finish

CONSTRUCTION: Stamped aluminum step/brick light with stamped stainless steel surface mounting bracket

GASKET: Black neosponge closed cell; .190" thickness

LIGHT SOURCE: 12v, 4w integrated LED flat panel with external driver, warm white 3000K

LIFETIME RATING: 50,000 hours

SOCKET: None

DRIVER: 4w output, 12v AC input. Maximum distance from fixture is 18 feet.
For use with magnetic transformers only

VOLTAGE RANGE: 9 to 18 volts. Optimum operating range of 10 to 15 volts for consistent performance and brightness.

WIRING: Red(+) and Black(-) 18 gauge zip cord from LED panel. Connects to external driver Red(+) and Black(-) 18 gauge zip cord.
Additional 6' 18/2 zip cord supplied for wiring external driver to main cable.

CONNECTION: FA-05 Quick Connector (ordered separately) from LED driver to main cable (12/2, 10/2 or 8/2 only)

MOUNTING: Stainless Steel surface mount bracket; four screws and wall anchors provided; Face plate attaches to bracket with two provided screws
