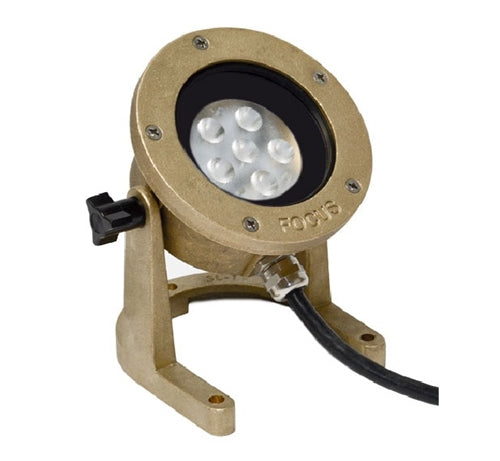

Home > Focus Industries > Focus SL11LEDM1140ABBRS 11W LED Underwater Light, 40 degree Beam spread, with Aiming Bracket Unfinished Brass

description
PRODUCT FAMILY SPECIFICATIONS
CONSTRUCTION: Cast brass body and cap; 316 Stainless Steel screws; Brass nickel-plated PG-9 liquid tight straight bushing
LENS: High impact clear tempered flat glass
LIGHT SOURCE: 7w, 11w,15w or 20w Integrated LED Module with 12v driver on board;
7w - 450 lumen, 3000K warm white (equivalent to 35w halogen)
11w - 600 lumen, 3000K warm white (equivalent to 50w halogen)
15w - 900 lumen, 3000K warm white (equivalent to 75w halogen)
20w-1500 lumen, 3000K warm white (equivalent to 75w halogen)
OPTICS: 15° Spot, 40° Flood, 60° Flood or no optics 160° Wide Flood
SOCKET: None, hard wired LED module
WIRING: 15 feet 18/2 SJTOW cord (additional length available in 5 foot increments)
FINISH: Unfinished brass
CONSTRUCTION: Cast brass body and cap; 316 Stainless Steel screws; Brass nickel-plated PG-9 liquid tight straight bushing
LENS: High impact clear tempered flat glass
LIGHT SOURCE: 7w, 11w,15w or 20w Integrated LED Module with 12v driver on board;
7w - 450 lumen, 3000K warm white (equivalent to 35w halogen)
11w - 600 lumen, 3000K warm white (equivalent to 50w halogen)
15w - 900 lumen, 3000K warm white (equivalent to 75w halogen)
20w-1500 lumen, 3000K warm white (equivalent to 75w halogen)
OPTICS: 15° Spot, 40° Flood, 60° Flood or no optics 160° Wide Flood
SOCKET: None, hard wired LED module
WIRING: 15 feet 18/2 SJTOW cord (additional length available in 5 foot increments)
FINISH: Unfinished brass
downloads
Share your knowledge of this product. Be the first to write a review »
Browse for more products in the same category as this item:
Download PDF Specification
