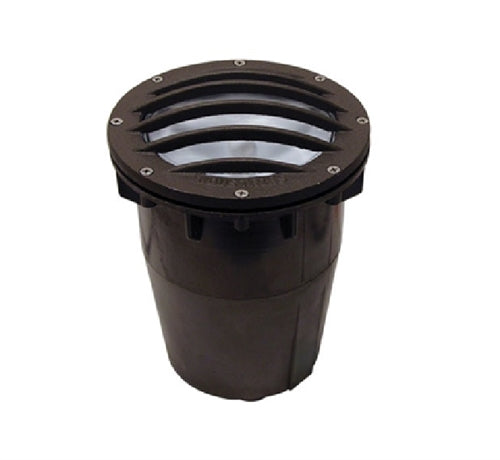

Focus SL20MDGLEDM1540120BAR 15W LED Module 40 Degrees Flood Well Light with Lens Grate, 120V Driver, Brass Acid Rust Finish
Focus SL20MDGLEDM1540120BAR 15W LED Module 40 Degrees Flood Well Light with Lens Grate, 120V Driver, Brass Acid Rust Finish
Regular price
Price:
$471.13
Regular price
Price:
Sale price
$471.13
Unit price
per
Ordering a large quantity?
Request a quote
description
CONSTRUCTION:
BODY: Fiberglass reinforced bronze composite with molded brass inserts for screws
LENS HOLDER & GRATE: Fiberglass reinforced bronze composite, cast aluminum or cast brass
LENS: High impact clear tempered convex glass
LIGHT SOURCE: 50,000 hour Integrated 2700K 7w/560 lumen, 11w/960 lumen, 15w/1280 lumen, or 20w/1800 lumen LED module
(equivalent to 35w, 50w, 75w or 100w halogen) with 6 high power Cree XPE LEDs
OPTICS: Interchangeable 15° spot, 40° flood, 60° wide flood or 160° widest flood (no optics)
12v DRIVER: Integrated on-board, no external driver required. 12v AC/DC input
120v DRIVER: Internal 120v AC input, 12v AC output, 25w magnetic transformer. (Add 120 to end of part number prior to color code)
SOCKET: LED module – integrated hard wire, no socket
WIRING 12v: Black 4 foot 18/2 zip cord from base of fixture
For 25 foot 16/2 fixture lead wire add -25F to catalog number.
WIRING 120v: Standard Black/White/Green wiring inside fixture housing.
CONNECTION: FA-05 Quick Connector (not supplied) from fixture to main cable (12/2, 10/2 or 8/2 only)
FINISH:
Composite – Bronze
Aluminum Lens Holder/Grate – Black texture polyester powder coat. Optional finishes available
Brass Lens Holder/Grate – Unfinished brass. Optional finishes available
BODY: Fiberglass reinforced bronze composite with molded brass inserts for screws
LENS HOLDER & GRATE: Fiberglass reinforced bronze composite, cast aluminum or cast brass
LENS: High impact clear tempered convex glass
LIGHT SOURCE: 50,000 hour Integrated 2700K 7w/560 lumen, 11w/960 lumen, 15w/1280 lumen, or 20w/1800 lumen LED module
(equivalent to 35w, 50w, 75w or 100w halogen) with 6 high power Cree XPE LEDs
OPTICS: Interchangeable 15° spot, 40° flood, 60° wide flood or 160° widest flood (no optics)
12v DRIVER: Integrated on-board, no external driver required. 12v AC/DC input
120v DRIVER: Internal 120v AC input, 12v AC output, 25w magnetic transformer. (Add 120 to end of part number prior to color code)
SOCKET: LED module – integrated hard wire, no socket
WIRING 12v: Black 4 foot 18/2 zip cord from base of fixture
For 25 foot 16/2 fixture lead wire add -25F to catalog number.
WIRING 120v: Standard Black/White/Green wiring inside fixture housing.
CONNECTION: FA-05 Quick Connector (not supplied) from fixture to main cable (12/2, 10/2 or 8/2 only)
FINISH:
Composite – Bronze
Aluminum Lens Holder/Grate – Black texture polyester powder coat. Optional finishes available
Brass Lens Holder/Grate – Unfinished brass. Optional finishes available
