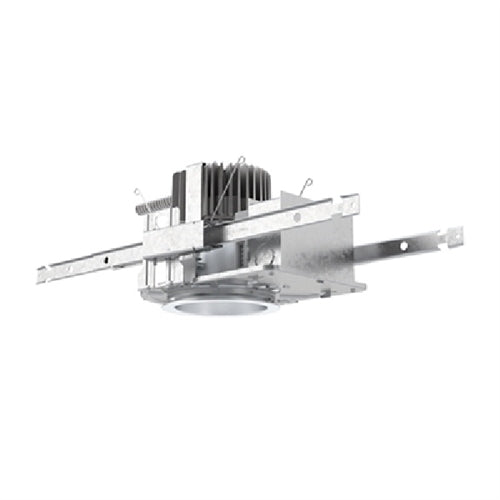

Home > Lithonia Lighting > Gotham EVO ARTC RGBW/12 MD 120 DMX 4AR LSS 4" Evo Architainment Color, Red Green Blue White Range, 1250 Lumens, Medium Distribution, 120V, Clear Trim Semi-Specular Finish
Gotham EVO ARTC RGBW/12 MD 120 DMX 4AR LSS 4" Evo Architainment Color, Red Green Blue White Range, 1250 Lumens, Medium Distribution, 120V, Clear Trim Semi-Specular Finish
Gotham EVO ARTC RGBW/12 MD 120 DMX 4AR LSS 4" Evo Architainment Color, Red Green Blue White Range, 1250 Lumens, Medium Distribution, 120V, Clear Trim Semi-Specular Finish
Regular price
Price:
$734.09
Regular price
Price:
Sale price
$734.09
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY DESCRIPTION
OPTICAL SYSTEM
OPTICAL SYSTEM
- Self-flanged semi-specular, matte-diffuse or specular finishing trim
- Patented Bounding Ray™ optical design (U.S. Patent No. 5,800,050)
- 45° cutoff to source and source image
- Top-down flash characteristic
- Polycarbonate lens integral to light engine
MECHANICAL SYSTEM
- 16-gauge galvanized steel construction; maximum 1-1/2” ceiling thickness
- Telescopic mounting bars maximum of 32” and minimum of 15”, preinstalled, 4” vertical adjustment
- Toolless adjustments post installation
- Junction box capacity: 8 (4 in, 4 out ) 12AWG rated for 90°C
- Light engine and driver accessible through aperture
ELECTRICAL SYSTEM
- Fully serviceable and upgradeable lensed LED light engine
- 70% lumen maintenance at 36,000 hours
- Tested according to LM-79 and LM-80 standards
- Overload and short circuit protected
- 2.5 SDCM; Typical CRI of 90 at 3000K
LISTINGS
- Fixtures are CSA certified to meet US and Canadian standards; wet location, covered ceiling
BUY AMERICAN ACT
- This product is assembled in the USA and meets the Buy America(n) government procurement requirements under FAR, DFARS and DOT regulations. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY
- 5-year limited warranty.
downloads
Download PDF Specification Share your knowledge of this product. Be the first to write a review »
