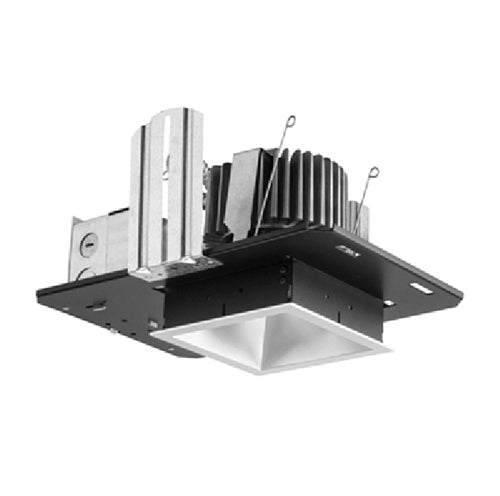

Gotham EVO4SQ 35/07 MVOLT GZ10 AR LSS 4" LED Square Recessed Lighting, 3500K, 700 Lumens, 120-277V, 0-10V Driver Dims to 1%, Clear Reflector, Self-Flanged Trim, Semi-Specular Finish
Gotham EVO4SQ 35/07 MVOLT GZ10 AR LSS 4" LED Square Recessed Lighting, 3500K, 700 Lumens, 120-277V, 0-10V Driver Dims to 1%, Clear Reflector, Self-Flanged Trim, Semi-Specular Finish
Regular price
Price:
$292.05
Regular price
Price:
Sale price
$292.05
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Optical Assembly
Optical Assembly
Optical design is a Bounding Ray design with 45 degrees cutoff to source and source image. Top-down flash characteristic for superior glare control.
Unitized optics shall have mechanical attachment of the light engine to the lower reflector for complete optical alignment.
Electrical
The luminaire shall operate from a 50 or 60 Hz ±3 Hz AC line over a voltage ranging from 120 VAC to 277 VAC. The fluctuations of line voltage shall have no visible effect on the luminous output.
The luminaire shall have a power factor of 90% or greater at all standard operating voltages and full luminaire output.
Sound Rated A+. Driver shall be >80% efficient at full load across all input voltages.
Input wires shall be 18AWG, 300V minimum, solid copper.
Controls
Luminaire shall be equipped with interface for nLight wired or wireless network with integral power supply as per specification.
Dimming
The luminaire shall be capable of continuous dimming without perceivable stroboscopic flicker as measured by flicker index (ANSI/IES RP-16-10) over a range of 100 - 10%, 100 - 1.0% or 100 - 0.1% of rated lumen output with a smooth shut off function to step to 0%.
eldoLED LED drivers shall conform to IEEE P1789 standards. Alternatively, manufacturers must demonstrate conformance with product literature and testing which demonstrates this performance. Systems that do not meet IEEE P1789 will not be considered.
Driver is inaudible in 24dB environment, and stable when input voltage conditions fluctuate over what is typically experienced in a commercial environment.
Construction
Fully serviceable and upgradeable lensed LED light engine, both the driver and light engine are suitable for field maintenance and are serviceable from above or below the ceiling.
Luminaire housing shall be constructed of 16-gauge galvanized steel and have preinstalled telescopic mounting bars with maximum 32” and minimum 15”extension and 4” vertical adjustment.
High-impact polymer trim shall be constructed with a durable, vapor deposition finish.
Patented adjustable aperture allows ¼” adjustments in all directions and up to 5° of rotation for post-installation adjustment to ensure trim-to-trim alignment.
Injection molded mud ring included with flangeless trims. Ships separately. Installs independently of the mounting frame to reduce cracks in plaster due to vibration.
Luminaires shall be suitable for installation in ceilings up to 1 1/2" thick.
Tool-less adjustments shall be possible after installation.
The assembly and manufacturing process for the luminaire shall be designed to assure all internal components are adequately supported to withstand mechanical shock and vibration.
25 degrees C ambient temperature standard (1/2” clearance on all sides from non-combustible materials in non-IC applications, unless marked spacing noted otherwise).
For use in insulated ceilings, a 3" clearance on all sides from insulation is required (unless marked spacing noted otherwise).
Listings
Fixtures are CSA certified to meet US and Canadian standards: All fixtures manufactured in strict accordance with the appropriate and current requirements of the "Standards for Safety" to UL, wet location covered ceiling.
Photometrics
LEDs tested to LM-80 standards. Measured by IESNA Standard LM-79-08 in an accredited lab. Lumen output shall not decrease by more than 30% over the minimum operational life of 60,000 hours.
Color appearance from luminaire to luminaire of the same type and in all configurations, shall be consistent both initially and at 60,000 hours and operate within a tolerance of <2.5 MacAdam ellipse as defined by a point at the intersection of the CCT line and the black body locus line in CIE chromaticity space.
Government Procurement
BAA - Buy America(n) Act: Product qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product also qualifies as manufactured in the United States under DOT Buy America regulations
BABA - Build America Buy America: Product qualifies as produced in the United States under the definitions of the Build America, Buy America Act
Please refer to www.acuitybrands.com/buy-american for additional information.
Warranty
5-year limited warranty.
ORDERING INFORMATION
Unitized optics shall have mechanical attachment of the light engine to the lower reflector for complete optical alignment.
Electrical
The luminaire shall operate from a 50 or 60 Hz ±3 Hz AC line over a voltage ranging from 120 VAC to 277 VAC. The fluctuations of line voltage shall have no visible effect on the luminous output.
The luminaire shall have a power factor of 90% or greater at all standard operating voltages and full luminaire output.
Sound Rated A+. Driver shall be >80% efficient at full load across all input voltages.
Input wires shall be 18AWG, 300V minimum, solid copper.
Controls
Luminaire shall be equipped with interface for nLight wired or wireless network with integral power supply as per specification.
Dimming
The luminaire shall be capable of continuous dimming without perceivable stroboscopic flicker as measured by flicker index (ANSI/IES RP-16-10) over a range of 100 - 10%, 100 - 1.0% or 100 - 0.1% of rated lumen output with a smooth shut off function to step to 0%.
eldoLED LED drivers shall conform to IEEE P1789 standards. Alternatively, manufacturers must demonstrate conformance with product literature and testing which demonstrates this performance. Systems that do not meet IEEE P1789 will not be considered.
Driver is inaudible in 24dB environment, and stable when input voltage conditions fluctuate over what is typically experienced in a commercial environment.
Construction
Fully serviceable and upgradeable lensed LED light engine, both the driver and light engine are suitable for field maintenance and are serviceable from above or below the ceiling.
Luminaire housing shall be constructed of 16-gauge galvanized steel and have preinstalled telescopic mounting bars with maximum 32” and minimum 15”extension and 4” vertical adjustment.
High-impact polymer trim shall be constructed with a durable, vapor deposition finish.
Patented adjustable aperture allows ¼” adjustments in all directions and up to 5° of rotation for post-installation adjustment to ensure trim-to-trim alignment.
Injection molded mud ring included with flangeless trims. Ships separately. Installs independently of the mounting frame to reduce cracks in plaster due to vibration.
Luminaires shall be suitable for installation in ceilings up to 1 1/2" thick.
Tool-less adjustments shall be possible after installation.
The assembly and manufacturing process for the luminaire shall be designed to assure all internal components are adequately supported to withstand mechanical shock and vibration.
25 degrees C ambient temperature standard (1/2” clearance on all sides from non-combustible materials in non-IC applications, unless marked spacing noted otherwise).
For use in insulated ceilings, a 3" clearance on all sides from insulation is required (unless marked spacing noted otherwise).
Listings
Fixtures are CSA certified to meet US and Canadian standards: All fixtures manufactured in strict accordance with the appropriate and current requirements of the "Standards for Safety" to UL, wet location covered ceiling.
Photometrics
LEDs tested to LM-80 standards. Measured by IESNA Standard LM-79-08 in an accredited lab. Lumen output shall not decrease by more than 30% over the minimum operational life of 60,000 hours.
Color appearance from luminaire to luminaire of the same type and in all configurations, shall be consistent both initially and at 60,000 hours and operate within a tolerance of <2.5 MacAdam ellipse as defined by a point at the intersection of the CCT line and the black body locus line in CIE chromaticity space.
Government Procurement
BAA - Buy America(n) Act: Product qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product also qualifies as manufactured in the United States under DOT Buy America regulations
BABA - Build America Buy America: Product qualifies as produced in the United States under the definitions of the Build America, Buy America Act
Please refer to www.acuitybrands.com/buy-american for additional information.
Warranty
5-year limited warranty.
ORDERING INFORMATION
