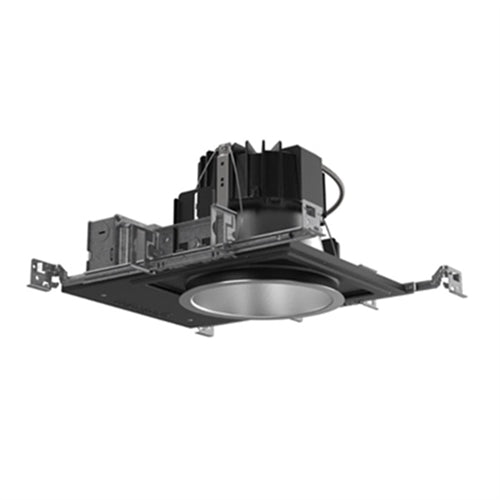

Home > Lithonia Lighting > Gotham IVO6 D 15LM 40K 80CRI MWD MIN10 MVOLT ZT NCH P AR LSS F 6" New Construction Non IC Round Recessed LED, 1500 Lumens, 4000K, 80 CRI, Med Wide Batwing Dist, Dim to 10%, 120-277V, 0-10V, Clear Anodized Open Reflector, Semi-Specular Self-Flanged
Gotham IVO6 D 15LM 40K 80CRI MWD MIN10 MVOLT ZT NCH P AR LSS F 6" New Construction Non IC Round Recessed LED, 1500 Lumens, 4000K, 80 CRI, Med Wide Batwing Dist, Dim to 10%, 120-277V, 0-10V, Clear Anodized Open Reflector, Semi-Specular Self-Flanged
Gotham IVO6 D 15LM 40K 80CRI MWD MIN10 MVOLT ZT NCH P AR LSS F 6" New Construction Non IC Round Recessed LED, 1500 Lumens, 4000K, 80 CRI, Med Wide Batwing Dist, Dim to 10%, 120-277V, 0-10V, Clear Anodized Open Reflector, Semi-Specular Self-Flanged
Regular price
Price:
$259.96
Regular price
Price:
Sale price
$259.96
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Optical System
ORDERING INFORMATION
Optical System
- Bounding Ray optical design delivers low brightness apertures for a comfortable lighting experience and ensures no source image up to cut-off angle, minimizing glare.
- 45 degrees visual cut-off angle to source
- Top-Down Flash characteristics avoids flash on trim until source becomes visible.
- Batwing distributions with feathered edges to provide even illumination fixture-to-fixture. Available with 0.8, 1.0, and 1.2 spacing-to-mountingheight ratio (s/mh).
- Clean beams with soft transitions from narrow spot up to wide flood distributions with optics available every 5 degrees
- Optics are field changeable (tool-free).
- Perfect Color consistency within 1/2-step MacAdam Ellipse using proprietary pick and place algorithm
- 90% lumen maintenance at 55,000 hours.
- Available in 80, 90, or 95 CRI. 90CRI has R9 greater than 50, 95 CRI has R9 greater than 80.
- Trims are field changeable via twist-lock (tool-free).
- Trims are available in 9 colors and 3 surface finishes (standard)
- Custom RAL and Paint colors available upon request.
- Wall Wash and Downlight Trims are designed to be interchangeable.
- Trim lenses are made of Tempered Glass.
- 120, 347, or Multi-Volt (MVOLT) 120-277 VAC input at 50/60 Hz
- Power Factor > 85%
- Input wires 18 AWG, 600V minimum, copper
- Fixtures are ROHS compliant
- EMI/RFI per FCC Title 47 CFR, Part 15, Class A rated standard.
Controls (Optional)
Dimming- Luminaire can be equipped with interface for nLight wired, allowing it to communicate over an nLight network. Couple with nLight-enabled sensors, power packs, or WallPods using CAT-5 cabling to create an nLight Control Zone. Link Control Zone to a Gateway directly or via a Bridge for remote status monitoring and control using SensorView software.
- Luminaire can be equipped with interface for nLight Air, allowing it to communicate over the wireless nLight control platform. Can be paired to other luminaires and wall switches through CLAIRITY+, a mobile app, which allows individual fixture control.
- Luminaire Is capable of continuous dimming without perceivable flicker (stroboscopic) as measured by flicker index (ASNI/IES RP-16-10).
- Available dimming ranges include: 100%-10% (MIN10), 100%-1% (MIN1), and 100%-0.1% (DARK) of rated lumen output.
- Available with smooth shut off function from minimum dimming level to 0%.
- EldoLED drivers (EZT, DALI) conform to IEEE P1789 standards.
- Drivers are inaudible in 24dB environment and stable even when input voltage conditions experience typical commercial environment fluctuations.
- Luminaires equipped with battery pack (E7W, E10W, E15W) comply with NFPA 101 (Life Safety Code) and deliver constant light output for a duration of 90 minutes minimum with AC power loss.
- Emergency battery is CEC T20 compliant.
- Patent-pending Wire-Form Mounting Springs with custom profile facilitates effortless installation, maintains tension across various ceiling thicknesses, and ensures a snug-fit of the trim to the ceiling with no sag.\
- Plug-in Driver design allows for quick and easy installation and servicing.
- Light Engine, Driver, Housing, and Trim can be installed tool-free.
- Ceiling Thickness Adapters available for 1.25" to 3" thick ceilings.
- Access to Light Engine, Driver, and branch circuit conductors is available from below the ceiling without the use of tools.
- Universal Mounting Butterfly Brackets can adjust vertically 2.5" and accept various mounting bars including 3/4" and 1-1/2" C Channel, 1/2" or 3/4" Flat Strap, 1/2" Conduit, and 1/2" Angle Bars, as well as standard Hanger Bars (included).
- Hanger Bars are extendable from 8.5" to 24".
- Luminaire is constructed with 20 gauge min cold-rolled steel, galvanized steel, and aluminum.
- Fixtures are CSA certified to meet US and Canadian standards.
- Fixtures are NOM certified to meet Mexican standards
- All fixtures are manufactured in strict accordance with the appropriate and current requirements of the "Standards for Safety" per UL.
- Damp Location standard.
- Wet Location available, covered ceiling.
- All photometry is conducted by IESNA standard LM-79-08 in an accredited lab.
- LEDs are tested to LM-80 standards. Lumen maintenance is calculated via TM-21.
- 5-year limited warranty
