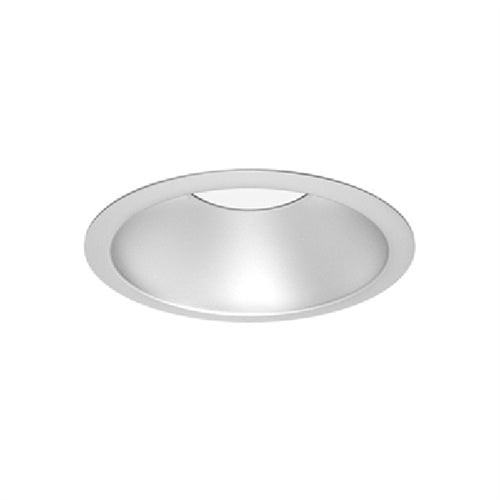

Home > Lithonia Lighting > Gotham IVO6S D 25LM 35K 80CRI MD MIN10 MVOLT ZT ICAT P AR LD F 6" IC Shallow Recessed LED Downlight, 2500 Lumens, 3500K, 80 CRI, Med Batwing Dist, 10% Dim Lvl, 120-277V, 0-10V, Open Reflector Clear Anodized Trim, Matte Diffuse Trim, Self Flanged
Gotham IVO6S D 25LM 35K 80CRI MD MIN10 MVOLT ZT ICAT P AR LD F 6" IC Shallow Recessed LED Downlight, 2500 Lumens, 3500K, 80 CRI, Med Batwing Dist, 10% Dim Lvl, 120-277V, 0-10V, Open Reflector Clear Anodized Trim, Matte Diffuse Trim, Self Flanged
Gotham IVO6S D 25LM 35K 80CRI MD MIN10 MVOLT ZT ICAT P AR LD F 6" IC Shallow Recessed LED Downlight, 2500 Lumens, 3500K, 80 CRI, Med Batwing Dist, 10% Dim Lvl, 120-277V, 0-10V, Open Reflector Clear Anodized Trim, Matte Diffuse Trim, Self Flanged
Regular price
Price:
$370.01
Regular price
Price:
Sale price
$370.01
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Optical System
Optical System
Bounding Ray optical design delivers top-down flash for superior brightness control. Source and source image present simultaneously.
Unitized optical system has mechanical attachment of the light engine to the trim for optimized optical alignment.
Source regression delivers 65 degrees of visual cutoff to source and source image.
Patent pending optics are available in three (3) batwing distributions for optimal uniformity, free of shadows, hot spots or striations.
Optics are field interchangeable without tools via twist-lock feature.
LED Light Engine
Proprietary light engines are custom binned to deliver perfect color consistency of 0.5-step MacAdam Ellipse fixture to fixture.
LED light engine is rated for L90 / 55,000 hours.
Available in 80, 90, or 95 CRI minimum. 90 CRI has an R9 greater than 50. 95 CRI has an R9 greater than 80.
Trims
Trims are field interchangeable via twist-lock mechanism.
Trims are available in nine (9) standard colors and three standard finishes that can be customized.
Electrical
Luminaire operates from a 50 or 60 Hz ±3 Hz AC line over a voltage ranging from 120 VAC to 347 VAC. The fluctuations of line voltage have no visible effect on the luminous output.
Luminaire has a power factor of 85% or greater at all standard operating voltages and full luminaire output.
EMI/RFI per FCC Title 47 CFR, Part 15, Class A rated. ELV Phase dimming
Driver is Class B rated except when used with E7WR or at 30LM and above.
Input wires are 18AWG, 600V minimum, solid copper.
Controls (Optional)
Luminaire is equipped with interface for nLight wired, meaning it has the ability to communicate over an nLight network. When wired, using CAT-5 cabling, with other nLight-enabled sensors, power packs, or WallPods, an nLight control zone is created. Once linked to a Gateway, directly or via a Bridge, the zone becomes capable of remote status monitoring and control via SensorView software. Luminaire is equipped with interface for nLight Air, meaning it can communicate over the wireless nLight control platform.
It pairs to other luminaires and wall switches through our mobile app, CLAIRITY+, which allows for single fixture control.
Dimming
The luminaire is capable of continuous dimming without perceivable stroboscopic flicker as measured by flicker index (ANSI/IES RP-16-10) over a range of 100 - 10%, 100 - 1.0% or 100 - 0.1% of rated lumen output with a smooth shut off function to step to 0%.
eldoLED LED drivers (EZT) conforms to IEEE P1789 standards.
The driver is inaudible in 24dB environment, and stable when input voltage conditions fluctuate over what is typically experienced in a commercial environment.
Emergency Battery (Optional)
Self testing integral emergency battery (E7WR) provides a emergency lighting for a duration of 90 minutes to meet egress code requirements.
Emergency battery is accessible from below the ceiling.
Emergency battery is CEC T20 Compliant.
Installation

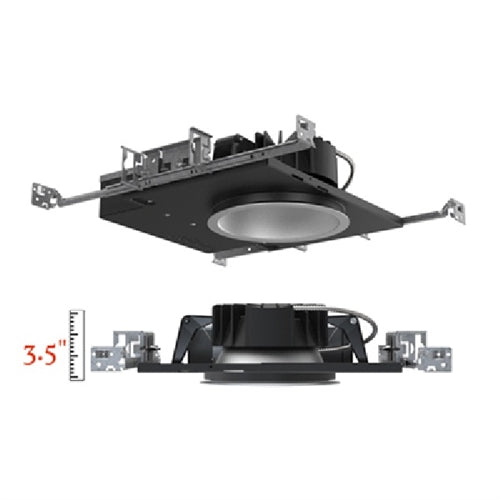

Luminaire installs in 3 1/2" plenum depth ceiling (unless noted otherwise).
Fixture is suitable for installation in ceilings from 5/8" to 2" in ceiling thickness via patented retention spring design.
Luminaire has telescopic mounting bars with maximum 24" and minimum 10 1/2" extension and 1 1/8" vertical adjustment (supplied separated).
Mounting brackets also work with C-Channel from 3/4" to 1-1/2", Flat Strap from 1/2" to 3/4", Conduit up to 3/4" in diameter, and 1/2" angle bar.
Luminaire is rated for up to (8) No. 12 AWG 90°C through branch circuit conductors.
Non-IC rated luminaires shall be installed with 3" of clearance on all sides from insulation or 1/2" clearance on all sides from non-combustible materials (unless marked spacing noted otherwise.)
IC rated luminaires can be installed in direct contact with insulation.
Construction
Luminaire features LED module with quick-disconnect harness and strain relief for ease of inspection and service.
Servicing and maintaining the light engine, driver and branch circuit conductors is possible without tools from below the ceiling.
Luminaire is constructed with 20 gauge galvanized steel.
Listings
Fixtures are CSA certified to meet US and Canadian Standards. All fixtures manufactured in strict accordance with the appropriate and current requirements of the "Standards for Safety" to UL, damp location standard, or UL wet location, covered ceiling only, optional.
Photometrics
All photometry is conducted by IESNA standard LM-79-08 in an accredited lab. LEDs are tested to LM-80 standards. Lumen maintenance is calculated via TM-21.
Warranty
5-year limited warranty.
ORDERING INFORMATION
Unitized optical system has mechanical attachment of the light engine to the trim for optimized optical alignment.
Source regression delivers 65 degrees of visual cutoff to source and source image.
Patent pending optics are available in three (3) batwing distributions for optimal uniformity, free of shadows, hot spots or striations.
Optics are field interchangeable without tools via twist-lock feature.
LED Light Engine
Proprietary light engines are custom binned to deliver perfect color consistency of 0.5-step MacAdam Ellipse fixture to fixture.
LED light engine is rated for L90 / 55,000 hours.
Available in 80, 90, or 95 CRI minimum. 90 CRI has an R9 greater than 50. 95 CRI has an R9 greater than 80.
Trims
Trims are field interchangeable via twist-lock mechanism.
Trims are available in nine (9) standard colors and three standard finishes that can be customized.
Electrical
Luminaire operates from a 50 or 60 Hz ±3 Hz AC line over a voltage ranging from 120 VAC to 347 VAC. The fluctuations of line voltage have no visible effect on the luminous output.
Luminaire has a power factor of 85% or greater at all standard operating voltages and full luminaire output.
EMI/RFI per FCC Title 47 CFR, Part 15, Class A rated. ELV Phase dimming
Driver is Class B rated except when used with E7WR or at 30LM and above.
Input wires are 18AWG, 600V minimum, solid copper.
Controls (Optional)
Luminaire is equipped with interface for nLight wired, meaning it has the ability to communicate over an nLight network. When wired, using CAT-5 cabling, with other nLight-enabled sensors, power packs, or WallPods, an nLight control zone is created. Once linked to a Gateway, directly or via a Bridge, the zone becomes capable of remote status monitoring and control via SensorView software. Luminaire is equipped with interface for nLight Air, meaning it can communicate over the wireless nLight control platform.
It pairs to other luminaires and wall switches through our mobile app, CLAIRITY+, which allows for single fixture control.
Dimming
The luminaire is capable of continuous dimming without perceivable stroboscopic flicker as measured by flicker index (ANSI/IES RP-16-10) over a range of 100 - 10%, 100 - 1.0% or 100 - 0.1% of rated lumen output with a smooth shut off function to step to 0%.
eldoLED LED drivers (EZT) conforms to IEEE P1789 standards.
The driver is inaudible in 24dB environment, and stable when input voltage conditions fluctuate over what is typically experienced in a commercial environment.
Emergency Battery (Optional)
Self testing integral emergency battery (E7WR) provides a emergency lighting for a duration of 90 minutes to meet egress code requirements.
Emergency battery is accessible from below the ceiling.
Emergency battery is CEC T20 Compliant.
Installation
Luminaire installs in 3 1/2" plenum depth ceiling (unless noted otherwise).
Fixture is suitable for installation in ceilings from 5/8" to 2" in ceiling thickness via patented retention spring design.
Luminaire has telescopic mounting bars with maximum 24" and minimum 10 1/2" extension and 1 1/8" vertical adjustment (supplied separated).
Mounting brackets also work with C-Channel from 3/4" to 1-1/2", Flat Strap from 1/2" to 3/4", Conduit up to 3/4" in diameter, and 1/2" angle bar.
Luminaire is rated for up to (8) No. 12 AWG 90°C through branch circuit conductors.
Non-IC rated luminaires shall be installed with 3" of clearance on all sides from insulation or 1/2" clearance on all sides from non-combustible materials (unless marked spacing noted otherwise.)
IC rated luminaires can be installed in direct contact with insulation.
Construction
Luminaire features LED module with quick-disconnect harness and strain relief for ease of inspection and service.
Servicing and maintaining the light engine, driver and branch circuit conductors is possible without tools from below the ceiling.
Luminaire is constructed with 20 gauge galvanized steel.
Listings
Fixtures are CSA certified to meet US and Canadian Standards. All fixtures manufactured in strict accordance with the appropriate and current requirements of the "Standards for Safety" to UL, damp location standard, or UL wet location, covered ceiling only, optional.
Photometrics
All photometry is conducted by IESNA standard LM-79-08 in an accredited lab. LEDs are tested to LM-80 standards. Lumen maintenance is calculated via TM-21.
Warranty
5-year limited warranty.
ORDERING INFORMATION
