Greengate CK2-120NO Control Keeper 2, 120 VAC, Normally Open Relay Card
Greengate CK2-120NO Control Keeper 2, 120 VAC, Normally Open Relay Card
Regular price
Price:
$934.07
Regular price
Price:
Sale price
$934.07
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Key Features
Key Features

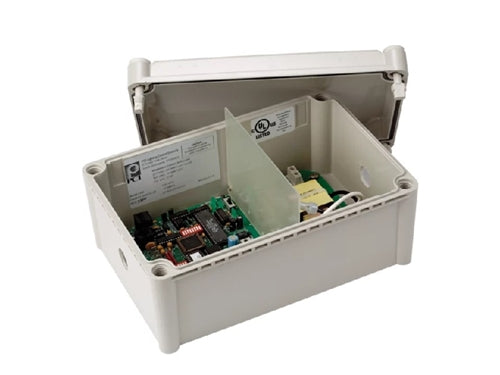

The ControlKeeper 2 network lighting control panel is a cost-effective specification grade lighting control system that can control 2 relays per panel. Network up to 254 ControlKeeper panels for a state of the art lighting control system.
Mechanical

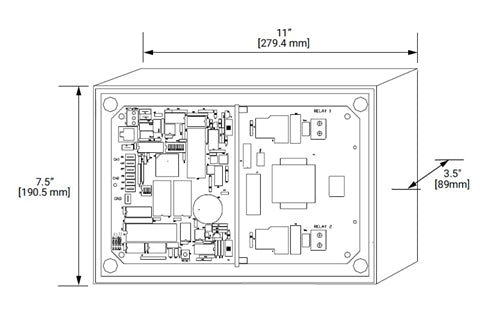

Size: 7.5”H X 11”W X5”D (190.5 mm x 279.4 mm x 127 mm)
Environment: Operating temperature: 32°F to 122°F (0°C to 50°C)
Housing: NEMA 4x surface mount enclosure
Electrical
Transformer Ratings: 120 VAC or 277 VAC
Power Use Ratings: Fully loaded panel 20 watts
Master Override: ON/AUTO/OFF
Standard Relay Ratings:
Mechanical
Size: 7.5”H X 11”W X5”D (190.5 mm x 279.4 mm x 127 mm)
Environment: Operating temperature: 32°F to 122°F (0°C to 50°C)
Housing: NEMA 4x surface mount enclosure
Electrical
Transformer Ratings: 120 VAC or 277 VAC
Power Use Ratings: Fully loaded panel 20 watts
Master Override: ON/AUTO/OFF
Standard Relay Ratings:
- 20A, 120/277 VAC per relay
- 10A, 120/277 VAC electronic ballast (LED)
- Normally open
- Maximum wire size: 10 AWG
- Mechanical operations: 10 million
Software Specifications
Programming: Optional PC Software
System Includes:
Programming: Optional PC Software
System Includes:
- UL listed – UL 916 standard
- NEMA 4X enclosure
- 2 relays
- 2 low voltage input connections
- Digital Switch Interface
- Time schedules with astronomic clock
- Prioritization and masking of switch inputs, time schedules and remotes
- Timed inputs
- Occupant warn-off and overrides
- RS-232 port standard
- RS-485 network standard
Accessories:
- Keeper Enterprise Network Software
- Ethernet Interface Module
- Automation Interface Module
- CEPC (UL 924 Accessory)
- Greengate Digital Switch (GDS)
- Low Voltage Switches
- Contact Input Photosensor
- Occupancy Sensor
Standards/Ratings
- UL Approval
- UL 916 Listed
Warranty
Consult us for warranty information
Consult us for warranty information
