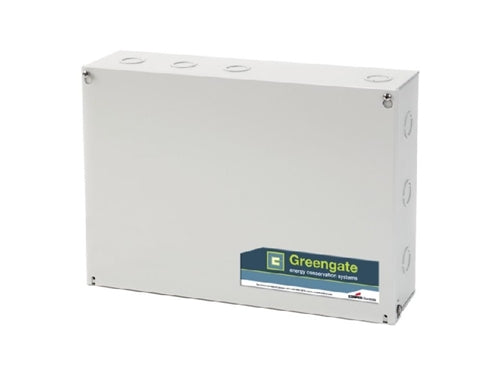

Greengate CK4A-SLRC Control Keeper 4A, SLRC Relay Card, 120/277 VAC
Greengate CK4A-SLRC Control Keeper 4A, SLRC Relay Card, 120/277 VAC
Regular price
Price:
$2,942.53
Regular price
Price:
Sale price
$2,942.53
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Key Features
Key Features
The ControlKeeper 4A network lighting control panel is a cost-effective, specification grade lighting control system. Control up to 4 relays per panel with optional support for up to four 0-10V dimming ballast control outputs. Network up to 254 ControlKeeper panels for a state of the art lighting control system.
Mechanical
Size: 10”H X 14”W X 3.5”D (254 mm x 355.6 mm x 89 mm)
Environment: Operating temperature: 32°F to 122°F (0°C to 50°C)
Housing: NEMA 1 surface mount enclosure
Electrical
Transformer Ratings:
Power Use Ratings:Mechanical
Size: 10”H X 14”W X 3.5”D (254 mm x 355.6 mm x 89 mm)
Environment: Operating temperature: 32°F to 122°F (0°C to 50°C)
Housing: NEMA 1 surface mount enclosure
Electrical
Transformer Ratings:
- Multi-tapped 120/277 VAC internally fused standard
- Optional 347 VAC internally fused
- Optional 220/230 VAC 50/60 Hz internally fused
- Optional 220/240 VAC 50/60 Hz internally fused
- Fully loaded panel 40 watts
- 4-wire fluorescent loads, 0-10 VDC Isolated (40 μA max per circuit leakage to line)
- The CK4A supports up to 100mA per panel. Each 0-10V output supports 25mA or 12 drivers that draw the standard 2mA each
- ON/AUTO/OFF
- 20A, 120/277 VAC per relay
- 10A, 120/277 VAC electronic ballast (LED)
- Normally open
- Maximum wire size: 10 AWG
- Mechanical operations: 10 million
- 20A, 120/277 VAC electronic ballast (LED)
- 15A, 347 VAC (LED)
- Maximum wire size: 6 AWG
- Mechanical operations: 10 million
- Provides a system SCCR rating of 10,000A
- 20A, 208/240/480 VAC
- Normally open
- Maximum wire size: 6 AWG
- Mechanical operations: 10 million
Software Specifications
Programming: Optional PC Software
System Includes:
Programming: Optional PC Software
System Includes:
- UL listed – UL 916 standard
- NEMA 1 enclosure
- 4 relays
- Support for 4 three-wire or 8 two-wire low voltage inputs
- 4 analog inputs
- Time schedules with astronomic clock
- Prioritization and masking of switch inputs, time schedules and remotes
- Timed inputs
- Occupant warn-off and overrides
- RS-232 port standard
- RS-485 network standard
- Open/Closed loop daylighting
- Control receptacle loads with Latching Relay Card
Accessories:
- Keeper Enterprise Network Software
- Ethernet Interface Module
- BMS Pro
- CEPC-1-D (UL 924 Accessory)
- Greengate Digital Switch (GDS)
- Low Voltage Switches
- Contact Input or Analog Photocells
- Occupancy Sensor
Standards/Ratings
- UL Approval
- UL 916 Listed
- Plenum Rated
Warranty
Consult us for warranty information
Consult us for warranty information
