Greengate OAC-P-0500-MV Ceiling Sensor 500 Sq Ft Room Size
Greengate OAC-P-0500-MV Ceiling Sensor 500 Sq Ft Room Size
Regular price
Price:
$155.80
Regular price
Price:
Sale price
$155.80
Unit price
per
MODEL: Greengate-OAC-P-0500-MV
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
Technology
Power Requirements: 120 to 347 VAC, 50/60 Hz- Neutral Required
LED Indicators:
Time delays:
Technology
- Passive Infrared (PIR)

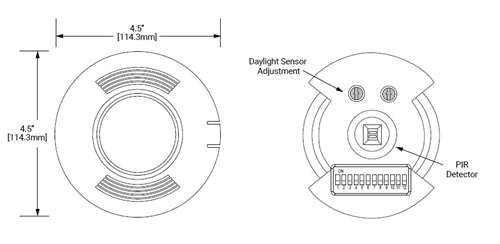

- Size: 1.42" H x 4.5" W (36.068mm x 114.3mm)
- Mounting: Mounts directly to ceiling tile, to a 4" square box and round mud ring or to
- 4" octagon box
- Operating temperature: 32°F to 104°F (0°C to 40°C)
- Relative humidity operating: 20% to 90% non-condensing
- For indoor use only
- Housing: Durable, injection molded housing. Polycarbonate resin complies with UL 94V-0
Power Requirements: 120 to 347 VAC, 50/60 Hz- Neutral Required
-
120 VAC
- Incandescent/Tungsten - 0 to 800W, 50/60 Hz
- Fluorescent/Ballast - 0 to 1200W, 50/60 Hz
- Electronic Ballast (LED) 3A
- Motor Load: ¼ HP @ 125 VAC
-
230 VAC
- Fluorescent/Ballast - 0 to 1200W, 50/60 Hz
- Electronic Ballast (LED) 3A
-
277 VAC
- Fluorescent/Ballast - 0 to 2700W, 50/60 Hz
- Electronic Ballast (LED) 3A
-
347 VAC
- Fluorescent/Ballast - 0 to 1500W, 50/60 Hz
- Electronic Ballast (LED) 3A
LED Indicators:
- Red LED for PIR detection
Time delays:
- Self-adjustable, 15 seconds/test (10 minutes Auto), or Selectable 5, 15, 30 minutes
- 500 & 1500 sq. ft.
- 0 to 300 foot candles
- cULus Listed - Energy Management Equipment (UL916)
- FCC Compliant
- RoHS Compliant
- Five year warranty standard
downloads
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
