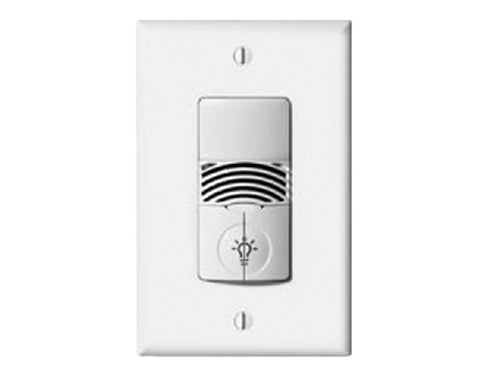

Greengate ONW-D-1001-DMV-W Dual Tech/Dual Realy Wall Switch Sensor (Ground Required), 800W 120V Incandesccent, 1200W 120V Fluorescent, 2700W 277V Fluorescent, White

Greengate ONW-D-1001-DMV-W Dual Tech/Dual Realy Wall Switch Sensor (Ground Required), 800W 120V Incandesccent, 1200W 120V Fluorescent, 2700W 277V Fluorescent, White

Price: $194.33
Price: $194.33

MODEL: Greengate-ONW-D-1001-DMV-W

Usually Ships in 4-6 business days. Urgent Project? Contact Us
Add To Wishlist
Request a Quote
Ordering a large quantity?Request a quote
View full details

description

PRODUCT SPECIFICATIONS

Technology
  • Passive Infrared (PIR) and Ultrasonic (US) technology
Mechanical

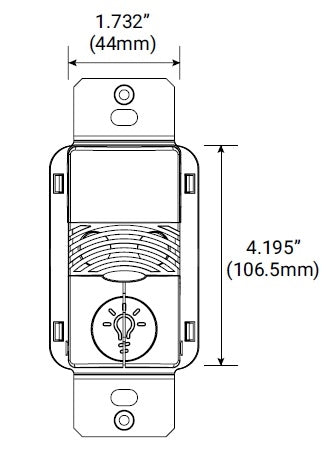

Mounting Plate/Strap Dimensions: 4.195” H x 1.732” W (106.55mm x 44mm)
Product Housing Dimensions: 2.618” H x 1.752” W x 1.9” D (66.5mm x 44.5mm x 48.26mm)

Environment:
  • Operating temperature: 32°F to 104°F (0°C to 40°C)
  • Relative humidity operating: 20% to 90% non-condensing
  • For indoor use only
Housing: Durable, injection molded housing. ABS resin complies with UL 94V-0
Mounting: Fits in a standard 3.5” deep back box Can be mounted in multiple gang back box Refer to NEC box calculation for properly sized mounting box

Electrical
Electrical ratings (per relay):
  • 120 VAC
    • Incandescent / Tungsten max load: 6.7 amps, 800W, 50/60 Hz
    • Fluorescent / Ballast max load: 10 amps, 1200W, 50/60 Hz
    • Electronic Ballast (LED): 3A
    • Motor Load: 1/4 HP @ 125 VAC
  • 277VAC
    • Fluorescent / Ballast max load: 9.8 amps, 2700W, 50/60 Hz
    • Electronic Ballast (LED): 3A
Ballast compatibility:
  • LED loads
  • Magnetic and Electronic ballasts
Hardware Specifications
LED Indicators:
  • Red LED = PIR detection
  • Green LED = Ultrasonic detection
Controls and Performance
Time delays:
  • Self adjusting 15 seconds/test (10 min. Auto)
  • Selectable 5, 15, 30 minutes
Coverage:
  • Major motion: 36’ x 30’
  • Minor motion: 20’ x 16’
Light sensing level:
0 to 200 foot candles
Standards/Ratings
  • cULus Listed - Energy Management Equipment (UL916)
  • FCC Compliant
  • RoHS Compliant
Warranty
Five year warranty standard
