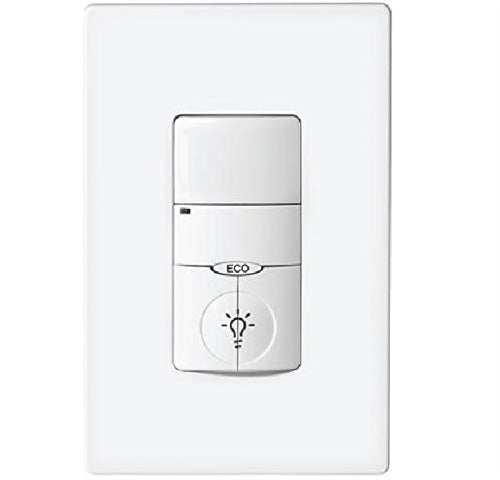

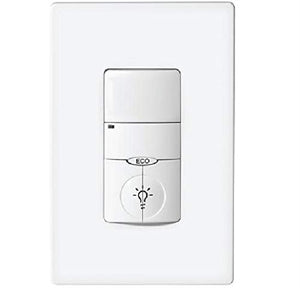

Greengate ONW-P-1001-DMV-W NeoSwitch PIR Occupancy Sensor/Switch, 120/277V, White

PRODUCT SPECIFICATIONS
Technology

• Passive Infrared (PIR)

Mechanical
Mounting Plate Dimensions: 4.195” H x 1.732” W (106.55mm x 44mm)
Mounting Plate/Strap Dimensions: ONW-P-1001-D347: 4.35” H x 1.732” W (110.49mm x 44mm)
Product Housing Dimensions: 2.618” H x 1.752” W x 1.9” D (66.5mm x 44.5mm x 48.26mm)
Environment:

• Operating temperature: 32°F to 104°F (0°C to 40°C)
• Relative humidity operating: 20% to 90% non-condensing
• For indoor use only

Housing:
Durable, injection molded housing. ABS resin complies with UL 94V-0 Mounting: Fits in a standard 3.5" deep back box. Can be mounted in multiple gang back box Refer to NEC box calculation for properly sized mounting box

Electrical
Electrical ratings:
120 VAC

• Incandescent / Tungsten max load: 6.7 amps, 800W, 50/60 Hz
• Fluorescent / Ballast max load: 10 amps, 1200W, 50/60 Hz
• Electronic Ballast (LED): 3A • Motor Load: 1/4 HP @ 125 VAC

277VAC

• Fluorescent / Ballast max load: 9.8 amps, 2700W, 50/60 Hz
• Electronic Ballast (LED): 3A

347VAC

• Fluorescent / Ballast max load: 4.3 amps, 1500W, 50/60 Hz
• Electronic Ballast (LED): 3A

Ballast compatibilty:

• LED loads
• Magnetic and Electronic ballasts

Hardware Specifications LED Indicators:

• Red LED = PIR detection
• Green LED = acts as EcoMeter or night light locator

Controls and Performance
Time delays:

• Self adjusting 15 seconds/test (10 min. Auto)
• Selectable 5, 15, 30 minutes

Coverage:

• Major motion: 36' x 30'
• Minor motion: 20’ x 16’

Light sensing level:

• 0 to 200 foot candles

Standards/Ratings

• cULus Listed
• FCC Compliant
• RoHS Compliant

Warranty

• Five year warranty standard
