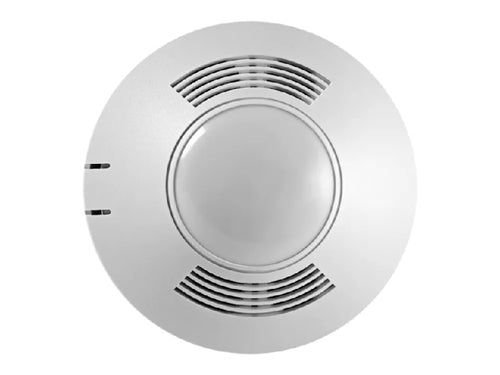

Greengate VAC-DT-1000-R Low Voltage Vacancy Ceiling Sensor, 1000 Sq Ft Max Room Size, 360 Degrees Two Way View
Greengate VAC-DT-1000-R Low Voltage Vacancy Ceiling Sensor, 1000 Sq Ft Max Room Size, 360 Degrees Two Way View
Regular price
Price:
$181.50
Regular price
Price:
Sale price
$181.50
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Technology
Technology
- Passive Infrared (PIR) and Ultrasonic (US)
Mechanical
- Size: 1.42” H x 4.5” W (36.068mm x 114.3mm)
- Mounting: Mounts directly to ceiling tile, to a 4” square box and round mud ring or to 4” octagon box
- Environment:
- Operating temperature: 32°F to 104°F (0°C to 40°C)
- Relative humidity operating: 20% to 90% non-condensing
- For indoor use only
- Housing: Durable, injection molded housing.
- Polycarbonate resin complies with UL 94V-0
-
Power Requirements:
- 120 to 347 VAC, 50/60 Hz - Neutral Required
- Input
- 10-30 VDC from Greengate Switchpack or Greengate system
- Maximum current needed is 25mA per sensor
- Output
- Open collector output to switch up to ten Greengate Switchpacks
- BAS with Isolated Form C Relay in (-R) model
- Isolated Form C Relay Ratings: 1A 30 VDC/VAC
-
LED Indicators:
- Red LED for PIR detection
- Green LED for Ultrasonic detection
-
Time delays:
- Self-adjustable, 15 seconds/test (10 minutes Auto), or Selectable 5, 15, 30 minutes, or Zero Time Delay
- Coverage:
- 500, 1000 and 2000 sq. ft.
- Light sensing level (-R Models):
- 0 to 300 foot candles
- cULus Listed - Energy Management Equipment (UL916)
- FCC Compliant
- RoHS Compliant
- Five year warranty standard
