Home > Halo Lighting > Halo Recessed BLD4089SWHR 4" Backlit LED Downlight, 800 Lumens, 90 CRI, SeleCCTable 2700K-5000K, Matte White

  • Halo Recessed BLD4089SWHR 4" Backlit LED Downlight, 800 Lumens, 90 CRI, SeleCCTable 2700K-5000K, Matte White
1 1

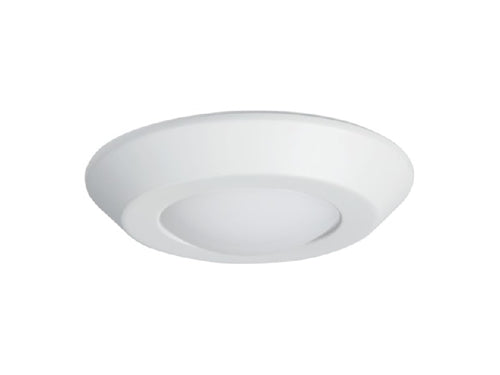

Halo Recessed BLD4089SWHR 4" Backlit LED Downlight, 800 Lumens, 90 CRI, SeleCCTable 2700K-5000K, Matte White

Halo Recessed BLD4089SWHR 4" Backlit LED Downlight, 800 Lumens, 90 CRI, SeleCCTable 2700K-5000K, Matte White

Price: $31.74
Price: $31.74

MODEL: Halo-BLD4089SWHR
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

PRODUCT DESCRIPTION
The Halo Backlit LED Downlight (BLD) incorporates state of the art lighting technology to create an ultra-low profile surface mounting luminaire with the performance and look of a traditional downlight. BLD4 is designed for installation in many 3-1/2" and 4" round or octagon junction boxes including pancake boxes. It can also retrofit in 4" aperture IC and Non-IC recessed housings. Suitable for residential or commercial installations.

PRODUCT SPECIFICATIONS
CONSTRUCTION
  • Stamped aluminum housing and frame
OPTICS
  • Precision engineered optic provides uniform luminance from a low profile convex lens
LED
  • Backlit LED technology
  • Color Temperature options include: standard 3000K dedicated or SeleCCTable configuration including 2700K, 3000K, 3500K, 4000K and 5000K options.
  • 90 CRI is standard
  • L70 at 50,000 hours projected in accordance with TM-21
DRIVER
  • Integral 120V 60Hz constant current driver provides virtually noise free operation.
  • Continuous, flicker-free dimming from 100% to 5% with select leading or trailing edge 120V phase cut dimmers. See dimming guide.
  • Dimming to 5% is best assured using dimmers with low end trim adjustment. Consult dimmer manufacturer for compatibility and conditions of use. (Note some dimmers require a neutral in the wallbox)
  • Inline electrical quick connect and E26 adapter (provided) provides mains connections.
ELECTRICAL JUNCTION BOX MOUNTING
  • BLD may be used in compatible electrical junction boxes in direct contact with insulation including spray foam insulation
  • Suitable for installation in many 3-1/2" and 4" octagon and round electrical junction boxes.
  • Dedicated CCT SKUs are compatible with compact (pancake) junction boxes
  • Selectable CCT configuration, driver consumes 3 cubic inches of junction box, selectable CCT configuration is not compatible with pancake junction boxes
  • Installer must ensure compatibility of fit, wiring and proper mounting in the electrical junction box. This includes all applicable national and local electrical and building coded
RECESSED HOUSING MOUNTING
  • Can be installed in industry standard 4-inch recessed housings using friction mounting springs and (E26) medium base adapter provided.
  • Not for use in recessed housings in direct contact with spray foam insulation refer to NEMA LSD 57-2013
WARRANTY
  • Five year limited warranty
COMPLIANCE
  • cULus certified for use with Halo housings and other's housings, see instruction sheet for conditions of acceptability.
  • Wet and Damp Location listed, airtight per ASTM-E283 (protected ceiling only)
  • Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements.
  • EMI/RFI emissions per FCC 47CFR Part 15B
  • Contains no mercury or lead and RoHS compliant.
  • Photometric testing in accordance with IES LM-79-08
  • Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11.
  • Can be used for State of California Title 24 high efficacy luminaire compliance, reference the California Energy Commission Title 20 Appliance Efficiency Database for current listings.
  • Can be used for International Energy Conservation Coe (IECC) and Washington State Energy Code high efficiency luminaire Compliance
  • ENERGY STAR Certified luminaire
