Halo Recessed E550ICAT 5" New Construction LED, Air Tight, IC Type Housing

Halo Recessed E550ICAT 5" New Construction LED, Air Tight, IC Type Housing

Price: $13.10
Price: $13.10

MODEL: Halo-E550ICAT
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

PRODUCT DESCRIPTION

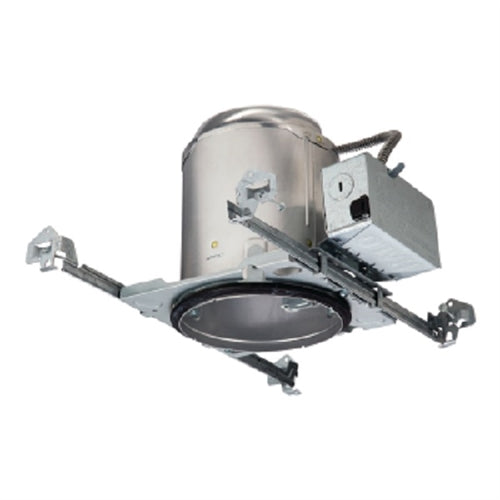

Recessed 5" aperture new construction housing for use with LED integrated trims or modules. Suitable for 2x8 residential framing or commercial plenum construction, type IC rated and can be used in direct contact with insulation*. Airtight rating reduces airflow between living spaces and unconditioned areas providing additional energy savings. Use with Halo LT56, SMD6, RL56, RA56, SLD6 LED integrated trims and the ML56 LED modular recessed lighting system.

PRODUCT FEATURES
Housings
  • Single wall precision rolled aluminum housing with interlocking construction maintains concentricity
  • Adjusts vertically to accommodate 3/8" to 1" thick ceilings and locks in position with (3) setscrews
  • V notches facilitate use of guide strings or laser lines for precise positioning
  • Shipped with overspray protector installed
  • Housing can be removed from below the ceiling for service or splice inspection
Plaster Frame
  • Compact galvanized steel plaster frame with integral bar hanger receivers
  • (2) regressed screws provide positive horizontal bar hanger locking from below the ceiling
  • Integral gasket achieves ASTM-E283 airtight code compliance without additional gaskets or caulk
