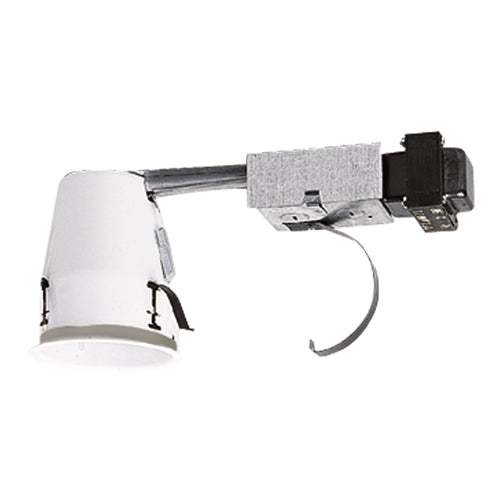

Halo Recessed H1499RTAT 4" Remodel Low Voltage, Air Tight, Non-IC Type Housing
Halo Recessed H1499RTAT 4" Remodel Low Voltage, Air Tight, Non-IC Type Housing
Regular price
Price:
$60.82
Regular price
Price:
Sale price
$60.82
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT DESCRIPTION
The H1499RTAT is a small aperture Non-IC AIR-TITE remodel housing for providing accent and task lighting. The H1499RTAT is designed for use in non-insulated existing ceilings. Non-IC Housing is AIR-TITE but insulation must be kept 3 inches away from all sides of housing. For installation from below the ceiling.
PRODUCT FEATURES
Housing
Formed of CRS with powder coat finish.
Remodel Clips
Four remodel clips secure housing and accommodates 1/2" and 5/8" ceiling materials.
Junction Box
The H1499RTAT is a small aperture Non-IC AIR-TITE remodel housing for providing accent and task lighting. The H1499RTAT is designed for use in non-insulated existing ceilings. Non-IC Housing is AIR-TITE but insulation must be kept 3 inches away from all sides of housing. For installation from below the ceiling.
PRODUCT FEATURES
Housing
Formed of CRS with powder coat finish.
Remodel Clips
Four remodel clips secure housing and accommodates 1/2" and 5/8" ceiling materials.
Junction Box
- Seven 1/2" trade size conduit knockouts with true pry-out slots.
- Four pryouts with integral strain relief for non-metallic sheathed cable
"Quick Connect" Connectors
Three quick connect wiring connectors included.
Socket
GU 5.3 socket with reflector for bi-pin 12V MR16 lamps.
Transformer
Integral 120V magnetic transformer steps line voltage down to lamp operating voltage.
Support Spring
Support spring helps support weight of junction box and transformer. Automatically adjusts for different ceiling materials.
Thermal Protector
Thermal protector deactivates fixture if overheating occurs due to improper lamping or misapplied insulation.
Labels
Three quick connect wiring connectors included.
Socket
GU 5.3 socket with reflector for bi-pin 12V MR16 lamps.
Transformer
Integral 120V magnetic transformer steps line voltage down to lamp operating voltage.
Support Spring
Support spring helps support weight of junction box and transformer. Automatically adjusts for different ceiling materials.
Thermal Protector
Thermal protector deactivates fixture if overheating occurs due to improper lamping or misapplied insulation.
Labels
- UL/cUL Listed 1598 Luminaire
- UL/cUL Damp Location Listed
- UL/cUL Listed for Wet Location, covered ceiling - with select trims
- Certified Under ASTM-E283 for air tight construction
downloads
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
