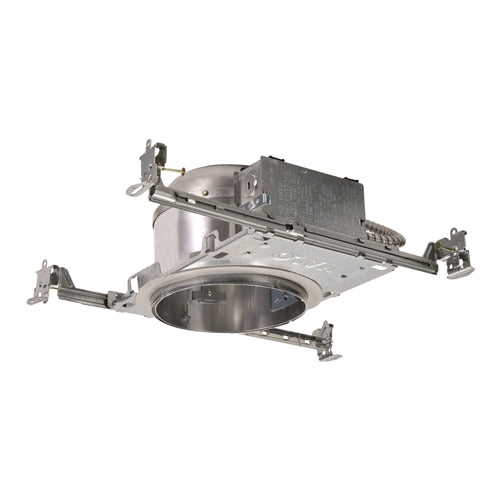

Halo Recessed H2750ICAT 6" New Construction LED, Air Tight, IC Type Housing

PRODUCT DESCRIPTION
The H2750ICAT is a dedicated LED new construction housing for use in shallow ceilings where 2x6 joist construction is used.The H2750ICAT is designed to fit in shallow insulated ceilings and can be in direct contact with ceiling insulation*. This AIR-TITE housing design prevents airflow between conditioned and unconditioned spaces for savings on both heating and air conditioning costs. The LED connector system provides high efficacy code compliance when used with designated HALO LED modules and trims.

PRODUCT FEATURES
Housings

• Aluminum housing for greater heat dissipation.
• H2750ICAT housing is gasketed to prevent airflow from heated or air conditioned spaces

Plaster Frame

• Galvanized steel frame. Housing adjusts in plaster frame to accommodate up to 1-3/8" ceiling thickness.
• Regressed locking screw for securing hanger bars.
• Cutouts included for easily crimping hanger bars in position.

Slide-N-Side™ Junction Box

• Positioned to accommodate straight conduit runs.
• Seven ½" trade size conduit knockouts with true pry-out slots.
• Slide-N-Side wire traps allow non metallic sheathed cable to be installed without tools and without removing knockouts.
• Allows wiring connections to be made outside the box.
• Simply insert the cable directly into the trap after connections are made.
• Accommodates the following standard non-metallic sheathed cable type:
  • U.S. #14/2, #14/3, #12/2, #12/3
  • Canada: #14/2, #14/3, #12/2

GOT NAIL! Pass -N-Thru™ Bar Hangers
Bar Hanger features include

• Pre-installed nail easily installs in regular lumber, engineered lumber and laminated beams.
• Safety and Guidance system prevents snagging, ensures smooth, straight nail penetration and allows bar hangers to be easily removed if necessary
• Automatic leveling flange aligns the housing and allows holding the housing in place with one hand while driving nails.
• Housing can be positioned at any point within 24" joist spans
• Score lines allow tool-free shortening for 12" joists and bar hangers do not need to be removed for shortening.
• Bar hangers may be repositioned 90° on plaster frame
• Integral T-bar clip snaps onto T-bars – no additional clips are required.

LED Module Connection
Halo shallow LED modules simply install with a plug-in 120V/277V rated line voltage wiring connector (UL and CSA Listed Luminaire Disconnect).
