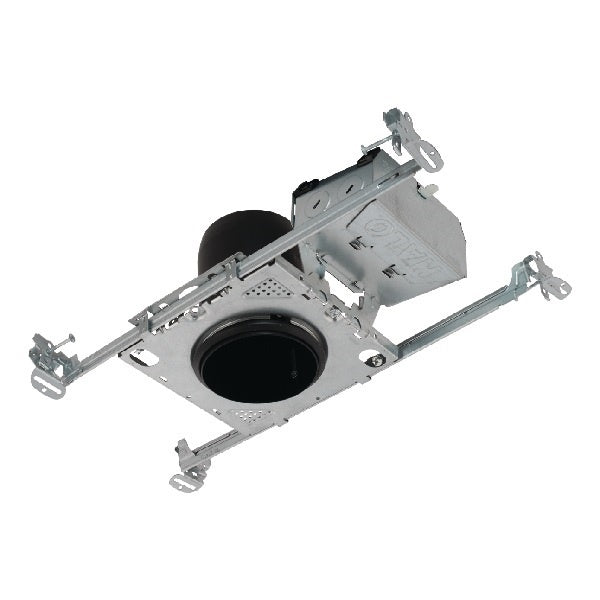

Halo Recessed H35ICAT 3" Shallow New Construction Housing for LED Integrated Trims or Modules
Halo Recessed H35ICAT 3" Shallow New Construction Housing for LED Integrated Trims or Modules
Regular price
Price:
$28.96
Regular price
Price:
Sale price
$28.96
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
Housing
Housing
- Single wall deep drawn aluminum housing painted matte black for a visually dark interior
- Adjusts vertically to accommodate 1/2" to 1-1/4" thick ceilings and locks in position with (3) setscrews
- V notches on plaster lip facilitate use of guide strings or laser lines for precise positioning
- Integral gasket provides for airtight compliance
- Shipped with overspray protector installed
- Housing can be removed from below the ceiling for service or splice inspection
- Compact galvanized steel plaster frame with integral bar hanger receivers
- Regressed screw provides positive horizontal bar hanger locking from below the ceiling
- Crimp points also provide for horizontal bar hanger locking
- Captive preinstalled Got-Nail bar hangers support housing at any point along span
- Pass-N-Thru feature adjust from 8" to 24" wide without removal
- Score lines allow "tool-less" shortening for 12" joists
- Captive nail penetrates standard and engineered lumber
- Safety and guidance system prevents snagging, ensures smooth straight nail penetration and allows bar hangers to be easily removed and repositioned
- Leveling flange aligns plaster frame with structure
- Integral clip attaches directly to tee-bar
- Compact galvanized steel junction box with 16in3 internal volume
- Listed for (10) #12 AWG 90 degree C splice conductors
- (6) 1/2" conduit pry-outs positioned to allow straight conduit runs
- (3) Slide-N-Side non-metallic (NM) wire traps allows wiring outside the box
- Accepts 14-2, 14-3, 12-2, 12-3 U.S. and 14-2, 14-3, 12-2 Canadian NM cable
- (3) 4-port push wire nuts with clear caps for quick and reliable mains voltage connections
- Two-conductor wire mount connector mates with RL3, RA3 family of LED integrated trims.
- CAUTION: verify LED module input voltage is compatible with the input voltage of the housing. If uncertain, consult a qualified electrician
- Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations
- Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013
- Wet location listed in covered ceilings and IP44 certified with select trims
- Airtight per ASTM-E283
- Can be used for State of California Title 24 high efficacy luminaire compliance
- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
- Contains no mercury or lead and RoHS compliant
- Five-year limited warranty
