Home > Halo Lighting > Halo Recessed H35RICAT 3" Shallow Remodel Housing for LED Integrated Trims or Modules

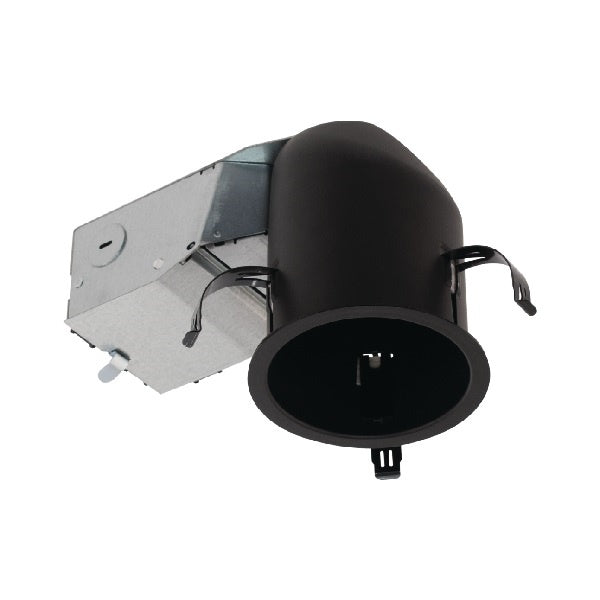

Halo Recessed H35RICAT 3" Shallow Remodel Housing for LED Integrated Trims or Modules
Halo Recessed H35RICAT 3" Shallow Remodel Housing for LED Integrated Trims or Modules
Regular price
Price:
$26.48
Regular price
Price:
Sale price
$26.48
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
Housing
Housing
- Die formed aluminum housing can be installed from below the ceiling and accommodate ceilings from 3/8" – 3/4" thick.
- Shipped with paint overspray protector installed
- Captive preinstalled mounting springs retain housing securely in ceiling.
- Housing can be removed for service or splice inspection
- Closed cell gaskets achieve restrictive airflow requirements without additional caulking
- (3) 1/2" trade size pry outs and (2) Slide-N-Side wire traps for nonmetallic cable.
- Accepts 14/2, 14/3, 12/2, 12/3 (US) and 14/2, 14/3, 12/2 (Canada) standard non-metallic sheathed cable.
- Maximum of (6) #12 or (8) #14 conductors rated for 90 degree C permitted in box (10in3 internal volume).
- Wago push wire connectors for field connections
- Two-conductor wire mount connector mates with RL3, RA3 family of LED integrated trims.
- CAUTION: verify LED module input voltage is compatible with the input voltage of the housing. If uncertain, consult a qualified electrician
- Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations.
- Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
- Wet location listed in covered ceilings and IP44 certified with select lens trims.
- Airtight per ASTM-E283.
- Can be used for State of California Title 24 high efficacy luminaire compliance with designated integrated LED trims.
- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
- Five-year limited warranty
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
