Halo Recessed H36ICAT 3" Shallow Ceiling New Construction, Air Tight, 120V, GU10 Socket, IC Type Housing

Halo Recessed H36ICAT 3" Shallow Ceiling New Construction, Air Tight, 120V, GU10 Socket, IC Type Housing

Price: $57.88
Price: $57.88

MODEL: Halo-H36ICAT
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

PRODUCT DESCRIPTION
H36ICAT is a shallow IC AIR-TITE™ fixture for use with H3 3" series trims. Housing is AIR-TITE rated to prevent airflow between heated or air conditioned spaces and unconditioned attic areas. For use with 120V GU10 lamps.
H36ICAT is IC rated and may be used in insulated 2x6 ceilings and be covered with insulation material.

PRODUCT SPECIFICATION
Housing

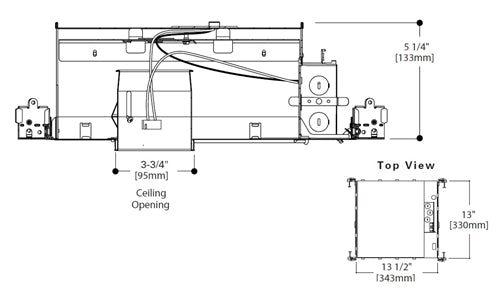

IC and AIR-TITE™rated double wall aluminum construction. Shallow height for 2x6 joist spaces.

Plaster Frame
Housing adjusts in plaster frame to accommodate up to 1-1/2" ceiling thickness. Galvanized steel construction.
Plaster frame features include:
  • Regressed locking screw for securing hanger bars.
  • Cutouts for easily crimping hanger bars in position.
  • Halo name embossed on plaster frame.
  • The inner can housing may be removed from the plaster frame to provide access to the junction box.
  • Pre-installed AIR-TITE gasket.

Got NAIL!™ Bar Hangers
  • Pre-installed nail easily installs in regular lumber, engineered lumber and laminated beams.
  • Safety and guidance system events snagging, ensures smooth straight nail penetration and allows bar hangers to be easily removed if necessary.
  • Automatic levelling flange aligns the housing and lets you hold the housing in place with one hand while driving nails.
  • Housing can be positioned at any point within 24" joist span
  • Pass-N-Thru™ feature allows bar hangers to be shortened without removing from plaster frame.
  • Score lines allow "tooless" shortening.
  • Bar hangers may be repositioned 90°.
  • Integral T-bar clip snaps onto T-bars - no additional clips required.
Junction Box
  • UL Listed for through branch circuit wiring (maximum 8 No.12 ga., 90°C conductors).
  • Four 1/2" trade size conduit knockouts with true pry-out slots are positioned to accommodate straight conduit runs.
  • Three Slide-N-Side™ wire traps allow non-metallic sheathed cable to be installed without tools and without removing knockouts. Accepts a wide range of non-metallic sheathed cable.
    • Allows wiring connections to be made outside the junction box
    • Simply insert the cable directly into the trap after connections are made.
    • Three push-in wire connectors are included and eliminate the need for separate wire nuts.
    • Accommodates the following standard non-metallic sheathed cable sizes:
      • (US) #14/2, #14/3, #12/2, #12/3
      • (Canada) #14/2, #14/3, #12/2
Socket
GU10 socket for 120V GU10 lamps.

Labels
  • UL/cUL Listed 1598 Luminaire
  • UL/cUL Damp Location Listed
  • UL/cUL Listed for Feed Through
  • UL/cUL listed for Direct Contact with Insulation and combustible material*
Meets following IC - AIR-TITE™ requirements:
  • State of California Title 24
  • Washington State Energy Code
  • International Energy Conservation Code (IECC)
  • New York State Energy Conservation Construction Code
  • Certified Under ASTM-E283 for air tight construction.
*Not for use in direct contact with spray foam insulation (Refer to NEMA LSD57-2013)
