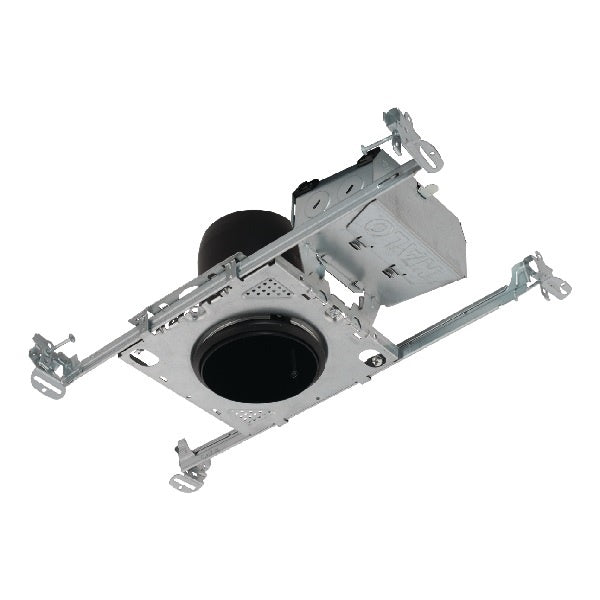

Halo Recessed H36MR16ICAT 3" 10W Shallow Low Voltage New Construction Housing for LED MR16 Trims
Halo Recessed H36MR16ICAT 3" 10W Shallow Low Voltage New Construction Housing for LED MR16 Trims
Regular price
Price:
$61.54
Regular price
Price:
Sale price
$61.54
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT SPECIFICATIONS

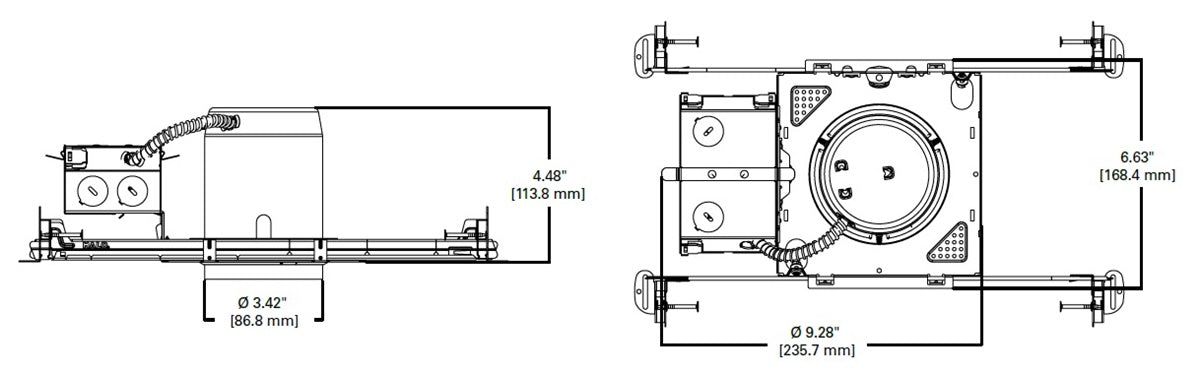

Housing
Housing
- Single wall deep drawn aluminum housing painted matte black for a visually dark interior
- Adjusts vertically to accommodate 3/8" to 1-1/4" thick ceilings and locks in position with (3) setscrews
- Integral gasket achieves airtight compliance without additional caulk or gaskets
- Shipped with overspray protector installed
- Housing can be removed from below the ceiling for service or splice inspection
- Compact galvanized steel plaster frame with integral bar hanger receivers
- Notches facilitate use of guide strings or laser lines for precise positioning
- Regressed screws provide positive horizontal bar hanger locking from below the ceiling
- Perforations accept drywall screws from below securing housing to ceiling structure
- Captive preinstalled Got-Nail bar hangers support housing any point along span and tight to framing
- Pass-N-Thru feature allows adjust from 6" to 24" wide without removal
- Captive nail penetrates standard and engineered lumber
- Leveling flange aligns plaster frame with structure
- Integral clip attaches directly to tee-bar
- Accepts 1/2" EMT, C channel and bar hangers
- Adjusts 3" vertically from above or below the ceiling
- Installed to plaster frame with (2) screws (provided)
- Compact galvanized steel junction box with 16in3 internal volume
- Listed for (10) #12 AWG 90 degree C splice conductors
- Repositionable 90 degree on plaster frame to avoid obstructions
- Hinged door is retained and provides easy access to field wiring
- (6) 1/2" conduit pry-outs positioned to allow straight conduit runs
- (3) Slide-N-Side non-metallic (NM) wire traps allows wiring outside the box
- Accepts 14-2, 14-3, 12-2, 12-3 U.S. and 14-2, 14-3, 12-2 Canadian NM cable
- (3) 4-port push wire nuts with clear caps for quick and reliable mains voltage connections
- Low noise toroidal wound magnetic step down transformer
- Thermally protected
- Dual tap 120 or 277V 60Hz input provides 12V at 10W output
- Gx5.3 socket for bi-pin 12V LED MR16 lamps
- Compatible with a broad range of trim styles and optical distributions
- Friction blades hold trim tight to ceiling surface, gasket minimizes light leaks
- Type IC thermally protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations
- Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013
- Wet location listed in covered ceilings and IP44 certified with select lens trims
- Airtight per ASTM-E283
- Can be used for State of California Title 24 high efficacy luminaire compliance with designated trims and CA JA8-2016-E or JA8-2019-E labeled lamps
- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
- Contains no mercury or lead and RoHS compliant
- One-year limited warranty
