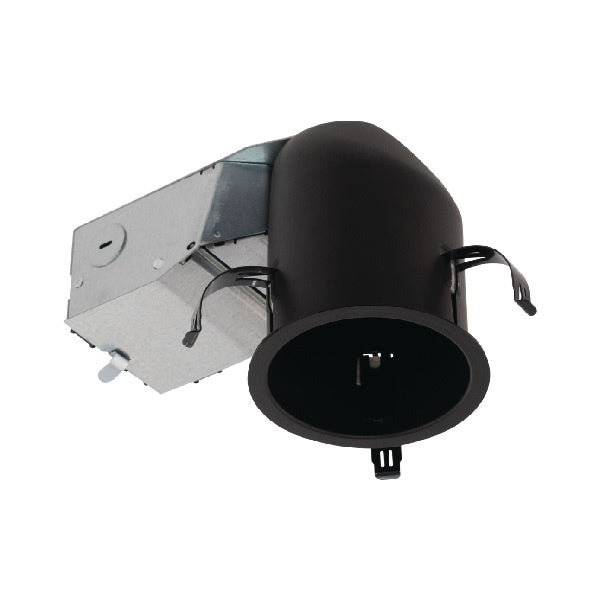

Halo Recessed H36PAR16RICAT 3" Shallow Line Voltage Remodel Housing, GU10 Base, 120V
Halo Recessed H36PAR16RICAT 3" Shallow Line Voltage Remodel Housing, GU10 Base, 120V
Regular price
Price:
$34.02
Regular price
Price:
Sale price
$34.02
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
Housing
Housing
- Single wall deep drawn aluminum housing painted matte black for a visually dark interior
- Accommodates ceilings from 3/8" to 1-1/4" thick
- Shipped with overspray protector installed
- Captive preinstalled mounting springs retain housing securely in ceiling.
- Housing can be removed from below the ceiling for service or splice inspection
- Closed cell gaskets achieve restrictive airflow requirements without additional gaskets or caulking
- Compact galvanized steel junction box with 10in3 internal volume
- Listed for (6) #12 AWG 90˚ C splice conductors
- Hinged door is retained and provides easy access to field wiring
- (3) 1/2" conduit pry-outs
- (3) Slide-N-Side non-metallic (NM) wire traps allows wiring outside the box
- Accepts 14-2, 14-3, 12-2, 12-3 U.S. and 14-2, 14-3, 12-2 Canadian NM cable
- Quick Connect remodel wiring tray holds (3) 4-port push wire nuts facilitating mains voltage connections
- GU10 socket for 120V LED PAR16 lamps
- Compatible with a broad range of trim styles and optical distributions
- Fiction blades hold trim tight to ceiling surface, gasket minimizes light leaks
- Use with die cast flange styles
- Type IC thermally protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations
- Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013
- Wet location listed in covered ceilings and IP44 certified with select lens trims
- Airtight per ASTM-E283
- Can be used for State of California Title 24 high efficacy luminaire compliance with designated trims and CA JA8-2016-E or JA8-2019-E labeled lamps
- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
- Contains no mercury or lead and RoHS compliant
- One-year limited warranty
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
