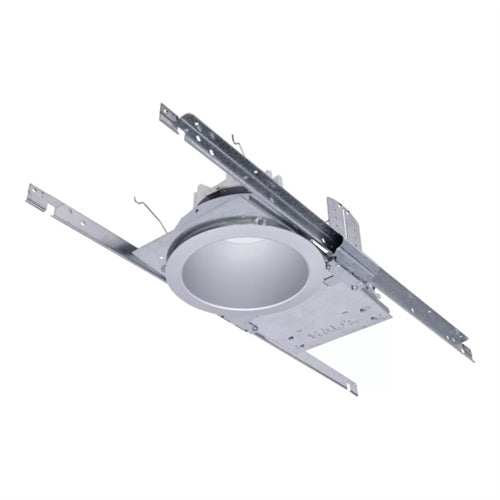

Halo Recessed Commercial HC625D0106' New Construction Downlight Housing, 2500 Lumens, 120-277V
Halo Recessed Commercial HC625D0106' New Construction Downlight Housing, 2500 Lumens, 120-277V
Regular price
Price:
$96.21
Regular price
Price:
Sale price
$96.21
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Housing Frame
Housing Frame
- Boat shaped galvanized steel plaster frame with adjustable plaster lip
- Accommodates 1/2" to 1-1/2" thick ceilings
- Installs in new construction or from below the finished ceiling (non-accessible) for remodeling (with mounting bars removed)
- Provided with two remodel clips to secure the frame to the ceiling
- Adjusts 2" vertically from above and below the ceiling
- Use with the included mounting bars or with 1/2" Electric Metallic Tube (EMT)
- Removable to facilitate remodeling installation from below the finished ceiling
- Captive pre-installed No Fuss mounting bars lock to T-grid with screwdriver or pliers
- Centering detents allow for consistent positioning of fixtures
Driver
- Field-replaceable constant current driver provides low noise operation
- Universal 120-277VAC 50/60Hz input standard
- Continuous, 1% to 100% dimming with 0-10V analog control
- Optional low-voltage DC driver for use with Distributed Low Voltage Power (DLVP) system
- Distributed Low Voltage Power (DLVP) system combines power, lighting and controls with ease of installation (refer to DLVP Design Guide at www.cooperlighting.com for details)
Junction Box
- Galvanized steel junction box
- 20 in3 internal volume excluding voltage barrier
- 25 in3 internal total volume
- Voltage barrier for 0-10V dimming wires (occupies one 1/2" pry-out space)
- Listed for eight #12 AWG (four in, four out) 90˚C conductors and feed-thru branch wiring
- Three 1/2" and two 3/4" trade size pry-outs available
- Three 4-port push wire nuts for mains voltage with 1-port for fixture connection
Warranty
- Five year limited warranty
