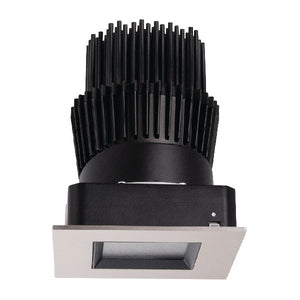

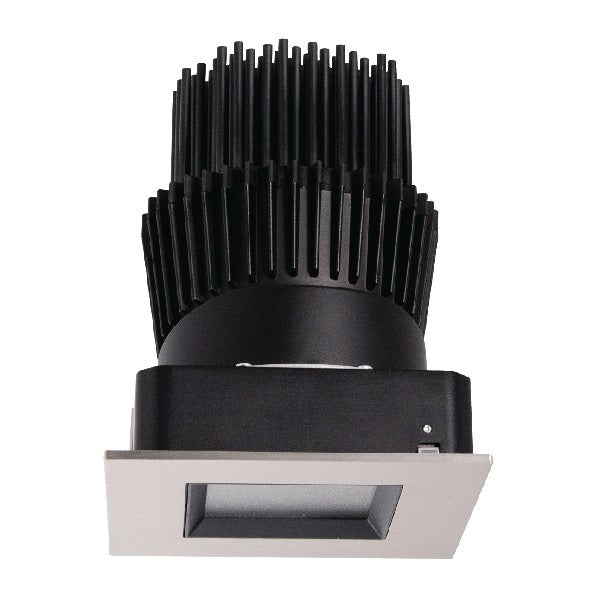

Halo Recessed HL36SAR13930ED010ICAT 3" Square Shallow Directional IC Remodel Housing, 13W, No Optic, 90 CRI, 3000K Color Temperature, 120V Phase Cut 1% Dimming, 120-277V 0-10V 1% Dimming
Halo Recessed HL36SAR13930ED010ICAT 3" Square Shallow Directional IC Remodel Housing, 13W, No Optic, 90 CRI, 3000K Color Temperature, 120V Phase Cut 1% Dimming, 120-277V 0-10V 1% Dimming
Regular price
Price:
$159.05
Regular price
Price:
Sale price
$159.05
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Module
Module
- Module installs from below with the adjustment mechanism aimed at nadir and allows housing to be articulated
- Module can be removed for service or splice inspection
Mounting Clamps
- Integral mounting clamps tighten from below using a #2 Philips screwdriver and accommodate 1/2†to 1-1/4†thick ceilings
Adjustment Mechanism
- Rotates 360 degrees, tilts 35 degrees and locks in position maintaining any aiming angle
- Angle markings assist in repeatable settings
- Translating center beam optics aligns axis of primary reflector with aperture from nadir to 35 degrees
LED
- Proximity phosphors over chip on board LEDs provide a uniform source with high efficiency and no pixilation
- Fixed 2700K, 3000K, 3500K and 4000K CCT color temperatures, Color accuracy within 3 SDCM and 90 CRI minimum
- Passive cooling achieves L70 at 50,000 hours Primary Optic
- Precision molded optics deliver highly efficient and uniform patterns
- Various patterns are available and can be interchanged without tools
Media
- Integral media holder accepts up to (2) 2†diameter 3.0mm thick color filters or lens
Trims
- Die cast aluminum trims are available in open, lens and lens wall wash styles
- Polymer non-conductive trim meets many local code requirements for ‘dead front’
- Physical and optical cutoff provides visual comfort
- Light trap eliminates spill light with flange
- Multiple finishes to match many décors
Shielding
- Micro-prismatic lens standard with lens trims
Trim Retention
- Attached by (8) rare earth Neodymium magnets, holds trim securely to the ceiling
Driver
- Constant current driver provides noise free operation
- UNV 120-277VAC 50/60Hz input
- Continuous, flicker-free 1% dimming, available with LE/TE phase cut (at 120V only) and 0-10V analog control
Remote Junction Box / Driver Housing
- Galvanized steel junction box / driver housing with 18 in3 internal volume
- Listed for (12) #12 AWG 90Ëš C splice conductors
- (2) 1/2" conduit pry-outs positioned to allow straight conduit runs
- (2) Slide-N-Side non-metallic (NM) wire traps
- Accepts 14-2, 14-3, 12-2, 12-3 U.S. and 14-2, 14-3, 12-2 Canadian NM cable
- (3) 4-port push wire nuts mains voltage connections
Compliance
- Type IC inherently protected (13W only), suitable for direct contact to air permeable insulation and cULus listed for damp locations
- Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013
- Wet location listed in covered ceilings and IP65 certified with select trims
- Airtight per ASTM-E283-04
- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
- Suitable for use in plenum spaces per NEC 300.22(C)(2) requirements
- EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
- Contains no mercury or lead and RoHS compliant1
- Photometric testing in accordance with IES LM-79-08
- Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
- Can be used for State of California Title 24 high efficacy LED compliance under JA8, reference Modernized Appliance Efficiency Database System (MAEDBS) for 2019 JA8 High Efficacy Lighting1
- • ENERGY STAR certified, reference certified light fixtures database
Warranty
- Five year limited warranty
