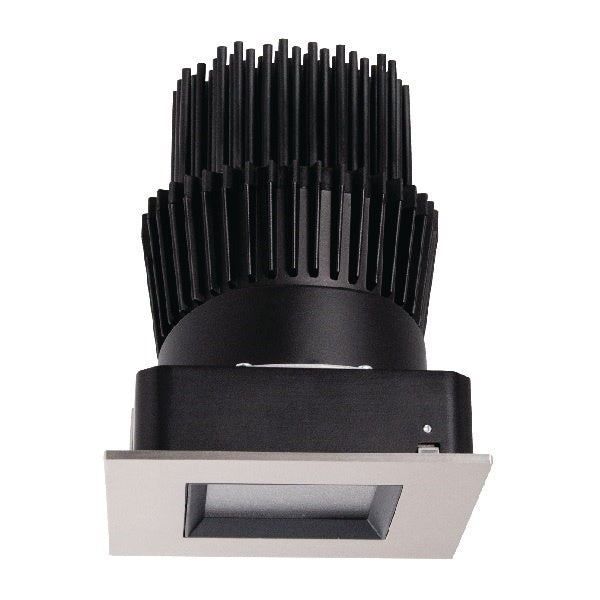

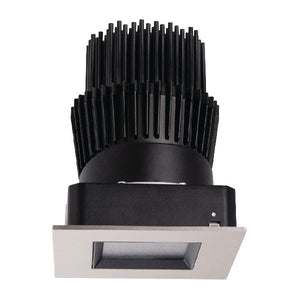

Halo Recessed HL36SAR20SP935ED010TAT 3" Square Shallow Directional Remodeler Housing, 20W, Spot Distribution, 90 CRI, 3500K Color Temperature, 120-277V, Cut 1% Dimming, 0-10V 1% Dimming, Thermally Protected and Airtight
Halo Recessed HL36SAR20SP935ED010TAT 3" Square Shallow Directional Remodeler Housing, 20W, Spot Distribution, 90 CRI, 3500K Color Temperature, 120-277V, Cut 1% Dimming, 0-10V 1% Dimming, Thermally Protected and Airtight
Regular price
Price:
$168.52
Regular price
Price:
Sale price
$168.52
Unit price
per
Ordering a large quantity?
Request a quote
description
RODUCT SPECIFICATIONS
Module
Module
- Module installs from below with the adjustment mechanism aimed at nadir and allows housing to be articulated
- Module can be removed for service or splice inspection
- Integral mounting clamps tighten from below using a #2 Philips screwdriver and accommodate 1/2" to 1-1/4" thick ceilings
- Rotates 360 degrees, tilts 35 degrees and locks in position maintaining any aiming angle
- Angle markings assist in repeatable settings
- Translating center beam optics aligns axis of primary reflector with aperture from nadir to 35 degrees
- Proximity phosphors over chip on board LEDs provide a uniform source with high efficiency and no pixilation
- Fixed 2700K, 3000K, 3500K and 4000K CCT color temperatures, Color accuracy within 3 SDCM and 90 CRI minimum
- Passive cooling achieves L70 at 50,000 hours
- Precision molded optics deliver highly efficient and uniform patterns
- Various patterns are available and can be interchanged without tools
- Integral media holder accepts up to (2) 2" diameter 3.0mm thick color filters or lens
- Constant current driver provides noise free operation
- UNV 120-277VAC 50/60Hz input
- Continuous, flicker-free 1% dimming, available with LE/TE phase cut (at 120V only) and 0-10V analog control
- Galvanized steel junction box / driver housing with 18 in3 internal volume
- Listed for (12) #12 AWG 90 degrees C splice conductors
- (2) 1/2" conduit pry-outs positioned to allow straight conduit runs
- (2) Slide-N-Side non-metallic (NM) wire traps
- Accepts 14-2, 14-3, 12-2, 12-3 U.S. and 14-2, 14-3, 12-2 Canadian NM cable
- (3) 4-port push wire nuts mains voltage connections
- Type IC inherently protected (13W only), suitable for direct contact to air permeable insulation and cULus listed for damp locations
- Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013
- Wet location listed in covered ceilings and IP65 certified with select trims
- Airtight per ASTM-E283-04
- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
- EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
- Contains no mercury or lead and RoHS compliant
- Photometric testing in accordance with IES LM-79-08
- Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
- Can be used for State of California Title 24 high efficacy LED compliance under JA8, reference Modernized Appliance Efficiency Database System (MAEDBS) for 2016 JA8 High Efficacy Lighting
- ENERGY STAR certified, reference certified light fixtures database
- Five year limited warranty
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
