Home > Halo Lighting > Halo Recessed HLA305FL9271EMWR 3" Round LED Directional Downlight with Remote Driver/ Junction Box, 500 Lumens, 40 Degree Flood Distribution, 90 CRI, 2700K, 120V, LE & TE Phase Cut 5% Dimming, Matte White Flange Finish
Halo Recessed HLA305FL9271EMWR 3" Round LED Directional Downlight with Remote Driver/ Junction Box, 500 Lumens, 40 Degree Flood Distribution, 90 CRI, 2700K, 120V, LE & TE Phase Cut 5% Dimming, Matte White Flange Finish
Halo Recessed HLA305FL9271EMWR 3" Round LED Directional Downlight with Remote Driver/ Junction Box, 500 Lumens, 40 Degree Flood Distribution, 90 CRI, 2700K, 120V, LE & TE Phase Cut 5% Dimming, Matte White Flange Finish
Regular price
Price:
$33.65
Regular price
Price:
Sale price
$33.65
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
Housing
Housing
- Die cast aluminum mounting frame with round or square flange
- Gimbal rotates 360 degree and tilts +/- 30 degree holding any aiming angle
- Aluminum heat sink provides passive thermal cooling achieving L70 at 50,000 hours in IC and non-IC applications
- Closed cell gasket achieves restrictive airflow and wet location listing without additional gaskets or caulking
- Pre-galvanized steel mounting frame locates fixture fittings during electrical rough in and provides cutout guidance for drywall contractor
- Provides tool-less attachment of remote driver / junction box
- Flood - FL
- Optical design creates a clean, uniform 40-degree beam distribution
- Plurality of mid power LED’s provides a uniform source with high efficiency and long life
- Available in 90 CRI minimum, R9 greater than 50 provides high color rendering
- Dedicated color temperature, select 2700K or 3000K CCT, color accuracy within 4 SDCM
- Meets ENERGY STAR color angular uniformity requirements, deviation is less than 0.006 u' v'
- Pre-galvanized steel driver / junction box with captive hinged junction box cover
- Listed for (6) #12 AWG 90 degree C splice conductors, 2-in, 2-out plus (2) ground
- (2) ½" conduit pry-outs
- (2) Slide-N-Side non-metallic (NM) wire traps allows wiring outside the box
- Accepts 14-2, 14-3, 12-2, 12-3 U.S. and 14-2, 14-3, 12-2 Canadian NM cable
- (3) 4-port push wire nuts with clear caps for quick and reliable mains voltage connections
- Integral mounting slots facilitate direct mounting to building structure or mounting frame
- 120V 60 Hz constant current driver provides noise free operation
- Continuous, flicker-free dimming from 100% to 5% with select leading or trailing edge 120V phase cut dimmers
- Plenum rated inline electrical quick connect provides low voltage connection to fixture fitting

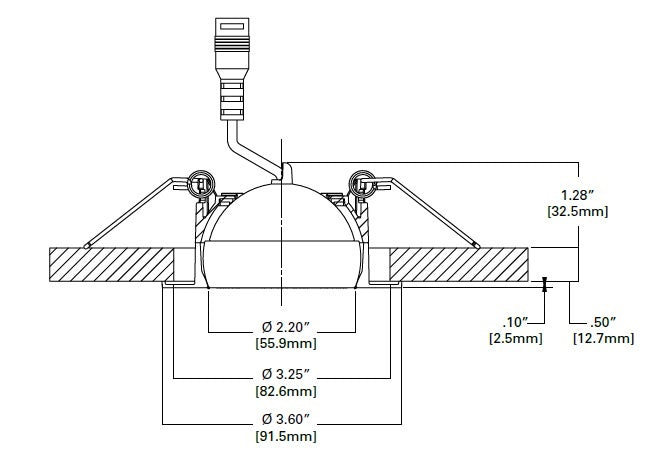

- Can be installed in 1/2" to 1-1/4" thick ceilings in as little as 3-1/2” plenum height
- Cutout utilizes standard round hole saw sizes, cutout template provided
- Heat treated springs hold fixture fitting securely in the ceiling eliminating light leaks
- Can be removed from below the ceiling for service or replacement
- cULus certified type IC suitable for direct contact with air permeable insulation
- Not recommended for use in direct contact with spray foam insulation, reference NEMA LSD57-2013
- Wet location listed and IP44 ingress protection
- Airtight per ASTM-E283-04
- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
- EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
- Contains no mercury or lead and RoHS compliant
- Photometric testing in accordance with IES LM-79-08
- Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
- Can be used for State of California Title 24 high efficacy LED compliance under JA8, reference Modernized Appliance Efficiency Database System (MAEDBS) for 2016 JA8 High Efficacy Lighting
- ENERGY STAR certified, reference "Certified Light Fixtures" database
- Five year warranty standard.
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
