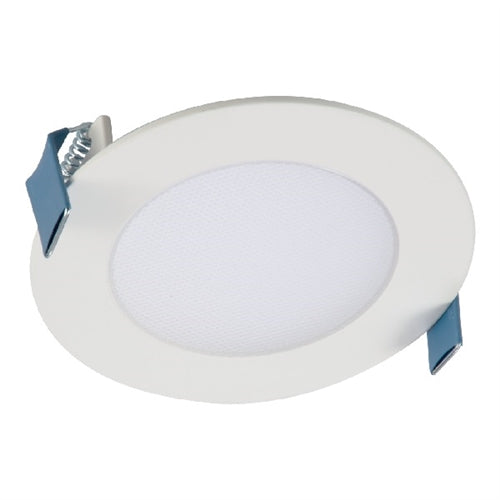

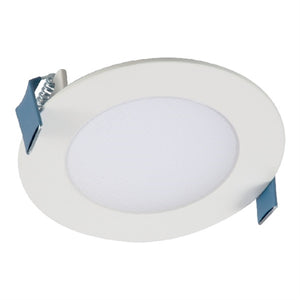

Halo Recessed HLB4069BLE40AWH Smart 4" LED Lens Downlight with Bluetooth Mesh Connectivity and Remote Driver/ Junction Box, 600 Lumens, 90 CRI, Matte White Baffle
Halo Recessed HLB4069BLE40AWH Smart 4" LED Lens Downlight with Bluetooth Mesh Connectivity and Remote Driver/ Junction Box, 600 Lumens, 90 CRI, Matte White Baffle
Regular price
Price:
$47.52
Regular price
Price:
Sale price
$47.52
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
Wireless System
Wireless System
- For use with the HALO Home mobile app
- Bluetooth low energy (BLE) mesh allows on/off, white tuning and dimming to be controlled wirelessly with companion wall stations, smart phones and tablets using HALO Home mobile application
- Setup Groups, Scenes and Schedules to automate lighting with the HALO Home mobile app
- See HALO Home Quick Start Guide for wireless setup, guidance and troubleshooting: BringHaloHome.com
- HALO Home products work better together Smartphone(s) will need to be within range of HALO Home device to control (~35 ft)
- Device-to-device communication is ~100 ft line-ofsight
- Expand and strengthen the Bluetooth network range by adding HALO Home devices. Learn more at BringHaloHome.com
- Closed cell gasket achieves restrictive airflow and wet location listing without additional gaskets or caulking
- Precision acrylic light guide organizes source flux into wide distribution with 1.4 spacing criteria, useful for general area illumination
- Plurality of mid power LED’s provides a uniform source with high efficiency and long life
- 90 CRI minimum; R9 greater than 50 provides high color rendering
- Color is tunable through the HALO Home ap
- Meets ENERGY STAR color angular uniformity requirements; Deviation is less than 0.006 u' v'
- Pre-galvanized steel driver/junction box with captive hinged cover
- Listed for six #12 AWG 90° C splice conductors: two in, two out plus two ground
- Two 11/2" conduit pry-outs
- Two Slide-N-Side non-metallic (NM) wire traps allows wiring outside the box
- Accepts NM cable types: 14-2, 14-3, 12-2, 12-3 (U.S.) and 14-2, 14-3, 12-2 (Canadian)
- Three 4-port push wire nuts with clear caps for quick and reliable mains voltage connections
- Integral mounting holes facilitate direct mounting to building structure or mounting fram
- 6-, 12-, and 20-ft extension cables available for centralized junction box installation
- Available in 120V providing noise free operation
- Continuous flicker-free dimming down to 5% with HALO Home Controllers (Accessory & Anyplace Dimmers and Scene Keypad)
- Plenum rated inline electrical quick connect provides low voltage connection to fixture fitting, CMP/FT6 rated
Installation
- Can be installed in 1/2" to 1-1/4" thick ceiling
- Cutout utilizes standard round hole saw sizes; cutout template provided
- Heat treated springs hold fixture fitting securely in the ceiling eliminating light leak
- Housing is less than 1/2" thick and can span a 2" nominal framing member
- Can be removed from below the ceiling for service or replacement
- Pre-galvanized steel mounting frame locates fixture fittings during electrical rough-in and provides cutout guidance for drywall contractor
- Provides attachment of remote driver/junction box
Compliance
Warranty- UL Certified type IC suitable for direct contact with air permeable insulation
- Not recommended for use in direct contact with spray foam insulation (reference NEMA LSD57-2013)
- Wet location listed and IP44 ingress protection
- Airtight per ASTM-E283-04
- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
- EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
- Contains no mercury or lead and RoHS compliant
- Photometric testing in accordance with IES LM-79-08
- Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
- State of California Title 24 high efficacy
- LED compliance under JA8, reference Modernized Appliance Efficiency Database System (MAEDBS) for 2019 JA8 High Efficacy Lighting
- ENERGY STAR® certified (reference "Certified Light Fixtures" database)
- Five-year limited warranty
