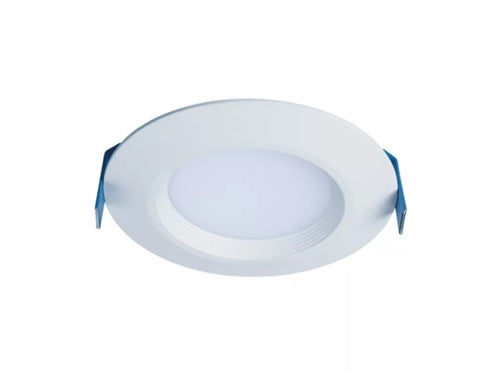

Halo Recessed HLBC4LS9FSD2WE010MWR 4" Ultra-Slim Regressed Canless Downlight, 600/900 Selectable Lumens, 90 CRI, Selectable CCT with D2W Option, 120/277V 50Hz/60Hz, 0-10V Dimmable, Matte White Flange
Halo Recessed HLBC4LS9FSD2WE010MWR 4" Ultra-Slim Regressed Canless Downlight, 600/900 Selectable Lumens, 90 CRI, Selectable CCT with D2W Option, 120/277V 50Hz/60Hz, 0-10V Dimmable, Matte White Flange
Regular price
Price:
$37.13
Regular price
Price:
Sale price
$37.13
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Construction
Construction
- Die cast aluminum flange
- Regressed lens
- High impact diffuse lens provides shielding to the light guide minimizing pixilation
- Use the CCT select switch to choose between D2W, 2700K, 3000K, 3500K, 4000K, and 5000K CCT
- D2W option starts at 3000K and warms to 1800K as fixture dims
- Use the lumen select switch on lumen selectable fixtures to choose brightness level
LED Array
- Mid power LED array provides a uniform source with high efficiency and no pixilation
- 90 CRI minimum, R9 greater than 50
- Color accuracy at 4 SDCM in between endpoints, provide color accuracy and uniformity
- Color Temperature (CCT) is set to a factory default of 3000K
Gasket
- Closed cell gasket achieves restrictive airflow and wet location listing without additional gaskets or caulking
Junction Box
- Die formed metal driver / junction box with captive hinged junction box cover
- Listed for (6) #12 AWG 90˚ C splice conductors, 2-in, 2-out plus (2) ground
- (4) 1/2" conduit pry-outs
- Accepts 14-2, 14-3, 12-2, 12-3 U.S. and 14-2, 14-3, 12-2 Canadian NM cable
- (3) 4-port push wire nuts with clear caps for quick and reliable mains voltage connections
- Integral mounting facilitates direct mounting to building structure or mounting frame
Driver
- Available in 120V or 120-277V, providing noise free operation
- Continuous flicker-free dimming down to 5% with select dimmers
- Plenum rated inline electrical quick connect provides low voltage connection to fixture fitting, CMP/FT6 rated
Installation
- Can be installed in 1/2” to 1-1/4” thick ceilings
- Round ceiling cutout
- Option for retrofit installation
- Heat treated springs hold fixture fitting securely in the ceiling eliminating light leaks
- Fixture is less than 1/2" thick and can span a 2” nominal framing member
- Can be removed from below the ceiling for service or replacement
Compliance
- UL Certified US and Canada Type IC suitable for direct contact with air permeable insulation
- Not recommended for use in direct contact with spray foam insulation, reference NEMA LSD57-2013
- Wet location listed and IP44 ingress protection
- Airtight per ASTM-E283-04
- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
- EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
- Contains no mercury or lead and RoHS compliant
- Photometric testing in accordance with IES LM-79-08
- Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
- Can be used for State of California Title 24 high efficacy LED compliance under JA8, reference Modernized Appliance Efficiency Database System (MAEDBS) for 2022 JA8 High Efficacy Lighting
- ENERGY STAR certified, reference "Certified Light Fixtures" database
Warranty
- Five year limited warranty
