Home > Halo Lighting > Halo Halo Recessed HLBPH609FS6 6" Round LED Lens Downlight with Remote Driver/ Junction Box, 900 Lumens, 90 CRI, Field Selectable 2700K-6000K, 120V, Matte White Flange Finish
Halo Halo Recessed HLBPH609FS6 6" Round LED Lens Downlight with Remote Driver/ Junction Box, 900 Lumens, 90 CRI, Field Selectable 2700K-6000K, 120V, Matte White Flange Finish
Halo Halo Recessed HLBPH609FS6 6" Round LED Lens Downlight with Remote Driver/ Junction Box, 900 Lumens, 90 CRI, Field Selectable 2700K-6000K, 120V, Matte White Flange Finish
Regular price
Price:
$24.22
Regular price
Price:
Sale price
$24.22
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
Housing
Housing
- Plastic mounting frame with integral flange provides passive thermal cooling achieving L70 at 50,000 hours in IC and non-IC applications
- Precision acrylic light guide organizes source flux into wide distribution with 1.28 spacing criteria, useful for general area illumination
- Plurality of mid power LED’s provides a uniform source with high efficiency and long life
- Available in 90 CRI minimum, R9 greater than 50 provides high color rendering
- Field Selectable color temperature (6 colors):
- 2700K, 3000K, 3500K, 4000K, 5000K, & 6500K
- Color accuracy of 4 step at the 2700K, 7 step for others
- Meets ENERGY STAR color angular uniformity requirements, deviation is less than 0.006 u' v'
- Die formed metal driver / junction box with captive hinged junction box cover
- Listed for (6) #12 AWG 90 degrees C splice conductors 2-in, 2-out plus (2) ground
- (2) 1/2" conduit pry-outs
- (2) Slide-N-Side non-metallic (NM) wire traps accept 14-2, 14-3, 12-2, 12-3 U.S. and 14-2, 14-3, 12-2 Canadian NM cable
- (3) 4-port push wire nuts for quick and reliable mains voltage connections
- Integral mounting facilitates direct mounting to building structure or mounting frame
- 120V 60 Hz constant current driver provides noise free operation
- Continuous, flicker-free dimming from 100% to 5% with select leading or trailing edge 120V phase cut dimmers

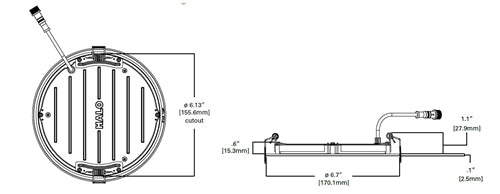

- Can be installed in 3/8" to 1-1/4" thick ceilings
- Round ceiling cutout
- Heat treated springs hold fixture fitting securely in the ceiling eliminating light leaks
- Housing is less than 1/2" thick and can span a 2" nominal framing member
- Can be removed from below the ceiling for service or replacement
- UL Certified US and Canada Type IC suitable for direct contact with air permeable insulation
- Not recommended for use in direct contact with spray foam insulation, reference NEMA LSD57-2013
- Wet location listed and IP44 ingress protection
- Airtight per ASTM-E283-04
- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirement
- EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
- Contains no mercury or lead and RoHS compliant¹
- Photometric testing in accordance with IES LM-79-08
- Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
- Can be used for State of California Title 24 high efficacy LED compliance under JA8, reference Modernized Appliance Efficiency Database System (MAEDBS) for 2022 JA8 High Efficacy Lighting¹
- ENERGY STAR® certified, reference "Certified Light Fixtures" database
- Five year limited warranty
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
