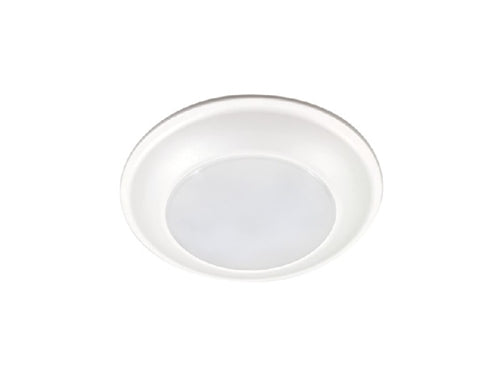

Halo Recessed HLS6099501EWH-6BP 6" Dimmable LED Surface Light, 750 Lumens, 90 CRI, 5000K, 120V, Matte White, 6 Bulk Pack
Halo Recessed HLS6099501EWH-6BP 6" Dimmable LED Surface Light, 750 Lumens, 90 CRI, 5000K, 120V, Matte White, 6 Bulk Pack
Regular price
Price:
$84.02
Regular price
Price:
Sale price
$84.02
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Construction
Construction
- Stamped aluminum
- Precision engineered optic provides uniform luminance from a low-profile convex lens
- Removable lens for easy install from below installation
- Backlit LED technology
- Color Temperature options include: 3000K, 4000K or 5000K (4-inch and 6-inch only)
- 90 CRI is standard
- L70 at 50,000 hours projected in accordance with TM-21
- Integral 120V 60Hz constant current driver provides virtually noise free operation.
- Continuous, flicker-free dimming from 100% to 10% with select leading or trailing edge 120V phase cut dimmers. See dimming guide.
- Dimming to 10% is best assured using dimmers with low end trim adjustment. Consult dimmer manufacturer for compatibility and conditions of use. (Note some dimmers require a neutral in the wallbox.)
- Inline electrical quick connect (provided) provides mains connections
- HLS series may be used in compatible electrical junction boxes in direct contact with insulation including spray foam insulation
- Install from below design
- Suitable for installation in many 3-1/2" and 4" octagon and round electrical junction boxes.
- Compatible with compact (pancake) junction boxes
- Installer must ensure compatibility of fit, wiring and proper mounting in the electrical junction box. This includes all applicable national and local electrical and building coded NEMA LSD 57-2013
- UL Certified for US and Canada
- Wet Location listed (except for 9-inch motion sensor version)
- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements.
- EMI/RFI emissions per FCC 47CFR Part 15B
- Contains no mercury or lead and RoHS compliant.
- Photometric testing in accordance with IES LM-79-08
- Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11.
- Can be used for State of California Title 24 high efficacy luminaire compliance
- Can be used for International Energy Conservation Code (IECC) and Washington State Energy Code high efficiency luminaire Compliance
- Five year limited warranty
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
