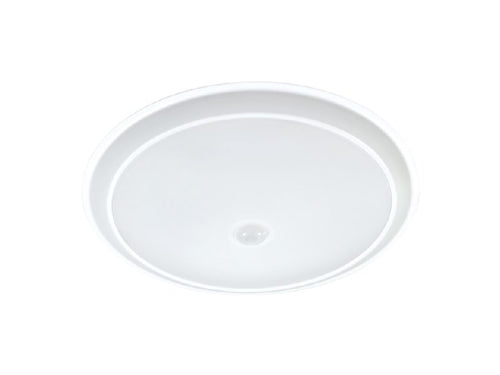

Halo Recessed HLSMS9129501EWH 9" Motion Sensor Dimmable LED Surface Light, 1200 Lumens, 90 CRI, 5000K, LE and TE Phase Cut 10% Dimming, Matte White Flange

Halo Recessed HLSMS9129501EWH 9" Motion Sensor Dimmable LED Surface Light, 1200 Lumens, 90 CRI, 5000K, LE and TE Phase Cut 10% Dimming, Matte White Flange

Price: $37.48
Price: $37.48

MODEL: Halo-HLSMS9129501EWH
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

PRODUCT FAMILY SPECIFICATIONS
Construction
  • Stamped aluminum
Optics
  • Precision engineered optic provides uniform luminance from a low-profile convex lens
  • Removable lens for easy install from below installation
LED
  • Backlit LED technology
  • Color Temperature options include: 3000K, 4000K or 5000K (4-inch and 6-inch only)
  • 90 CRI is standard
  • L70 at 50,000 hours projected in accordance with TM-21
Driver
  • Integral 120V 60Hz constant current driver provides virtually noise free operation.
  • Continuous, flicker-free dimming from 100% to 10% with select leading or trailing edge 120V phase cut dimmers. See dimming guide.
  • Dimming to 10% is best assured using dimmers with low end trim adjustment. Consult dimmer manufacturer for compatibility and conditions of use. (Note some dimmers require a neutral in the wallbox.)
  • Inline electrical quick connect (provided) provides mains connections
Electrical Junction Box Mounting
  • HLS series may be used in compatible electrical junction boxes in direct contact with insulation including spray foam insulation
  • Install from below design
  • Suitable for installation in many 3-1/2" and 4 octagon and round electrical junction boxes.
  • Compatible with compact (pancake) junction boxes
  • Installer must ensure compatibility of fit, wiring and proper mounting in the electrical junction box. This includes all applicable national and local electrical and building coded NEMA LSD 57-2013
Compliance
  • UL Certified for US and Canada
  • Wet Location listed (except for 9-inch motion sensor version)
  • Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements.
  • EMI/RFI emissions per FCC 47CFR Part 15B
  • Contains no mercury or lead and RoHS compliant.
  • Photometric testing in accordance with IES LM-79-08
  • Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11.
  • Can be used for State of California Title 24 high efficacy luminaire compliance
  • Can be used for International Energy Conservation Code (IECC) and Washington State Energy Code high efficiency luminaire Compliance
Warranty
  • Five year limited warranty
