Home > Halo Lighting > Halo Recessed HLSMS9129FS1E 9" LED Disk Light with Motion Sensor, 1300 lumens, 90 CRI, 5CCT (2700K, 3000K, 3500K, 4000K, 5000K), Phase Cut Dimming 10%, Matte White, Single Pack

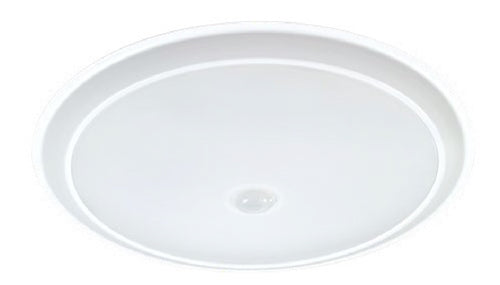

Halo Recessed HLSMS9129FS1E 9" LED Disk Light with Motion Sensor, 1300 lumens, 90 CRI, 5CCT (2700K, 3000K, 3500K, 4000K, 5000K), Phase Cut Dimming 10%, Matte White, Single Pack
Halo Recessed HLSMS9129FS1E 9" LED Disk Light with Motion Sensor, 1300 lumens, 90 CRI, 5CCT (2700K, 3000K, 3500K, 4000K, 5000K), Phase Cut Dimming 10%, Matte White, Single Pack
Regular price
Price:
$36.84
Regular price
Price:
Sale price
$36.84
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Construction
Construction
- Stamped steel
- Precision engineered optic provides uniform luminance from a low-profile convex lens
- Removable lens for easy install from below installation
- Backlit LED technology
- 5CCT Field Selectable color temperature (2700K, 3000K, 3500K, 4000K, 5000K)
- 90 CRI is standard
- Color accuracy within 6SDCM at the CCT endpoints, provide color accuracy and uniformity.
- Expected Life: L70 at 50,000 hours projected in accordance with TM-21
- Extension Springs for 5" & 6" housings included in the box
- Not for use in recessed housing in the direct contact with spray foam insulation refer to NEMA LSD 57-2013
- Compatible with HALO 5" and 6" housings
- Wire nuts provided for mains connections
- The included E26 medium screw-based Edison adapter provides easy retrofit of incandescent housings (non-California products only)
- Integral 120V 60Hz constant current driver provides virtually noise free operation.
- Continuous, flicker-free dimming from 100% to 10% with select leading or trailing edge 120V phase cut dimmers. See dimming guide.
- Dimming to 10% is best assured using dimmers with low end trim adjustment. Consult dimmer manufacturer for compatibility and conditions of use. (Note some dimmers require a neutral in the wallbox.)
- Inline electrical quick connect (provided) provides mains connections
- TIPS: For optimal dimming performance, consider dimmers with low-end trim adjustment and note that some dimmers require a neutral wire in the wallbox. (See the HLS Dimming Guide and then consult dimmer manufacturer for compatibility and conditions of use.)
- HLS series may be used in compatible electrical junction boxes in direct contact with insulation including spray foam insulation
- Install from below design
- Suitable for installation in many 3-1/2” and 4” octagon and round electrical junction boxes.
- Compatible with compact (pancake) junction boxes
- Installer must ensure compatibility of fit, wiring and proper mounting in the electrical junction box. This includes all applicable national and local electrical and building coded NEMA LSD 57-2013
- UL Certified for US and Canada
- Wet Location listed (except for 9-inch motion sensor version)
- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements.
- Airtight per ASTM-E283 (no gasket necessary)
- EMI/RFI emissions per FCC 47CFR Part 15B
- Contains no mercury or lead and RoHS compliant.
- Photometric testing in accordance with IES LM-79-08
- Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11.
- Can be used for State of California Title 24 high efficacy luminaire compliance
- Can be used for International Energy Conservation Code (IECC) and Washington State Energy Code high efficiency luminaire Compliance
- ENERGY STAR Certified luminaire - consult ENERGY STAR Certified Product List
- Five year limited warranty
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
