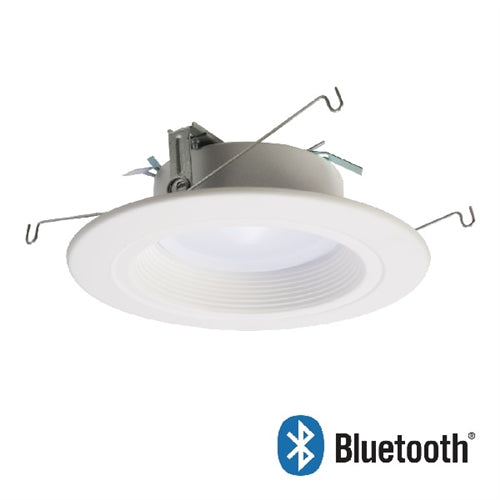

Halo Home RL56129BLE40AWH 5" or 6" Dimmable All-Purpose LED Retrofit Module with SeleCCTable Switch in Mobile App, 1200 Lumens, 90 CRI, Bluetooth Mesh Wireless Control
Halo Home RL56129BLE40AWH 5" or 6" Dimmable All-Purpose LED Retrofit Module with SeleCCTable Switch in Mobile App, 1200 Lumens, 90 CRI, Bluetooth Mesh Wireless Control
Regular price
Price:
$37.27
Regular price
Price:
Sale price
$37.27
Unit price
per
MODEL: Halo-RL56129BLE40AWH
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
Wireless System
Wireless System
- For use with the Halo Home mobile app
- Bluetooth low energy (BLE) mesh allows on/off, white tuning and lumen output to be controlled wirelessly with companion wall switches, smart phones and tablets using HALO Home mobile application
- Setup groups, scenes and schedules to automate lighting with the HALO Home mobile app
- See HALO Home Quick Start Guide for wireless setup, guidance and troubleshooting: www.cooperlighting.com
- HALO Home products work better together. Smartphone(s) will need to be within range of HALO Home device to control
- Expand and strengthen the Bluetooth network range by adding HALO Home devices.
- Module construction includes LED array, heat sink, reflector, lens, baffle and trim ring
- Regressed baffle
- Heat sink designed to conduct heat away from the LED array, keeping the junction temperatures below specified maximums, even when installed in insulated ceiling environments
- Use the HALO Home app to set maximum light output - choose between 600, 900 or 1200 lumens
- Mid power LED array provides a uniform source with high efficiency and no pixilation
- 90 CRI minimum, R9 greater than 50
- Color accuracy within 3 SDCM at the CCT endpoints and 4 SDCM in between endpoints, provide color accuracy and uniformity
- Color Temperature (CCT) has an adjustable range from 2700K to 5000K within the mobile app (factory default 3000K)
- 50,000 hour life
- Regressed lens
- Impact-resistant polycarbonate
- Convex form and lamp-like appearance
- Diffuse for even illumination
- Integral 120V 60 Hz constant current driver provides noise free operation
- Inline electrical quick connect and E26 adapter (included) provides mains connections
- Consult instruction sheets and Quick Start Guide for more information
- Continuous, flicker-free dimming from 100% to 5%
- Only dimmable with HALO Home devices or app
- Integral torsion springs and Push-N-Twist universal installation clips offer 2 mounting options
- Both mounting options are pre-installed and designed to fit 5" & 6" compatible recessed housings
- RL56 skins are accessory rings that attach to the RL56 for a permanent finish. Refer to the RL56 accessories specification sheet for details
- White (Paintable)
- Satin Nickel
- Tuscan Bronze
- Closed cell gaskets achieve restrictive airflow requirements without additional caulking
- UL Certified for use with Halo housings and other's housings
- Wet and Damp location listed
- Airtight certified per ASTM-E283
- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
- EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
- Contains no mercury or lead and RoHS compliant
- Photometric testing in accordance with IES LM-79-08
- Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
- Can be used for State of California Title 24 high efficacy luminaire compliance. Complies with Title 24 JA8-2016-E
- Can be used International Energy Conservation Code (IECC) high efficiency luminaire compliance
- ENERGY STAR listed, reference database for current listings
- FCC ID: 2AKCY-RL4HLBLE
- IC Code: 4706A-RL4HLBLE
- Five-year limited warranty
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
