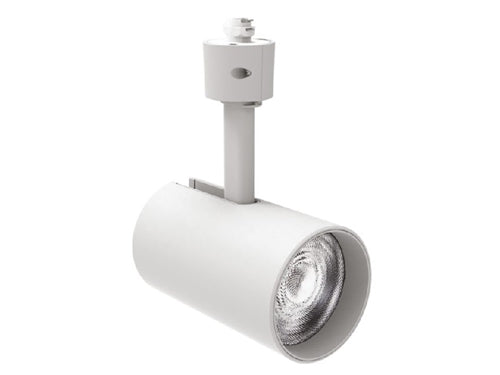

Halo Track L80925WF940P XACT Beam Mid Stem LED Light, 2500 Lumens, 36 Degree Wide Flood Optic, 4000K, 90 CRI, Matte White

Price: $235.95

MODEL: Halo-L80925WF940P

Ordering a large quantity? Request a quote

description

PRODUCT FAMILY SPECIFICATIONS
Aiming

Design

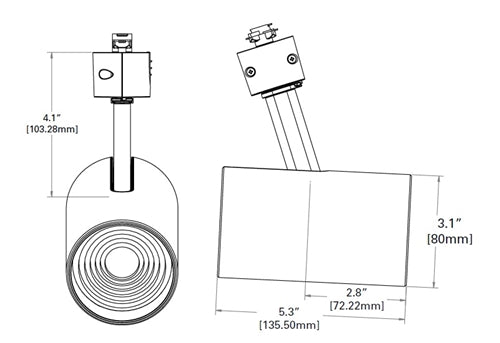

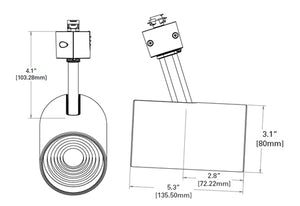

Compact mid-stem mount

Dimming

Compatible with select leading or trailing edge phase cut dimmers at 120V only, for continuous dimming 5%-100%*
Dimming only available with 120V configurations
277V option available only with Halo HTEK 277V track (L2G track connector must be used)

Compliance

cULus Listed and UL Certified
DLC Standard and DLC Premium**
NSF/ANSI 2 (NSF non-food zone compliant)
Contains no mercury or lead and RoHS compliant
May be used for State of California Title 24 residential compliance per JA8 High Efficacy Lighting certification standards; and Title 24 Nonresidential code as a dimmable LED luminaire. Refer to the CEC appliance efficiency database.
EMI/RFI emissions per FCC 47CFR Part 15 Class B consumer limits at 120V; Class A at 277V
Photometric testing in accordance with IES LM-79-08
Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11

Optics & Light Engine

Optics

Spot, wide spot, narrow flood, flood, and wide flood
12 Deg, 18 Deg, 24 Deg, 30 Deg, 36 Deg
Lens optics provide a high degree of collimation along the optical axis
Low brightness in the 809 cylinder aperture limits spill light loss on cylinder wall
Chip-on-board LED combines with XBA optic to deliver high center beam candlepower
Matte Black Barndoor Shutters provide additional cut off when used
Lumen maintenance L70 at 50,000 hours

Electrical

120V/277V; Dimming at 120V only
277V electronic driver only available for Halo HTEK track with non-dim operation. L2G track connector must be used
THD < 20%

Warranty
