Home > Halo Lighting > Halo Recessed LA56069501EWH 5" or 6" LED Adjustable Downlight, 600 Lumens, 90 CRI, 5000K, 120V, Phase Cut 10% Dimming, Matte White Baffle

  • Halo Recessed LA56069501EWH 5" or 6" LED Adjustable Downlight, 600 Lumens, 90 CRI, 5000K, 120V, Phase Cut 10% Dimming, Matte White Baffle
  • Halo Recessed LA56069501EWH 5" or 6" LED Adjustable Downlight, 600 Lumens, 90 CRI, 5000K, 120V, Phase Cut 10% Dimming, Matte White Baffle
1 2

Halo Recessed LA56069501EWH 5" or 6" LED Adjustable Downlight, 600 Lumens, 90 CRI, 5000K, 120V, Phase Cut 10% Dimming, Matte White Baffle

Halo Recessed LA56069501EWH 5" or 6" LED Adjustable Downlight, 600 Lumens, 90 CRI, 5000K, 120V, Phase Cut 10% Dimming, Matte White Baffle

Price: $29.77
Price: $29.77

MODEL: Halo-LA56069501EWH
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

PRODUCT DESCRIPTION

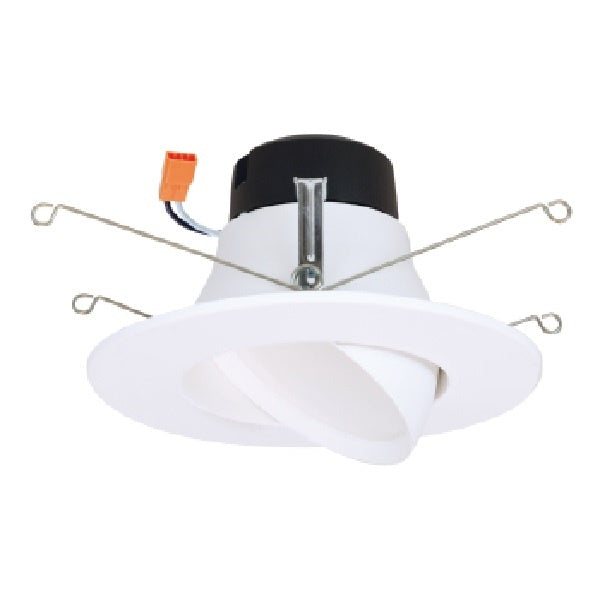

The Halo LA56 LED Adjustable Downlight series are adjustable LED Modules for 5" or 6" aperture recessed downlights. The LA56 gimbals feature adjustment of 35-degree tilt and up to 360-degree rotation. The lens provides uniform illumination and wet location listing. Precision construction makes any housing AIR-TITE for added savings and code compliance.
PRODUCT SPECIFICATIONS
Module - Trim
  • Module construction includes LED Array, heat sink, reflector, lens, baffle and trim ring.
  • Heat sink designed to conduct heat away from the LED Array, keeping the junction temperatures below specified maximums, even when installed in insulated ceiling environments
Lens
  • Regressed lens
  • Impact-resistant polycarbonate
  • Diffusing for even illumination
LED Array
  • Mid power LED array provides a uniform source with high efficiency and no pixilation.
  • 90 CRI minimum, R9 greater than 50
  • Color accuracy within 3 SDCM provide color accuracy and uniformity.
  • Color Temperatures (CCT) available in 2700K, 3000K, 3500K, 4000K, or 5000K
Optical Assembly
  • Regressed lens
  • Impact-resistant polycarbonate
  • Diffuse for even illumination
Driver
  • Integral 120V 60 Hz constant current driver provides noise free operation
  • Continuous, flicker-free dimming from 100% to 10%.
  • Inline electrical quick connect and E26 adapter (provided) provides mains connections
  • Consult instruction sheets and for more information
Retention
  • Torsion springs are pre-installed and adjust to fit 5" or 6" compatible housings
Gaskets
  • Closed cell gaskets achieve restrictive airflow requirements without additional caulking
Compliance
  • UL Certified
  • Wet and Damp location listed.
  • Airtight certified per ASTM-E283
  • Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
  • EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
  • Contains no mercury or lead and RoHS compliant
  • Photometric testing in accordance with IES LM-79-08
  • Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
  • Can be used for State of California Title 24 high efficacy luminaire compliance. Complies with Title 24 JA8-2016-E.
  • Can be used International Energy Conservation Coe (IECC) and Washington State Energy Code high efficiency luminaire compliance.
  • ENERGY STAR listed, reference database for current listings
Warranty
  • Five year limited warranty
