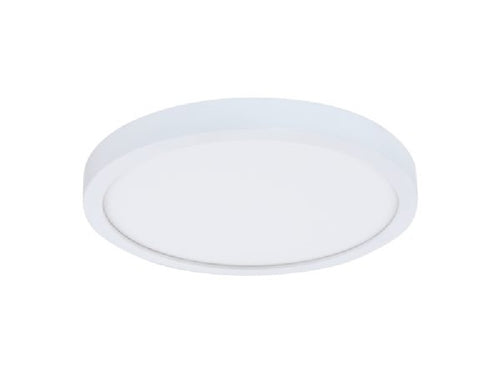

Halo Lighting SMD14R209SWHE 14" Round LED Surface Mount Downlight, 2000 Lumens, 90 CRI, 2700K-5000K, 120-277V White Finish
Halo Lighting SMD14R209SWHE 14" Round LED Surface Mount Downlight, 2000 Lumens, 90 CRI, 2700K-5000K, 120-277V White Finish
Regular price
Price:
$82.66
Regular price
Price:
Sale price
$82.66
Unit price
per
MODEL: Halo-SMD14R209SWHE
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
Housing
Housing
- Non-electrically conductive polycarbonate frame.
- High impact diffuse polystyrene lens provides shielding to the light guide with no pixilation
- Stamped aluminum housing provides thermal cooling achieving L70 at 50,000 hours in IC and non-IC applications
- Closed cell gasket achieves restrictive airflow and wet location requirements without additional caulking
- Precision acrylic light guide organizes source flux into wide distribution with 1.2 – 1.4 spacing criteria useful for general area illumination
- Mid power LED array provide a uniform source with high efficiency and long life.
- Available in 90 CRI minimum, R9 greater than 50 and color accuracy within 3 SDCM provide color accuracy and uniformity
- Integrated 120-277V 60Hz constant current driver provides noise free operation.
- SMD Universal Voltage (120-277V) configurations are recommended for use with compatible 0-10V DC low voltage dimmers only.
- Adjustable spider plate allows for quick installation into junction boxes.
- The SMD may be used in compatible electrical junction boxes in direct contact with insulation including spray foam insulation.
- Suitable for installation in many 3-1/2” and 4” square, octagon, and round electrical junction boxes.
- Note: SMD14 is only compatible with junction boxes that provide minimum depth of 2-1/8”.
- Installer must ensure compatibility of fit, wiring and proper mounting in the electrical junction box. This includes all applicable national and local electrical and building coded
- SMD skins are accessory rings in both round and square. These skins attach to the SMD for a permanent finish. Refer to the SMD accessories specification sheet for details.
- Matte White (Paintable)
- Satin Nickel
- Tuscan Bronze
- cULus Certified in US and Canada.
- Wet and Damp Location listed, airtight per ASTM-E283
- Suitable for use in closets, compliant with NFPA 70, NEC Section 410.16 (A)(3) and 410.16 (C)(5)
- EMI/RFI emissions per FCC 47CFR Part 15B
- Contains no mercury or lead and RoHS compliant.
- Photometric testing in accordance with IES LM-79-08
- Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11.
- Can be used for State of California Title 24 high efficacy luminaire compliance, reference the California Energy Commission Title 20 Appliance Efficiency Database for current listings.
- Can be used for International Energy Conservation Code (IECC) and high efficiency luminaire compliance
- ENERGY STAR listed, reference database for current listings
- Five-year limited warranty
