Halo Recessed ML4ALSFS1ERSL 4" Round Smooth LED Adjustable Downlight, Selectable 200/400/550 Lumens, 90 CRI, Selectable CCT 2700/3000/3500/4000/5000K, 5% Phase Cut LE/TE Dimming, 120V 60Hz, Silver
Halo Recessed ML4ALSFS1ERSL 4" Round Smooth LED Adjustable Downlight, Selectable 200/400/550 Lumens, 90 CRI, Selectable CCT 2700/3000/3500/4000/5000K, 5% Phase Cut LE/TE Dimming, 120V 60Hz, Silver
Regular price
Price:
$1,000.00
Regular price
Price:
Sale price
$1,000.00
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Construction
Construction
- Magnetic Polycarbonate trims for Adjustables
- Regressed painted smooth trims
- High impact lens provides airtite and wet location
Module
- The LED canless adjustable consists of a Chip on Board LED array, optical assembly, driver, and trim
- Achieves L70 at 50,000 hrs in IC (insulation contact) and non-IC applications
Selectable System
- Use the CCT select switch to choose between 2700K, 3000K, 3500K, 4000K, and 5000K CCT
- Use the Dim-to-Warm select switch option to choose between 3000K to 1800K or 2700K to 1800K, the light will have a warmer color temperature as the fixture dims
- Factory default is set to 3000K
- Use the 3-position Lumen Select switch to choose the brightness level (Low, Medium, High)
- Lumen Select factory default is to the highest lumen option
Optics
- Field installable TIR optics with a smooth beam, no media necessary
- Color and softening lenses are options for the 3" and 4" adjustable.
- Available in 25° spot, 40° flood, 55° wide flood optics
- Up to 1 optical media accessories can be used in the 3" and 4" adjustable while still maintaining maximum tilt angle
LED Array
- LED COB provides a uniform light source with high efficiency and no pixilation
- 90+ CRI minimum, R9 greater than 50
- Color accuracy is 3 SDCM at the end points and 4 in the middle providing color consistency and uniformity
- Color Temperature (CCT) is set to a factory default of 3000K
Junction Box
- Die formed metal driver/ junction box with captive hinged junction box cover
- Listed for (6) #12 AWG 90°C splice conductors, 2-in, 2-out plus (2) ground
- 3" and 4" fixtures - (4) ½" conduit pry-outs
- 2" fixtures – (3) ½" conduit pry-outs
- Accepts 14-2, 14-3, 12-2, 12-3 U.S. and 14-2, 14-3, 12-2 Canadian NM Cable
- (2) Slide-N-Side non-metallic (NM) wire traps accept
- Accepts 14-2, 14-3, 12-2, 12-3 U.S. and 14-2, 14-3, 12-2 Canadian NM Cable
- (3) 4-port push wire nuts with clear caps for quick and reliable mains voltage connections
Driver
- Available in 120V 60Hz or 120V-277 50/60Hz, constant current driver provides noise-free, high efficiency operation
- Dimmable: Continuous, flicker-free dimming from 100% to 5% with:
- Compatible leading or trailing edge (LE/TE) 120V phase cut dimmers; (See Dimming Guide for compatible dimmers.)
- Optional 0-10V 120V-277V dimmers; (See Dimming Guide for compatible dimmers)
- Tip: For optimal dimming performance, consider dimmers with low-end trim adjustment;
- Note that some dimmers require a neutral wire in the box.
- Wiring: Includes quick connect push connectors for mains power connections.
- Plenum rated inline electrical quick connect provides low voltage connection to fixture fitting, CMP/FT6 rated

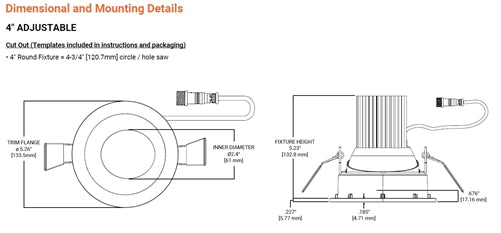

Installation
- Can be installed in 3/8" to 1-1/2" thick ceilings
- Round or Square ceiling cutout
- Heat treated springs hold fixture fitting securely in the ceiling eliminating light leaks
- Can be removed from below the ceiling for service or replacement
Mounting Frame
- Galvanized steel mounting frame with offset aperture and integral bar hanger receivers
- Locking screws provide positive horizontal locking
- 3/8" drywall collar included to improve hole locating and drywall cutting process
- Collar is notched at 90° intervals for laser centering
- GOT NAIL! Gen 3 bar hangers adjust from 8" to 24" wide
- Pass thru feature allows shortening without removal
- Captive nail penetrates standard and engineered lumber
- Mounting flange levels platform with ceiling
- Integral clip attaches directly to tee-bar.
Airtite
- The Adjustable meets Airtight ASTM-E283 requirements with included gasket and lens included in trim (default)
- Magnetic Round and Square polycarbonate trims are available in multiple colors
- Matte White
- Satin Nickel
- Matte Black
- Trim cut off to reduce glare
Compliance
- cULus certified for US and Canada
- Wet location listed with included lens
- Airtight per ASTM-E283
- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
- EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
- Contains no mercury or lead and RoHS compliant(1)
- Photometric testing in accordance with IES LM-79-08
- Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
- Can be used for State of California Title 24 high efficacy LED compliance under JA8(1), reference Modernized Appliance Efficiency Database System (MAEDBS) for 2022 JA8 High Efficacy Lighting
Warranty
- Five year limited warranty
