Home > Lithonia Lighting > Halo PR4FS12D010REM7 4" New Construction/ Remodel Housing Frame, Field Selectable 1000/1500/2000 lumens, 120-277V 1-100% Dimming, 7W Emergency Battery Pack

  • Halo PR4FS12D010REM7 4" New Construction/ Remodel Housing Frame, Field Selectable 1000/1500/2000 lumens, 120-277V 1-100% Dimming, 7W Emergency Battery Pack
1 1

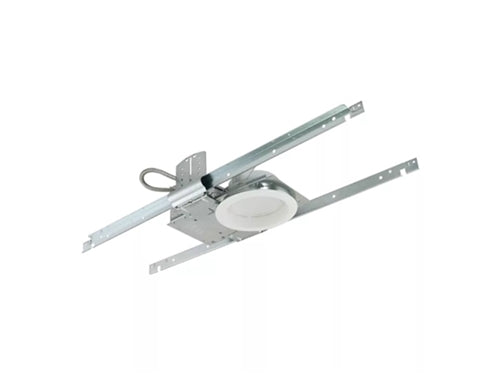

Halo PR4FS12D010REM7 4" New Construction/ Remodel Housing Frame, Field Selectable 1000/1500/2000 lumens, 120-277V 1-100% Dimming, 7W Emergency Battery Pack

Halo PR4FS12D010REM7 4" New Construction/ Remodel Housing Frame, Field Selectable 1000/1500/2000 lumens, 120-277V 1-100% Dimming, 7W Emergency Battery Pack

Price: $429.00
Price: $429.00

MODEL: Halo-PR4FS12D010REM7
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

PRODUCT FAMILY SPECIFICATIONS
Frame
  • Boat shaped galvanized steel plaster frame with adjustable plaster lip accommodates 1/2” to 1-1/2” thick ceilings
  • May be installed in new construction; or from below the ceiling in non-accessible ceilings and in remodeling
  • Provided with (2) remodel clips to secure the frame to the ceiling when using frame as a remodeler
Universal Mounting Bracket
  • Mounting bracket adjusts 2” vertically from above the ceiling or thru the aperture
  • Use with No Fuss bar hangers (included) or with 1/2” EMT (by others)
  • Removable for installation from below the ceiling when using frame as a remodeler
Mounting Bars
  • Captive preinstalled No Fuss mounting bars lock to tee grid with screwdriver or pliers
  • Centering mechanism allows for consistent positioning of fixtures
LED Module
  • Integrated self-flanged reflector with multiple finish options
  • Patented SeleCCTable color temperature technology and selectable lumen output for selection in the field
  • Integrated dip switches for color and lumen selection
  • Field Selectable CCT 3000K / 3500K / 4000K
  • Discrete (Fixed) CCT options in 2700K and 5000K
  • Low and high selectable lumen ranges:
  • Low Lumen: 1000lm / 1500lm / 2000lm (nominal)
  • High Lumen: 2000lm / 3000lm / 4000lm (nominal)
  • Discrete (fixed) lumen models in 1000lm, 1500lm, 3000lm (nominal); use to meet lighting power density codes
  • Available in 80 CRI or 90 CRI (nominal) with color accuracy within 3 SDCM
  • LED array uses a plurality of mid-power surface mount LEDs delivering high flux and excellent efficiency.
  • Passive cooling achieves L70 at 50,000 hours
  • Integral connector for quick link to the housing flex
Driver
  • Field replaceable constant current driver provides low noise operation
  • UNV 120-277VAC 50/60Hz input standard
  • Continuous 1% - 100% dimming with 0-10V analog controls
  • Optional low voltage DC driver for use with DLVP distributed low voltage power system (see DLVP Design Guide / Brochure)
Emergency Option
  • Available with 7 or 14 watt emergency battery pack with remote test switch / charge indicator light
  • Provides 90 minutes of standby lighting meeting most life safety codes for egress
  • Available Self-Test (self-diagnostic), with remote charge indicator and test switch
  • Quick Spec emergency ordering option for quickturn projects
Connected Lighting System
Two WaveLinx connected solutions to choose from. Refer to WaveLinx system specifications and application guides for details.
WaveLinx PRO Tilemount Sensor Kit
WaveLinx PRO WTA tilemount sensor kit offers daylight dimming, PIR motion sensing, scene and zone configuration, automatic commissioning; and optional RLTS - Real Time Location Services available.

WaveLinx PRO Wireless Node
WaveLinx PRO WPN wireless node provides luminaire-level control with scene and zone configuration without an integrated sensor; Connects wirelessly with daylight dimming sensor and PIR motion sensor if desired. Use with 0-10V driver only.
  • Note: Not compatible with 347V or Chicago plenum.
  • Note: Only available with fixed lumen housings, and not available with field selectable lumen housings.
WaveLinx LITE Tilemount Sensor Kit
WaveLinx LITE WTK tilemount sensor kit offers daylight dimming and PIR motion sensing, scene and grouping configuration.

WaveLinx LITE Wireless Node
WaveLinx LITE WLN wireless node provides luminaire level control with scene and zone configuration without an integrated sensor; Connects wirelessly with daylight dimming sensor and PIR motion sensor if desired. Use with 0-10V driver only.
  • Note: Not compatible with 347V or Chicago plenum.
  • Note: Only available with fixed lumen housings, and not available with field selectable lumen housings.
WaveLinx Tilemount Sensor Kits Application
  • The WTA and WTK tilemount sensor kits include a control module mounted on the luminaire junction box via 1/2” knock-out, and a tilemount sensor on 54-inch whip; for ceiling installation by direct-mount spring clips or via mounting bracket in octagon ceiling boxes.
  • The WTA and WTK tilemount sensor kits may be ordered as factory installed on the luminaire, or ordered separately as a field installed accessory kit.
  • Note: WaveLinx PRO devices are only compatible with the WaveLinx PRO system.
  • Note: WaveLinx LITE devices are only compatible with the WaveLinx LITE system.
Junction Box
  • Galvanized steel junction box
  • 20 in3 internal volume excluding voltage barrier
  • 25 in3 internal total volume
  • Voltage divider for 0-10V dimming wires [occupies (1) 1/2” pry-out space]
  • Listed for (8) #12 AWG (four in, four out) 90 degrees C conductors and feed-thru branch wiring
  • (3) 1/2” and (2) 3/4” trade size pry-outs available
  • (3) 4-port push wire nuts for mains voltage, with 1-port used for fixture wiring
Compliance
  • cULus Certified to UL 1598 / C22.2 No. 250.0, suitable for damp locations and wet locations in covered ceilings only
  • IP20 - Above finished ceiling; IP65 - Below finished ceiling
  • Field selectable 1000/1500/2000lm, 2000/3000/4000lm models, and fixed output 3000lm models are Non-IC rated, insulation must be kept 3” from top and sides
  • Fixed output 1000lm and 1500lm models are Type IC thermally protected and suitable for direct contact to air permeable insulation (also suitable for Non-IC)
  • Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013
  • Airtight per ASTM-E283-04
  • Suitable for use in clothes closets when installed in accordance of the NEC 410.16 spacing requirements
  • EMI/RFI emissions FCC CFR Title 47 Part 15 Class A at 120/277V
  • Contains no mercury or lead and RoHS compliant
  • Photometric testing in accordance of IES LM-79-08
  • Lumen maintenance projections in accordance of IES LM-80-08 and TM-21-11
  • May be used to comply with State of California Title 24 non-residential code, as a dimmable LED luminaire*
  • ENERGY STAR certified, see Certified Light Fixtures database
Warranty
  • Five year limited warranty
