Halo Recessed RA56LS9FSD2W1EWH 5/6" Baffle Adjustable Recessed LED Trim, 600/900 Selectable Lumens, 90 CRI, SeleCCTable 2700K, 3000K, 3500K, 4000K, 5000K, Dim-to-Warm, 5% Phase Cut LE/TE Dimming, 120V 60Hz, Matte White

Halo Recessed RA56LS9FSD2W1EWH 5/6" Baffle Adjustable Recessed LED Trim, 600/900 Selectable Lumens, 90 CRI, SeleCCTable 2700K, 3000K, 3500K, 4000K, 5000K, Dim-to-Warm, 5% Phase Cut LE/TE Dimming, 120V 60Hz, Matte White

Price: $32.53
Price: $32.53

MODEL: Halo-RA56LS9FSD2W1EWH
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

PRODUCT FAMILY SPECIFICATIONS
Selectable System
  • Use the 6-position color selector switch to choose between: Dim-to-Warm (3000K dims to 1800K), 2700K, 3000K, 3500K, 4000K, and 5000K
  • Use the lumen select switch to choose the preferred brightness level
Module -- Trim

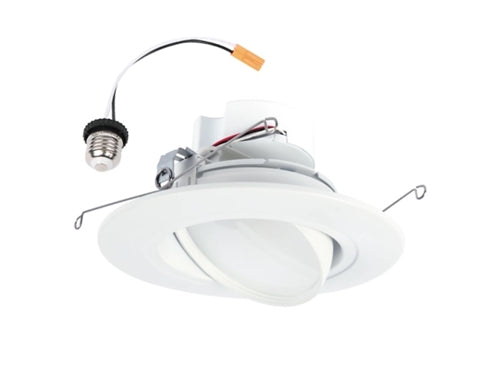

  • Module construction includes LED array, heat sink, reflector, lens, baffle and trim ring
  • Regressed baffle
  • Heat sink designed to conduct heat away from the LED array, keeping the junction temperatures below specified maximums, even when installed in insulated ceiling environments

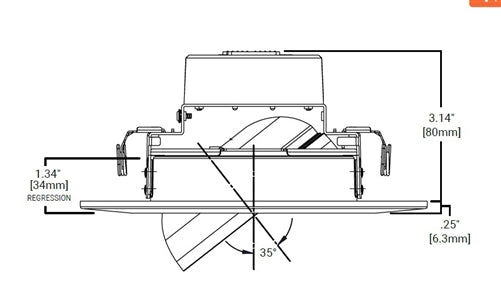

  • Adjustable gimbal tilts up to 35° and rotates up to 360°
LED Array
  • Mid power LED array provides a uniform source with high efficiency and no pixilation
  • 90 CRI minimum, R9 greater than 50
  • Color accuracy at 4 SDCM in between endpoints, providing color accuracy and uniformity.
  • Factory default color temperature (CCT) is set to soft white (3000K)
Optical Assembly
  • Regressed lens
  • Impact-resistant polycarbonate
  • Convex form and lamp-like appearance
Driver
  • Integral 120V 60 Hz constant current driver provides noise free operation
  • Inline electrical quick connect and E26 adapter (provided) provides mains connections
  • Continuous, flicker-free phase cut (leadingedge/ trailing-edge - LE/TE) dimming from 100% to 5% output with compatible dimmers
  • *See the RA Dimming Guide for compatible dimmers
Retention
  • 5/6" - Factory-installed torsion springs adjust to fit compatible 5" or 6" recessed housings
  • 5/6" Alternate Mounting - Push-N-Twist clips offer alternate mounting where torsion springs are not present in 5" or 6" recessed housings
Gasket
  • Closed cell gaskets achieve restrictive airflow requirements without additional caulking
Compliance
  • UL Certified for US and Canada for use with Halo housings, classified for use with other’s housings, see instruction sheet for conditions of acceptability
  • Damp location listed
  • EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
  • Contains no mercury or lead and RoHS compliant
  • Photometric testing in accordance with IES LM-79-08
  • Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
  • Can be used for State of California Title 24 high efficacy luminaire compliance. Complies with Title 24 JA8-2022-E.
  • Can be used International Energy Conservation Code (IECC) high efficiency luminaire compliance.
  • ENERGY STAR® listed, reference database for current listings
  • IP44 Ingress Protection rated
Warranty
  • Five year limited warranty
