Halo Recessed Commercial HC6R40D010 6" Retrofit Kit for 6-5/8" to 7" Ceiling Cutout, 4000 Lumens, 120-277V, 0-10V, 1%-100% Dimming

Halo Recessed Commercial HC6R40D010 6" Retrofit Kit for 6-5/8" to 7" Ceiling Cutout, 4000 Lumens, 120-277V, 0-10V, 1%-100% Dimming

Price: $99.41
Price: $99.41

MODEL: Halo-HC6R40D010

Usually Ships in 4-6 business days. Urgent Project? Contact Us
Add To Wishlist
Request a Quote
Ordering a large quantity?Request a quote
View full details

description

PRODUCT DESCRIPTION

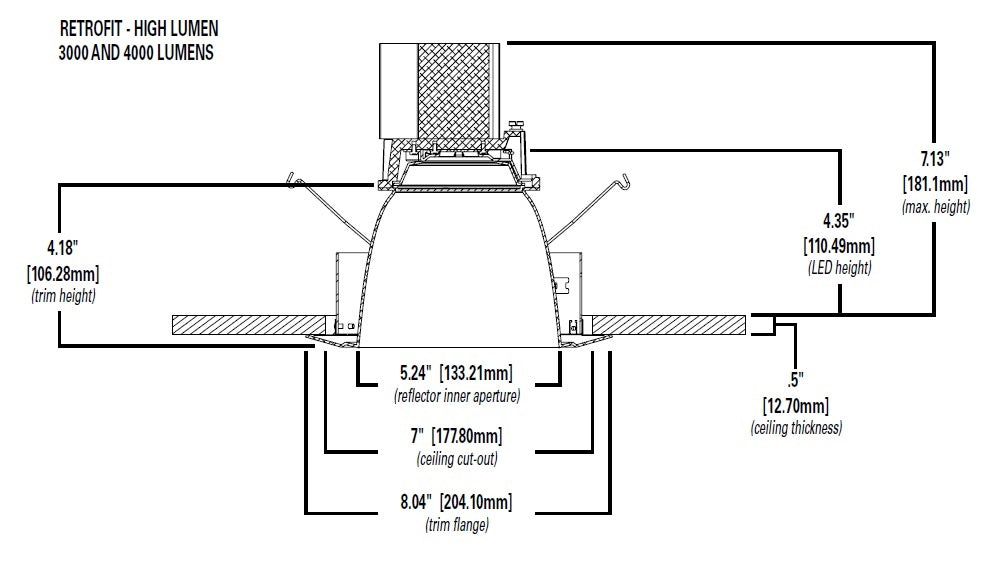

The HC6R LED retrofit downlight kit is designed to be installed into 6.625" (6-5/8") to 7.0" (7-0") nominal ceiling cutout aperture commercial
housings (Non - Halo Commercial). The HC6R reflector offers a medium distribution ideal for general area lighting. Lumen options range from 1000 to 4000 lumens in color temperatures of 2700K, 3000K, 3500K, and 4000K; in 80 or 90CRI. Installs from below the ceiling into existing open frame recessed commercial housings. Intended for office spaces, healthcare, hospitality, and institutional applications.

PRODUCT SPECIFICATIONS

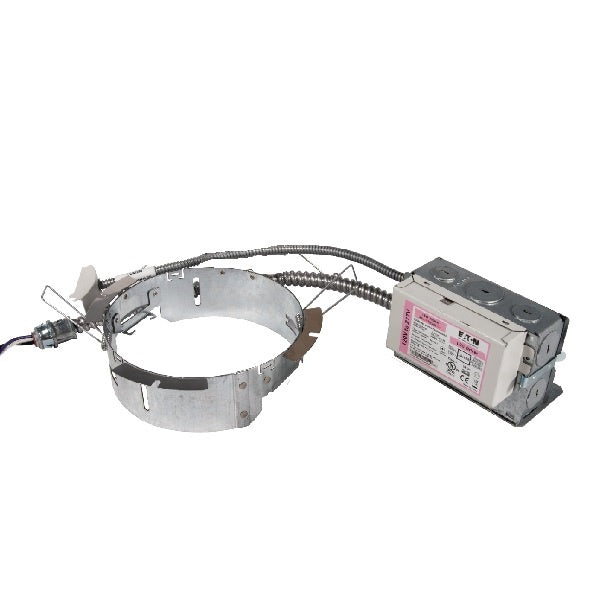

Retrofit Frame / Collar
  • Galvanized steel collar accommodates open frame housing openings from 6.625 (6-5/8") to 7.0" (7-0") nominal ceiling cutout aperture, 2" thick and installs with (2) remodel spring clips installed from below the ceiling.
Junction Box
  • Provided with armored cables providing flexible connections to the LED module and existing junction box for mains voltage connections.
  • Galvanized steel junction bo
  • 20in3 internal volume excluding voltage barrier
  • 25 in3 internal total volume
  • Voltage divider for 0-10V dimming wires [occupies (1) 1/2" pry-out space]
  • Listed for (8) #12 AWG (four in, four out) 90 degree C conductors and feed-thru branch wiring
  • (3) 1/2" and (2) 3/4" trade size pryouts availabl
  • (3) 4-port push wire nuts for mains voltage, with 1-port for fixture connection
Driver
  • Field replaceable constant current driver provides low noise operation
  • UNV 120-277VAC 50/60Hz input standard
  • 347VAC 50/60Hz input option (Canada only)
  • Continuous, 1%-100% dimming with 0 -10V analog control
Emergency Option
  • Provides 90 minutes of standby lighting meeting most life safety codes for egress lighting
  • Available with remote charge indicator and test switch
  • Available Self-Test (self-diagnostic), with remote charge indicator and test switch
Connected Lighting Options
  • WaveLinx - two options
    • Factory installed WaveLinx tile mount sensor kit
    • Field installed WaveLinx accessory tile mount sensor kit
  • The WTA WaveLinx tile mount sensor kit offers daylight dimming, PIR motion sensing control, and optional RLTS - Real Time Location Services. (Refer to WaveLinx system specifications.) The WTA WaveLinx kit includes control module that mounts on the luminaire electrical junction box via 1/2" knock-out, and tilemount sensor with direct-mount spring clips or for octagon ceiling box with included mounting bracket. (Field mount kit ordered and installed separately)
  • Enlighted wireless tile mount sensor and control kit
Compliance
  • cULus Listed/Classified, wet location labeled for covered ceiling
  • IP20 - Above finished ceiling; IP65 - Below finished ceiling
  • Non-IC rated 2000, 3000, 4000 lumen models. Insulation must be kept 3" from top and sides
  • IC rated 1000, 1500, lumen models are suitable for direct contact with air permeable insulation (also suitable for Non-IC)
  • Not for use in direct contact with spray foam insulation, consult NEMA LSD57-201
  • Airtight per ASTM-E283-0
  • Suitable for use in clothes closets when installed in accordance with NEC 410.16 spacing requirement
  • EMI/RFI emissions FCC CFR Title 47 Part 15 Class A at 120/27
  • Contains no mercury or lead and RoHS compliance
  • Photometric testing in accordance to IES LM-79-0
  • Lumen maintenance projections in accordance to IES LM-80-08 and TM-21-1
  • 1000 and 1500 lumen 90CRI ICAT models may be used to comply with State of California Title 24 residential code, per JA8 certification standard
  • May be used to comply with State of California Title 24 non-residential code, as a dimmable LED luminaire
  • ENERGY STAR certified, reference certified light fixtures database
