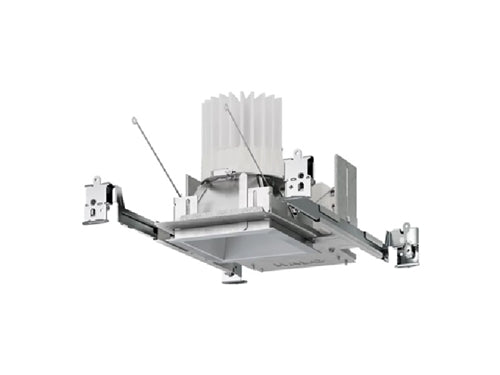

Halo Recessed Commercial HCSQ410D010 4" New Construction Square LED Housing, 1000 Lumens, 120-277V, 0-10V 1%-100% Dimming
Halo Recessed Commercial HCSQ410D010 4" New Construction Square LED Housing, 1000 Lumens, 120-277V, 0-10V 1%-100% Dimming
Regular price
Price:
$108.62
Regular price
Price:
Sale price
$108.62
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Housing Frame
Housing Frame
- Boat shaped galvanized steel plaster frame with square adjustable plaster li
- Accommodates 1/2" to 1-1/2" thick ceilings
- Installs in new construction or from below the finished ceiling (non-accessible) for remodeling
- Provided with two remodel clips to secure the frame to the ceiling
- Provides 2” vertical adjustment of mounting bars
- Accessible from above and below the ceiling
- Removable to facilitate remodeling installation from below the finished ceiling
- Adjustable pre-installed Gen 3 bar hangers adjust from 10-1/2” to 24” wide
- Integral grid clip attaches directly to T-grid
- Captive nail for framing construction
- Mounting flange levels with ceiling in framing construction
Driver
- Field-replaceable constant current driver
- Universal 120-277VAC 50/60Hz input standard
- Continuous, 1% to 100% dimming with 0-10V analog control
- Optional low-voltage DC driver for use with Distributed Low Voltage Power (DLVP) system (refer to DLVP Design Guide at www.cooperlighting.com for details)
Canada Options
Emergency Options- 347VAC 50/60Hz
- Continuous 1% to 100% dimming on 0 -10V analog controls
- For 500, 750, 1000, 1500, 2000, 2500, 3000, 3500, 4000 lumen models only
- 347V step down transformer factory installed with the standard “D010" 120V-277V, LED driver on 4500, 5000, 5500, 6000 lumen models only
- 6W and 14W emergency battery options provide 90 minutes of standby lighting; consult local and national life safety codes for egress lighting.
- Emergency test switch may be installed with included remote switchplate or integral in reflector
- ordered separately. (Remote switch box, if required, is by others, consult local and national code.)
- Self-test (self-diagnostic) standard. Junction Box Galvanized steel junction box
- 20 in3 internal volume excluding voltage barrier
- 25 in3 internal total volume
- Voltage barrier for 0-10V dimming wires (occupies one 1/2" pry-out space)
- Listed for eight #12 AWG (four in, four out) 90 degrees C conductors and feed-thru branch wiring
- Three 1/2" and two 3/4" trade size pry-outs available
- Three 4-port push wire nuts for mains voltage with 1-port for fixture connection
- cULus Certified to UL 1598 / C22.2 No. 250.0, suitable for damp locations and wet locations in covered ceilings only
- Emergency options provided with UL Listed emergency drivers to UL 924 / C22.2 No. 141, suitable for indoor/damp locations
- IP20 - Above finished ceiling; IP64 - Below finished ceiling
- Non-Insulated ceiling (Non-IC) rated for 2000, 2500, 3000, 3500, 4000, 4500, 5000, 5500, 6000 lumen models (insulation must be kept 3" from top and sides)
- Insulated ceiling (IC) rated for 500, 750, 1000, 1500 lumen models and suitable for direct contact with air permeable insulation** (IC models are also suitable for Non-IC installations)
- Non-IC marked spacing required for 4500, 5000, 5500, 6000 lumen models
- Marked Spacing Center to Center of Adjacent Luminaires = 36”
- Center of Luminaire to Building Member = 18”
- Minimum overhead = 0.5”
- Airtight per ASTM-E283-04
- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
- EMI/RFI emissions FCC CFR Title 47 Part 15 Class A at 120/277V
- Contains no mercury or lead and RoHS compliant
- Photometric testing completed in accordance of IES LM-79-08
- Lumen maintenance projection in accordance of IES LM-80-08 and TM-21-11
- 500, 750, 1000 and 1500 lumen, 90 CRI, ICAT models may be used to comply with State of California Title 24 residential code, per JA8 certification standards
- May be used to comply with State of California Title 24 non-residential code as a dimmable LED luminaire*
- ENERGY STAR® certified models available, reference certified light fixtures database for listed models
** Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013
Warranty- Five year limited warranty
