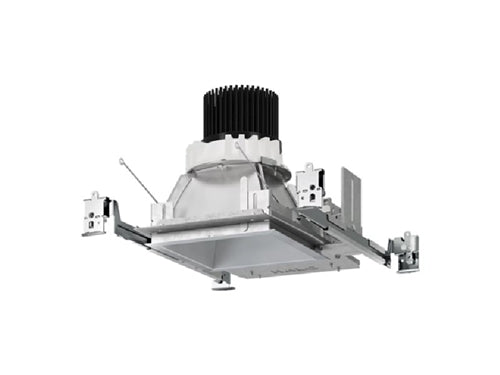

Halo Recessed Commercial HCSQ607D010 6" New Construction Square LED Housing, 700 Lumens, 120-277V, 0-10V 1%-100% Dimming
Halo Recessed Commercial HCSQ607D010 6" New Construction Square LED Housing, 700 Lumens, 120-277V, 0-10V 1%-100% Dimming
Regular price
Price:
$118.22
Regular price
Price:
Sale price
$118.22
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS

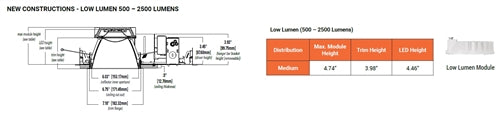

Housing Frame
Housing Frame
- Boat shaped galvanized steel plaster frame with square adjustable plaster lip
- Accommodates 1/2" to 1-1/2" thick ceilings
- Installs in new construction or from below the finished ceiling (non-accessible) for remodeling (with mounting bars removed)
- Provided with two remodel clips to secure the frame to the ceiling
Vertical Mounting Bracket
- Provides 2" vertical adjustment of mounting bars
- Accessible from above and below the ceiling
- Removable to facilitate remodeling installation from below the finished ceiling
Mounting Bars
- Adjustable pre-installed Gen 3 bar hangers adjust from 10-1/2” to 24” wide
- Integral grid clip attaches directly to T-grid
- Captive nail for framing construction
- Mounting flange levels with ceiling in framing construction
Driver
- Field-replaceable constant current driver
- Universal 120-277VAC 50/60Hz input standard
- Continuous, 1% to 100% dimming with 0-10V analog control
- Optional low-voltage DC driver for use with Distributed Low Voltage Power (DLVP) system (refer to DLVP Design Guide at www.cooperlighting. com for details)
Canada Options
- 347VAC 50/60Hz
- Continuous 1% to 100% dimming on 0 -10V analog controls
- For 500, 750, 1000, 1500, 2000, 2500, 3000, 3500, 4000 lumen models only
- 347V step down transformer factory installed with the standard "D010" 120V-277V, LED driver on 4500, 5000, 5500, 6000 lumen models only
Emergency Options
- 6W and 14W emergency battery options provide 90 minutes of standby lighting; consult local and national life safety codes for egress lighting.
- Emergency test switch may be installed with included remote switchplate or integral in reflector
- ordered separately. (Remote switch box, if required, is by others, consult local and national code.)
- • Self-test (self-diagnostic) standard.
Connected Lighting System
Two WaveLinx connected solutions. Refer to WaveLinx website for details www.cooperlighting.com
WaveLinx PRO Tilemount Sensor Kit
Two WaveLinx connected solutions. Refer to WaveLinx website for details www.cooperlighting.com
WaveLinx PRO Tilemount Sensor Kit
- WaveLinx PRO WTA tilemount sensor kit offers daylight dimming, PIR motion sensing, scene and zone configuration, automatic commissioning; and optional RLTS - Real Time Location Services available.
WaveLinx PRO Wireless Node
- WaveLinx PRO WPN wireless node provides luminaire-level control with scene and zone configuration without an integrated sensor; Connects wirelessly with daylight dimming sensor and PIR motion sensor if desired. Use with D010 UNV 0-10V dimming driver (available in 347V, maximum 4000 lumens).
WaveLinx LITE Tilemount Sensor Kit
- WaveLinx LITE WTK tilemount sensor kit offers daylight dimming and PIR motion sensing, scene and grouping configuration.
WaveLinx LITE Wireless Node
- WaveLinx LITE WLN wireless node provides luminaire level control with scene and zone configuration without an integrated sensor; Connects wirelessly with daylight dimming sensor and PIR motion sensor if desired. Use with D010 UNV 0-10V dimming driver (available in 347V, maximum 4000 lumens).
WaveLinx Tilemount Kits Application
- The WTA and WTK tilemount kits include a control module mounted on the luminaire junction box via 1/2” knock-out, and a tilemount sensor on 54-inch whip; for ceiling installation by direct-mount spring clips or via mounting bracket in octagon ceiling boxes.
- The WTA and WTK tilemount kits may be ordered as factory installed on the luminaire, or ordered separately as a field installed accessory kit.
- Note: WaveLinx PRO devices are only compatible
- with the WaveLinx PRO system.
- Note: WaveLinx LITE devices are only compatible with the WaveLinx LITE system.
Junction Box
- Galvanized steel junction box
- 20 in3 internal volume excluding voltage barrier
- 25 in3 internal total volume
- Voltage barrier for 0-10V dimming wires (occupies one 1/2" pry-out space)
- Listed for eight #12 AWG (four in, four out) 90˚C conductors and feed-thru branch wiring
- Three 1/2" and two 3/4" trade size pry-outs available
- Three 4-port push wire nuts for mains voltage with 1-port for fixture connection
Compliance
- cULus Certified to UL 1598 / C22.2 No. 250.0, suitable for damp locations and wet locations in covered ceilings only
- Emergency options provided with UL Listed emergency drivers to UL 924 / C22.2 No. 141, suitable for indoor/damp locations
- IP20 - Above finished ceiling; IP65 - Below finished ceiling
- Non-Insulated ceiling (Non-IC) rated for 2500, 3000, 3500, 4000, 4500, 5000, 5500, 6000 lumen models (insulation must be kept 3" from top and sides)
- Insulated ceiling (IC) rated for 500, 750, 1000, 1500, 2000 lumen models and suitable for direct contact with air permeable insulation* (IC models are also suitable for Non-IC installations)
- Non-IC marked spacing required for 4500, 5000, 5500, 6000 lumen models
- Marked Spacing Center to Center of Adjacent Luminaires = 36”
- Center of Luminaire to Building Member = 18”
- Minimum overhead = 0.5”
- Airtight per ASTM-E283-04
- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
- EMI/RFI emissions FCC CFR Title 47 Part 15 Class A at 120/277V
- Contains no mercury or lead and RoHS compliant
- Photometric testing completed in accordance of IES LM-79-08
- Lumen maintenance projection in accordance of IES LM-80-08 and TM-21-11
- 500, 750, 1000 and 1500 lumen, 90 CRI, ICAT models may be used to comply with State of California Title 24 residential code, per JA8 certification standards
- May be used to comply with State of California Title 24 non-residential code as a dimmable LED luminaire
- ENERGY STAR certified models available, reference certified light fixtures database for listed models
- *Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013
Warranty
- Five year limited warranty
