Home > Halo Lighting > Halo Recessed Commercial HCSQ620D010 6" New Construction Square LED Housing, 2000 Lumens, 120-277V, 0-10V 1%-100% Dimming

  • Halo Recessed Commercial HCSQ620D010 6" New Construction Square LED Housing, 2000 Lumens, 120-277V, 0-10V 1%-100% Dimming
1 1

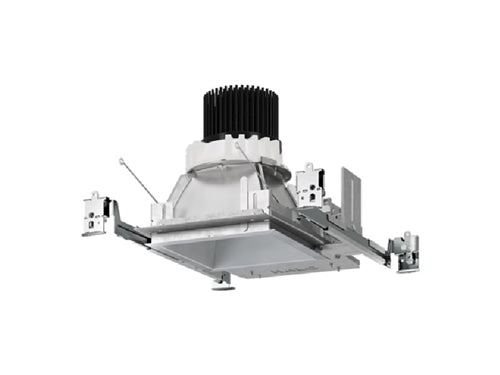

Halo Recessed Commercial HCSQ620D010 6" New Construction Square LED Housing, 2000 Lumens, 120-277V, 0-10V 1%-100% Dimming

Halo Recessed Commercial HCSQ620D010 6" New Construction Square LED Housing, 2000 Lumens, 120-277V, 0-10V 1%-100% Dimming

Price: $108.62
Price: $108.62

MODEL: Halo-HCSQ620D010
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

PRODUCT FAMILY SPECIFICATIONS
Housing Frame
  • Boat shaped galvanized steel plaster frame with square adjustable plaster lip
  • Accommodates 1/2" to 1-1/2" thick ceilings
  • Installs in new construction or from below the finished ceiling (non-accessible) for remodeling (with mounting bars removed)
  • Provided with two remodel clips to secure the frame to the ceiling
Vertical Mounting Bracket
  • Provides 2" vertical adjustment of mounting bars
  • Accessible from above and below the ceiling
  • Removable to facilitate remodeling installation from below the finished ceiling
Mounting Bars
  • Adjustable pre-installed Gen 3 bar hangers adjust from 10-1/2” to 24” wide
  • Integral grid clip attaches directly to T-grid
  • Captive nail for framing construction
  • Mounting flange levels with ceiling in framing construction
Driver
  • Field-replaceable constant current driver
  • Universal 120-277VAC 50/60Hz input standard
  • Continuous, 1% to 100% dimming with 0-10V analog control
  • Optional low-voltage DC driver for use with Distributed Low Voltage Power (DLVP) system (refer to DLVP Design Guide at www.cooperlighting. com for details)
Canada Options
  • 347VAC 50/60Hz
  • Continuous 1% to 100% dimming on 0 -10V analog controls
  • For 500, 750, 1000, 1500, 2000, 2500, 3000, 3500, 4000 lumen models only
  • 347V step down transformer factory installed with the standard "D010" 120V-277V, LED driver on 4500, 5000, 5500, 6000 lumen models only
Emergency Options
  • 6W and 14W emergency battery options provide 90 minutes of standby lighting; consult local and national life safety codes for egress lighting.
  • Emergency test switch may be installed with included remote switchplate or integral in reflector
    • ordered separately. (Remote switch box, if required, is by others, consult local and national code.)
  • • Self-test (self-diagnostic) standard.
Connected Lighting System
Two WaveLinx connected solutions. Refer to WaveLinx website for details www.cooperlighting.com
WaveLinx PRO Tilemount Sensor Kit
  • WaveLinx PRO WTA tilemount sensor kit offers daylight dimming, PIR motion sensing, scene and zone configuration, automatic commissioning; and optional RLTS - Real Time Location Services available.
WaveLinx PRO Wireless Node
  • WaveLinx PRO WPN wireless node provides luminaire-level control with scene and zone configuration without an integrated sensor; Connects wirelessly with daylight dimming sensor and PIR motion sensor if desired. Use with D010 UNV 0-10V dimming driver (available in 347V, maximum 4000 lumens).
WaveLinx LITE Tilemount Sensor Kit
  • WaveLinx LITE WTK tilemount sensor kit offers daylight dimming and PIR motion sensing, scene and grouping configuration.
WaveLinx LITE Wireless Node
  • WaveLinx LITE WLN wireless node provides luminaire level control with scene and zone configuration without an integrated sensor; Connects wirelessly with daylight dimming sensor and PIR motion sensor if desired. Use with D010 UNV 0-10V dimming driver (available in 347V, maximum 4000 lumens).
WaveLinx Tilemount Kits Application
  • The WTA and WTK tilemount kits include a control module mounted on the luminaire junction box via 1/2” knock-out, and a tilemount sensor on 54-inch whip; for ceiling installation by direct-mount spring clips or via mounting bracket in octagon ceiling boxes.
  • The WTA and WTK tilemount kits may be ordered as factory installed on the luminaire, or ordered separately as a field installed accessory kit.
  • Note: WaveLinx PRO devices are only compatible
  • with the WaveLinx PRO system.
  • Note: WaveLinx LITE devices are only compatible with the WaveLinx LITE system.
Junction Box
  • Galvanized steel junction box
  • 20 in3 internal volume excluding voltage barrier
  • 25 in3 internal total volume
  • Voltage barrier for 0-10V dimming wires (occupies one 1/2" pry-out space)
  • Listed for eight #12 AWG (four in, four out) 90˚C conductors and feed-thru branch wiring
  • Three 1/2" and two 3/4" trade size pry-outs available
  • Three 4-port push wire nuts for mains voltage with 1-port for fixture connection
Compliance
  • cULus Certified to UL 1598 / C22.2 No. 250.0, suitable for damp locations and wet locations in covered ceilings only
  • Emergency options provided with UL Listed emergency drivers to UL 924 / C22.2 No. 141, suitable for indoor/damp locations
  • IP20 - Above finished ceiling; IP65 - Below finished ceiling
  • Non-Insulated ceiling (Non-IC) rated for 2500, 3000, 3500, 4000, 4500, 5000, 5500, 6000 lumen models (insulation must be kept 3" from top and sides)
  • Insulated ceiling (IC) rated for 500, 750, 1000, 1500, 2000 lumen models and suitable for direct contact with air permeable insulation* (IC models are also suitable for Non-IC installations)
  • Non-IC marked spacing required for 4500, 5000, 5500, 6000 lumen models
    • Marked Spacing Center to Center of Adjacent Luminaires = 36”
    • Center of Luminaire to Building Member = 18”
    • Minimum overhead = 0.5”
    • Airtight per ASTM-E283-04
    • Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
  • EMI/RFI emissions FCC CFR Title 47 Part 15 Class A at 120/277V
  • Contains no mercury or lead and RoHS compliant
  • Photometric testing completed in accordance of IES LM-79-08
  • Lumen maintenance projection in accordance of IES LM-80-08 and TM-21-11
  • 500, 750, 1000 and 1500 lumen, 90 CRI, ICAT models may be used to comply with State of California Title 24 residential code, per JA8 certification standards
  • May be used to comply with State of California Title 24 non-residential code as a dimmable LED luminaire
  • ENERGY STAR certified models available, reference certified light fixtures database for listed models
  • *Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013
Warranty
  • Five year limited warranty
