• Halo Recessed Commercial HM6R12930 6" Retrofit Module, 1000 - 2000 Lumens, 90 CRI, 3000K Color Temperature
1 1

Halo Recessed Commercial HM6R12930 6" Retrofit Module, 1000 - 2000 Lumens, 90 CRI, 3000K Color Temperature

Halo Recessed Commercial HM6R12930 6" Retrofit Module, 1000 - 2000 Lumens, 90 CRI, 3000K Color Temperature

Price: $92.31
Price: $92.31

MODEL: Halo-HM6R12930

Usually Ships in 4-6 business days. Urgent Project? Contact Us
Add To Wishlist
Request a Quote
Ordering a large quantity?Request a quote
View full details

description

PRODUCT SPECIFICATIONS

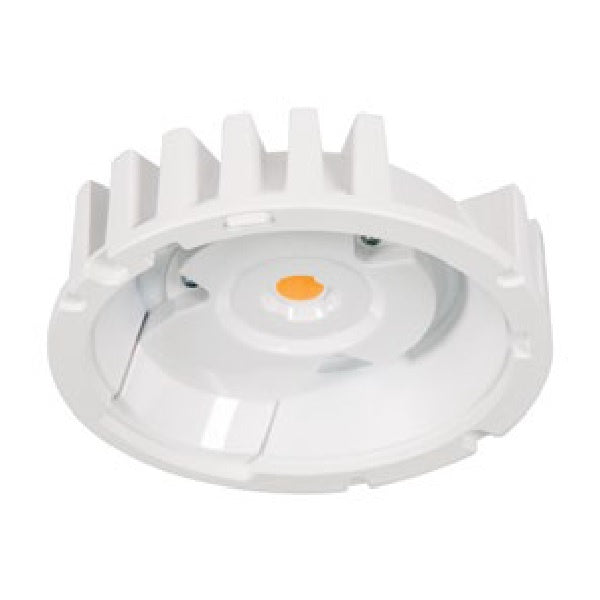

LED Module
  • Proximity phosphors over chip on board LEDs provide a uniform source with high efficiency and no pixilation
  • Available in 80 or 90 CRI minimum, accuracy within 3 SDCM provides color uniformity
  • 90 CRI option: R9>50 (refer to photometry section)
  • Correlated color temperature options: 2700K, 3000K, 3500K, 4000K
  • Passive thermal management achieves L70 at 60,000 hours in IC and non IC applications
  • Integral diffuse lens provides visual shielding
  • Integral connector allows quick connection to housing flex
Lumen Options
  • Nominal lumen values: 1000 lm, 1500 lm, 2000 lm, 3000 lm, 4000 lm
Compliance
  • cULus Listed/Classified, wet location labeled for covered ceiling
  • IP20 - Above finished ceiling; IP65 - Below finished ceiling
  • Non-IC rated 2000, 3000, 4000 lumen models. Insulation must be kept 3" from top and sides
  • IC rated 1000, 1500, lumen models are suitable for direct contact with air permeable insulation (also suitable for Non-IC)
  • Not for use in direct contact with spray foam insulation, consult NEMA LSD57-201
  • Airtight per ASTM-E283-0
  • Suitable for use in clothes closets when installed in accordance with NEC 410.16 spacing requirement
  • EMI/RFI emissions FCC CFR Title 47 Part 15 Class A at 120/27
  • Contains no mercury or lead and RoHS compliance
  • Photometric testing in accordance to IES LM-79-0
  • Lumen maintenance projections in accordance to IES LM-80-08 and TM-21-1
  • 1000 and 1500 lumen 90CRI ICAT models may be used to comply with State of California Title 24 residential code, per JA8 certification standard
  • May be used to comply with State of California Title 24 non-residential code, as a dimmable LED luminaire
  • ENERGY STAR certified, reference certified light fixtures database
