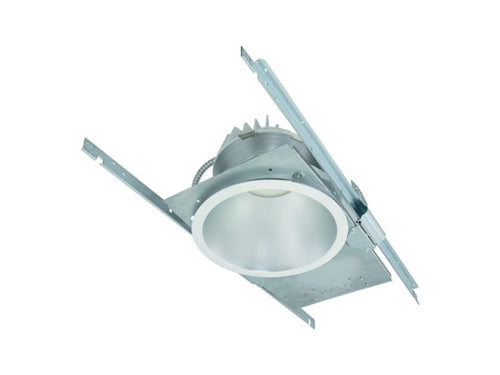

Halo Recessed Commercial HM80520835 8" Module, 500-2000 Lumens, 80 CRI, 3500K Color Temperature
Halo Recessed Commercial HM80520835 8" Module, 500-2000 Lumens, 80 CRI, 3500K Color Temperature
Regular price
Price:
$81.40
Regular price
Price:
Sale price
$81.40
Unit price
per
MODEL: Halo-HM80520835
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
LED Module
LED Module
- Proximity phosphors over chip on board LEDs provide a uniform source with high efficiency and no pixilation
- Available in 80 or 90 CRI minimum, provides accuracy within 3 SDCM color uniformity
- 90 CRI, R9>50 (refer to photometry section for colorimetric data)
- Available in 2700K, 3000K, 3500K, 4000K and 5000K correlated color temperature (CCT)
- Lumen options include 500, 750, 1000, 1500, 2000, 2500, 3000, 3500, 4000, 4500, 5000, 5500, 6000, 8000 lumens (nominal)
- Passive thermal management achieves L70 at 60,000 hours in IC and non IC applications (refer to compliance listings)
- Integral diffuse lens provides visual shielding
- Integral connector allows quick connection to housing flex
- cULus Certified to UL 1598 / C22.2 No. 250.0, suitable for damp locations and wet locations in covered ceilings only
- Emergency options provided with UL Listed emergency drivers to UL 924 / C22.2 No. 141, suitable for indoor/damp locations.
- IP20 - Above finished ceiling; IP65 - Below finished ceiling
- Non-IC rated 3500, 4000, 4500, 5000, 5500, 6000, 8000 lumen models. Insulation must be kept 3” from top and sides.
- IC rated 500, 750, 1000, 1500, 2000, 2500, 3000 lumen models are suitable for direct contact with air permeable insulation (IC models are also suitable for Non-IC)
- Non-IC marked spacing required for 3500, 4000, 4500, 5000, 5500, 6000, 8000 lumen models
- Marked Spacing Center to Center of Adjacent Luminaires = 36”
- Center of Luminaire to Building Member = 18”
- Minimum overhead = 0.5
- Emergency battery backup options are Non-IC only.
- Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013
- Airtight per ASTM-E283-04
- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
- EMI/RFI emissions FCC CFR Title 47 Part 15 Class A 120/277V
- Contains no mercury or lead and RoHS compliant
- Photometric testing in accordance with IES LM-79-08
- Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
- 500, 750, 1000, 1500 lumen 90CRI IC rated model may be used to comply with State of California Title 24 residential code, per JA8 certification standards
- May be used to comply with State of California Title 24 non-residential code, in Non-IC, as a dimmable LED luminaire
- ENERGY STAR certified, refer to certified light fixtures database
- Five year limited warranty
