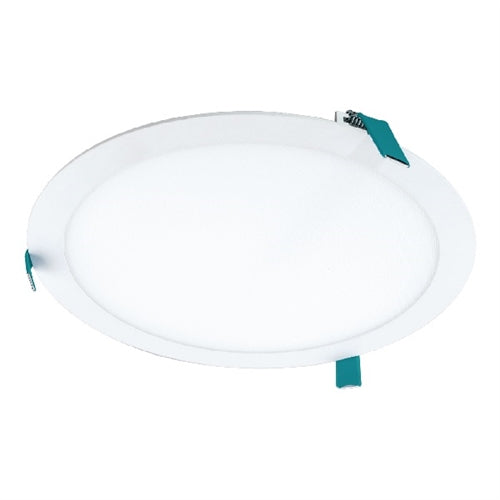

Halo Recessed HLB12LS9FSE010MWR 12" LED Lens Downlight with Remote Driver / Junction Box, Lumen Selectable 1300, 1900, 2300 Lumens, 90 CRI, Field Selectable 2700K, 3000K, 3500K, 4000K or 5000K, Color Temperature, 120-277V, Matte White Flange
Halo Recessed HLB12LS9FSE010MWR 12" LED Lens Downlight with Remote Driver / Junction Box, Lumen Selectable 1300, 1900, 2300 Lumens, 90 CRI, Field Selectable 2700K, 3000K, 3500K, 4000K or 5000K, Color Temperature, 120-277V, Matte White Flange
Regular price
Price:
$73.70
Regular price
Price:
Sale price
$73.70
Unit price
per
MODEL: Halo-HLB12LS9FSE010MWR
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
Housing
Housing
- Die cast aluminum mounting frame with integral flange provides passive thermal cooling achieving L70 at 50,000 hours in IC and non-IC applications
- Optional overlays with designer finishes provide design options, matte white is field paintable to match any décor
- High impact diffuse lens provides shielding to the light guide minimizing pixilation
- Closed cell gasket achieves restrictive airflow and wet location listing without additional gaskets or caulking
- Precision acrylic light guide organizes source flux into wide distribution with 1.4 spacing criteria, useful for general area illumination
- Plurality of mid power LED’s provides a uniform source with high efficiency and long life
- Available in 90 CRI minimum, R9 greater than 50 and color accuracy within 4 SDCM providing color uniformity
- Field selectable color temperature, select 2700K, 3000K, 3500K, 4000K or 5000K CCT
- Field selectable lumen levels of 1400, 1900 or 2400.
- Meets ENERGY STAR color angular uniformity requirements, deviation is less than 0.006 u' v'
- Steel driver/junction box with captive hinged junction box cover
- Listed for (6) #12 AWG 90 degree C splice conductors
- (2) 1/2" conduit pry-outs
- (2) Slide-N-Side non-metallic (NM) wire traps allows wiring outside the box
- Accepts 14-2, 14-3, 12-2, 12-3 U.S. and 14-2, 14-3, 12-2 Canadian NM cable
- (3) 4-port push wire nuts with clear caps for quick and reliable mains voltage connections
- Integral keyhole mounting slots facilitate direct mounting to building structure or new construction mounting frame
- 120V/277V 50/60 Hz constant current driver provides noise free operation
- Continuous, flicker-free dimming from 100% to 5% with select 0-10V dimmers
- Plenum rated inline electrical quick connect provides low voltage connection to fixture fitting
- Optional extension cables allow remote mounting
- Can be installed in 1/2" to 1-1/4" thick ceilings
- Cutout utilizes standard round hole saw sizes, cutout template provided
- Heat treated springs hold fixture fitting securely in the ceiling eliminating light leaks
- Light source is less than 1/2" thick and can span a 2" nominal framing member
- Can be removed from below the ceiling for service or replacement
- Pre-galvanized steel mounting frame locates fixture fittings during electrical rough in and provides cutout guidance for drywall contractor
- Provides tool-less attachment of remote driver / junction box
- cULus certified type IC suitable for direct contact with air permeable insulation
- Not recommended for use in direct contact with spray foam insulation, reference NEMA LSD57-2013
- Wet location listed and IP65 ingress protection
- Airtight per ASTM-E283-04
- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
- EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
- Contains no mercury or lead and RoHS compliant
- Photometric testing in accordance with IES LM-79-08
- Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
- Can be used for State of California Title 24 high efficacy LED compliance under JA8, reference Modernized Appliance Efficiency Database System (MAEDBS) for 2019 JA8 High Efficacy Lighting
- ENERGY STAR certified, reference "Certified Light Fixtures" database
- Five-year limited warranty
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
