Home > Halo Lighting > Halo Recessed HLB6LSFS5 6" Round Slim Canless LED Downlight, Selectable 800/1000/1200 Lumens, 90 CRI, Field-Selectable CCT 2700/3000/3500/4000/5000K, 5% Phase Cut LE/TE Dimming, 120V 60Hz, Matte White

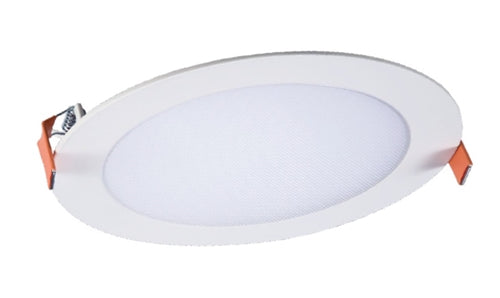

Halo Recessed HLB6LSFS5 6" Round Slim Canless LED Downlight, Selectable 800/1000/1200 Lumens, 90 CRI, Field-Selectable CCT 2700/3000/3500/4000/5000K, 5% Phase Cut LE/TE Dimming, 120V 60Hz, Matte White
Halo Recessed HLB6LSFS5 6" Round Slim Canless LED Downlight, Selectable 800/1000/1200 Lumens, 90 CRI, Field-Selectable CCT 2700/3000/3500/4000/5000K, 5% Phase Cut LE/TE Dimming, 120V 60Hz, Matte White
Regular price
Price:
$30.31
Regular price
Price:
Sale price
$30.31
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
Selectable System
Selectable System
- Use the 5-color selector switch to choose between: 2700K, 3000K, 3500K, 4000K, and 5000K
- Use Lumen Select switch to choose the brightness level (low-medium-high)
Module -- Trim
- Module construction includes LED array, heat sink, reflector, prismatic lens, and die-cast aluminum trim ring
- Heat sink designed to conduct heat away from the LED array, keeping the junction temperatures below specified maximums, even when installed in insulated ceiling environments
LED Array
- Mid power LED array provides a uniform source with high efficiency and no pixilation
- 90 CRI minimum, R9 greater than 50
- Color accuracy at 3 SDCM at the end points and 4SDCM in the middle, provide excellent color quality and uniformity
Optical Assembly
- Precision acrylic light guide organizes source flux into wide distribution with 1.4 spacing criteria, useful for general area illumination
Driver
- Integral 120V 60 Hz constant current driver provides noise free operation
- Continuous, flicker-free phase cut (leading-edge/ trailing-edge - LE/TE) dimming from 100% to 5% output with compatible dimmers
- See this fixture’s Dimming Guide for compatible dimmers. www.cooperlighting.com
Retention
- No additional housing or junction box required (Not for installation in recessed cans)
- The included remote driver / junction box may be used in direct contact with insulation
- Installer must cut hole and install fixture into aperture with the clips compressed
- When released, the spring clips will rest on the back side of the ceiling material holding the fixture in place
- For new construction applications, use HALO Canless Mounting Frames or Smash Plates prior to drywall installation
Gasket
- Closed cell gaskets achieve restrictive airflow requirements without additional caulking
Compliance
- UL Certified US and Canada Type IC suitable for direct contact with air permeable insulation
- Not recommended for use in direct contact with spray foam insulation, reference NEMA LSD57-2013
- Wet location listed and IP44 ingress protection
- Airtight per ASTM-E283-04
- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
- EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
- Contains no mercury or lead and RoHS compliant 1
- Photometric testing in accordance with IES LM-79-08
- Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
- Can be used for State of California Title 24 high efficacy luminaire compliance. Complies with Title 24 JA8-2022-E. 1
- Can be used International Energy Conservation Code (IECC) high efficiency luminaire compliance.
- ENERGY STAR® certified, reference "Certified Light Fixtures" database
Warranty
- Five year limited warranty
Download PDF Specification Share your knowledge of this product. Be the first to write a review »
