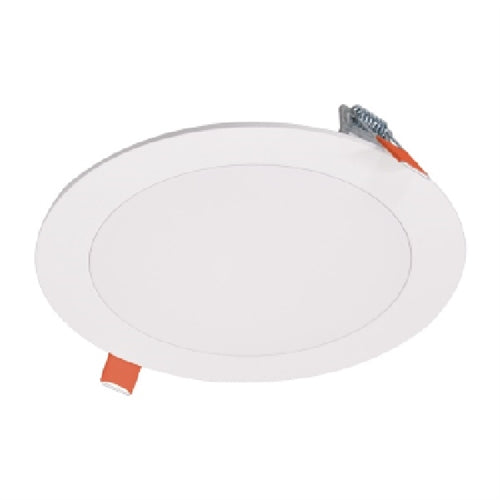

Halo Recessed HLBSL6099FS351EMWR 6" Round LED Lens Downlight with Remote Driver/ Junction Box, 900 Lumens, 90 CRI, Field Selectable 3000K, 4000K, 5000K, 120V, Matte White Flange Finish
Halo Recessed HLBSL6099FS351EMWR 6" Round LED Lens Downlight with Remote Driver/ Junction Box, 900 Lumens, 90 CRI, Field Selectable 3000K, 4000K, 5000K, 120V, Matte White Flange Finish
Regular price
Price:
$16.75
Regular price
Price:
Sale price
$16.75
Unit price
per
MODEL: Halo-HLBSL6099FS351EMWR
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT DESCRIPTION
Housing
Housing
- Plastic mounting frame with integral flange provides passive thermal cooling achieving L70 at 35,000 hours in IC and non-IC applications
- Precision acrylic light guide organizes source flux into wide distribution with 1.28 spacing criteria, useful for general area illumination
- Plurality of mid power LEDs provides a uniform source with high efficiency and long life
- Available in 90 CRI minimum, R9 greater than 50 provides high color rendering
- Field Selectable color temperature (3 colors)
- 2700K, 3000K, 3500K
- 3000K, 4000K, 5000K
- 4000K, 5000K, 6000K
- Color accuracy of 4 step at the ends, 7 step in the middle
- Meets ENERGY STAR color angular uniformity requirements, deviation is less than 0.006 u' v'
- Die formed metal driver / junction box with captive hinged junction box cover
- Listed for (6) #12 AWG 90 degree C splice conductors, 2-in, 2-out plus (2) ground
- (4)½" conduit pry-outs
- Accepts 14-2, 14-3, 12-2, 12-3 U.S. and 14-2, 14-3, 12-2 Canadian NM cable
- (3) wire nuts for quick and reliable mains voltage connections
- Integral mounting facilitates direct mounting to building structure or mounting frame
- 120V 60 Hz constant current driver provides noise free operation
- Continuous, flicker-free dimming from 100% to 10% with select leading or trailing edge 120V phase cut dimmers
- Can be installed in 3/8" to 5/8" thick ceilings
- Round ceiling cutout
- Heat treated springs hold fixture fitting securely in the ceiling eliminating light leaks
- Housing is less than 1/2" thick and can span a 2" nominal framing member
- Can be removed from below the ceiling for service or replacement
- cULus certified type IC suitable for direct contact with air permeable insulation
- Not recommended for use in direct contact with spray foam insulation, reference NEMA LSD57-2013
- Wet location listed and IP44 ingress protection
- Airtight per ASTM-E283-04
- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
- EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
- Contains no mercury or lead and RoHS compliant
- Photometric testing in accordance with IES LM-79-08
- Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
- Can be used for State of California Title 24 high efficacy LED compliance under JA8, reference Modernized Appliance Efficiency Database System (MAEDBS) for 2019 JA8 High Efficacy Lighting
- ENERGY STAR certified, reference "Certified Light Fixtures" database
- Five year warranty standard.
