Home > Halo Lighting > Halo Recessed HLBT609FS5 6" Slim Recessed LED Trim, 995 Lumens, 90 CRI, Field Selectable CCT 2700K/3000K/3500K/4000K/5000K, 120V 60Hz, LE & TE Phase Cut 100-5% Dimming, Matte White
Halo Recessed HLBT609FS5 6" Slim Recessed LED Trim, 995 Lumens, 90 CRI, Field Selectable CCT 2700K/3000K/3500K/4000K/5000K, 120V 60Hz, LE & TE Phase Cut 100-5% Dimming, Matte White
Halo Recessed HLBT609FS5 6" Slim Recessed LED Trim, 995 Lumens, 90 CRI, Field Selectable CCT 2700K/3000K/3500K/4000K/5000K, 120V 60Hz, LE & TE Phase Cut 100-5% Dimming, Matte White
Regular price
Price:
$16.64
Regular price
Price:
Sale price
$16.64
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
Module
Module

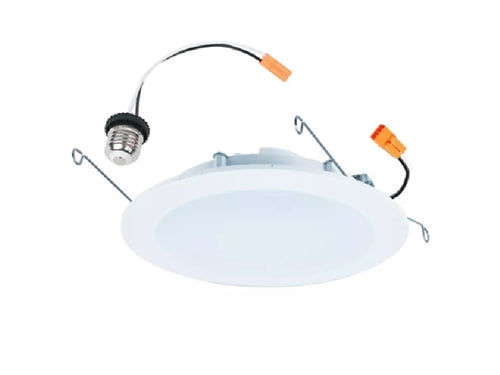

- The LED module consists of an LED array, optical assembly, driver, and self-flanged trim
- Achieves L70 at 50,000 hrs in IC (insulation contact) and non-IC applications
- Use the CCT select switch to choose between 2700K, 3000K, 3500K, 4000K, and 5000K CCT
- Factory default color temperature (CCT) is set to bright white (3000K)
- Mid-power LED array provides a uniform light source with high efficiency and no pixilation
- 90+ CRI minimum, R9 greater than 50
- Color accuracy at 4SCDM at the endpoints and 6 SCDM in the middle provides color consistency and uniformity
- Integral 120V 60Hz constant current driver provides noise-free, high-efficiency operation
- Dimmable: Continuous, flicker-free dimming from 100% to 5% with compatible leading or trailing edge (LE/TE) 120V phase cut dimmers; (See Dimming Guide for compatible dimmers.)
- Tip: For optimal dimming performance, consider dimmers with low-end trim adjustment; Note that some dimmers require a neutral wire in the box.
- Wiring: Includes inline electrical orange LED Quick Connect and E26 medium socket adapter to provide mains connection
- Preinstalled steel torsion springs hold the module securely in the housing (requires torsion spring receivers)
- If installing in a housing that does not have torsion spring receivers, order the Retrofit Adapter Band and install in housing prior to fixture installation.
- The one-piece step self-flanged round trim ring provides reduced light leaks
- Injection-molded plastic construction is impactresistant and non-corrosive
- Non-conductive construction meets most local dead-front code requirements
- Closed-cell gasket achieves restrictive airflow requirements without additional caulking Designer Overlays (sold separately)
- Overlays are accessory trims that attach to the fixture for a decorative finish
- Installs from below the ceiling to compatible 6" recessed housings with preinstalled steel torsion springs
- Not for use in recessed housings in direct contact with spray foam insulation refer to NEMA LSD 57-2013
- The included LED connector, and E26 medium socket adapter provide easy mounting to recessed housings
- Reference installation instructions for complete mounting step
- cULus certified for US and Canada
- Wet location-listed
- Airtight per ASTM-E283
- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
- EMI/RFI emissions per FCC 47CFR Part 15 Class B consumer limits
- Contains no mercury or lead and RoHS compliant1
- Photometric testing in accordance with IES LM-79-08
- Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
- ENERGY STAR certified, reference Certified Light Fixtures database
- Certified to State of California Title 20, State regulated LED Lamp; reference Modernized Appliance Efficiency Database System (MAEDBS) for State-regulate d LED Lamp
- Can be used for State of California Title 24 high efficacy LED compliance under JA81, reference Modernized Appliance Efficiency Database System (MAEDBS) for 2022 JA8 High Efficacy Lighting
- Five year limited warranty
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
